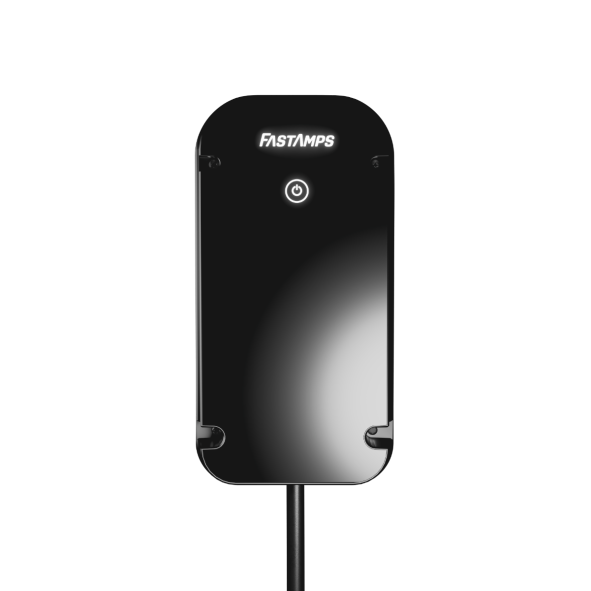

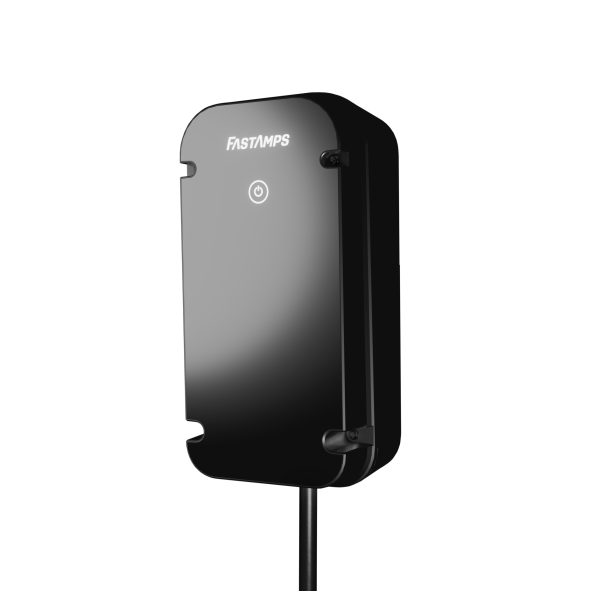

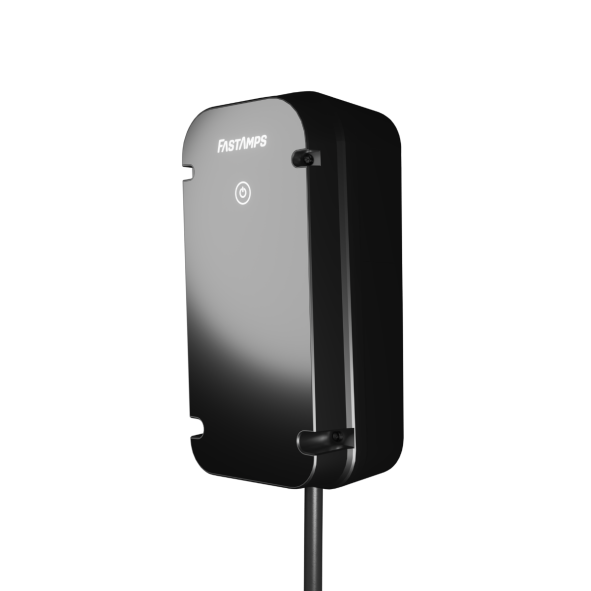

FastAmps Alpha7 Gen4 EV Charger 7.4kW (32A) Tethered 5m Cable – Black

The FastAmps Alpha7 Gen4 Tethered EV Charger is a powerful and dependable charging solution designed for both residential and commercial installations. Featuring a fixed 5-metre Type 2 charging cable, this 7.4kW (32A) unit offers convenient and efficient electric vehicle charging without the need for a separate cable.

Engineered for durability and performance, the Alpha7 is suitable for indoor and outdoor use, making it ideal for homes, workplaces, and car parks. Its compact, robust construction ensures long-lasting reliability in a wide range of environments.

Key Features

• 7.4kW (32A) single-phase EV charger
• Tethered unit with 5m Type 2 charging cable
• Suitable for indoor and outdoor installation
• Integrated 30mA AC and 6mA DC earth leakage protection
• Built-in PEN fault detection for enhanced electrical safety
• Dynamic internal over-current protection
• LED charging status indicator
• Low standby power consumption (~2.7W)
• IP54 rated enclosure – UV stabilised, fire retardant, impact and corrosion resistant

Technical Specifications

• Power Output: 7.4kW
• Voltage: 220–240V AC
• Frequency: 50/60Hz
• Current Rating: 32A
• Operating Temperature: -30°C to +50°C
• Connector Type: Type 2 (EN62196)
• Cable Length: 5 metres
• Dimensions: 270mm (H) x 140mm (W) x 110mm (D)
• Weight: 1.1kg
• Ingress Protection: IP54

Certifications

• UKCA & CE certified
• Compliant with EN 61851-1 and EN 61439-1 & 7
• EN62196-1 & 2 compliant
• EN 62955 certified

Downloads

Quick Start Guide

Installation Manual
