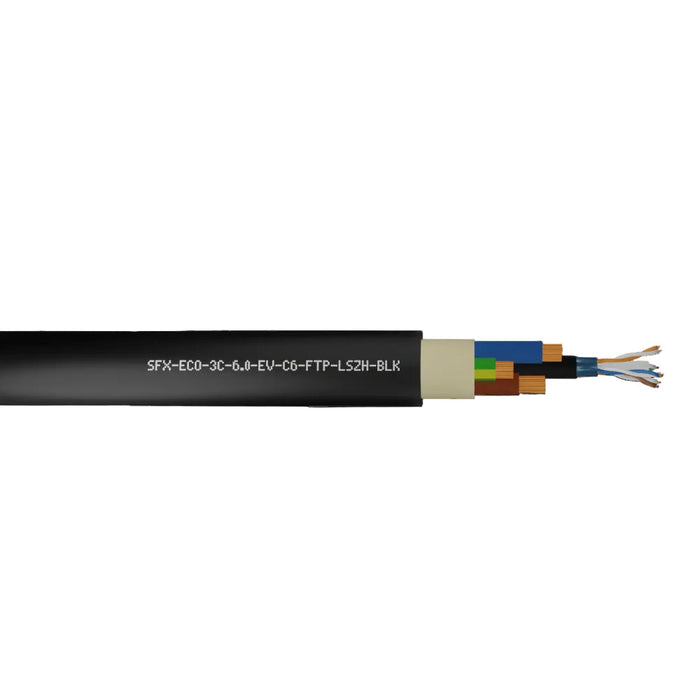

EV Charging 6.0mm² 3-Core LSZH Power + CAT6 FTP LSZH UV Black Cable – Cut to Length Per Metre

Product Description

The EV Eco-Flex 6.0mm² 3-Core Power + CAT6 FTP Cable is a combined EV charging and data cable designed for reliable electric vehicle charging installations. Supplied cut to length and sold per metre, it combines three 6.0mm² power conductors with a CAT6 FTP data cable in a single durable black LSZH outer jacket.

Designed to simplify EV charger installations, the combined construction provides both power and data connectivity within one cable, helping to reduce the need for separate cable runs. The CAT6 FTP element features solid bare copper conductors for dependable data transmission, while the 3-core power section uses stranded bare copper conductors.

The robust LSZH (Low Smoke Zero Halogen) black outer jacket provides a practical solution for demanding installations and offers a rated operating temperature range from -15°C to +75°C. With a nominal voltage rating of 450/750V, the cable is suitable for a wide range of EV charging applications where integrated power and communications are required.

The Eco-Flex range is tested by BASEC for nominal voltage rating in accordance with BS EN 50620:2017+A1:2019, while the MOD-Bus range is classified by BASEC for CPR compliance.

Key Features & Benefits

• Combined 3-core 6.0mm² power and CAT6 FTP data cable for EV charging installations.
• Power and communications contained within a single cable for a neater installation.
• Supplied cut to length and sold per 1 metre.
• LSZH (Low Smoke Zero Halogen) black outer jacket.
• CAT6 FTP construction with solid bare copper conductors.
• 3-core power construction with stranded bare copper conductors.
• 450/750V rated voltage.
• Operating temperature range from -15°C to +75°C.
• CPR classification: Eca.
• Overall cable diameter of approximately 17.0 ±2.0mm.
• Black outer finish suitable for discreet EV charging cable installations.

Specifications

• Cable Construction: 4 x 2 x 0.56mm CAT6 FTP + 3C x 6.0mm²
• CPR Classification: Eca
• CAT6 FTP Conductor: Solid bare copper, 0.56 ±0.02mm diameter
• Power Conductor: Stranded bare copper, 7 x 1.04 ±0.02mm
• CAT6 Insulation: HDPE, 1.12 ±0.05mm
• Power Insulation: XLPE, 4.5 ±0.1mm
• CAT6 Pair Colours: White/Blue & Blue; White/Orange & Orange; White/Green & Green; White/Brown & Brown
• Power Core Colours: Brown, Blue and Yellow/Green
• Jacket Material: LSZH
• Jacket Colour: Black
• Overall Diameter: 17.0 ±2.0mm
• HDPE Insulation Thickness: 0.26–0.28mm
• Jacket Thickness: 0.6 ±0.1mm / 1.1 ±0.2mm
• Maximum Conductor DC Resistance at 20°C – 3C x 6.0mm²: ≤3.08 Ω/1000m
• Maximum Conductor DC Resistance at 20°C – CAT6 FTP: ≤9.5 Ω/100m
• Rated Temperature: -15°C to +75°C
• Rated Voltage: 450/750V
• Capacitance: ≤5.6 nF/100m
• Sale Unit: Per metre / cut to length
