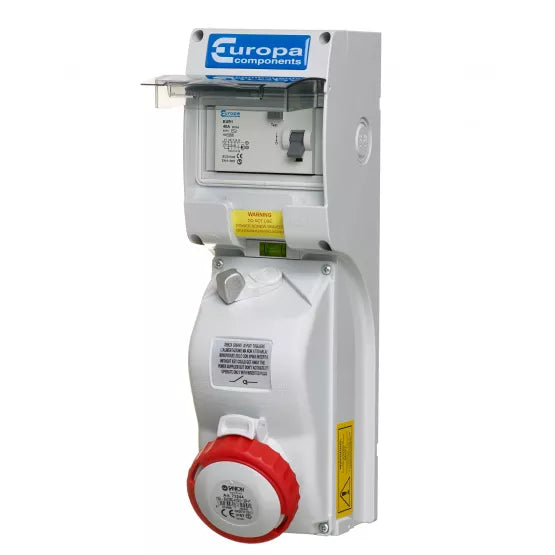

Europa SISRAW324V IP65 Switched Interlocked Socket with Type A RCCB 415V 3P+E 32A 6h

The Europa SISRAW324V is a heavy-duty 415V 32A switched interlocked socket designed for safe and dependable three-phase power distribution in industrial, commercial and construction environments. Supplied with a pre-fitted Type A 30mA RCCB, it provides reliable protection against earth leakage faults while helping to safeguard both users and connected equipment.

Manufactured from self-extinguishing, shock-resistant thermoplastic, this compact interlocked socket features an IP65-rated enclosure and is compatible with IP67 industrial plugs. Four cable entry points, corrosion-resistant Inox screws and an integrated spirit level allow for quick, accurate and straightforward installation.

Key Features

• 415V 32A switched interlocked industrial socket
• 3P+E (3 Pole + Earth) configuration
• 6h earth position
• Pre-fitted Type A 30mA RCCB for enhanced electrical protection
• IP65-rated enclosure suitable for indoor and outdoor use
• Compatible with IP67 industrial plugs
• Manufactured from self-extinguishing, shock-resistant thermoplastic
• Four cable entry points: M25 and M32 top, bottom and side entry
• Corrosion-resistant Inox screws provide excellent resistance to chemical agents
• Compact housing with integrated spirit level for easier installation
• Robust construction with a user-friendly design

Technical Specifications

• Brand: Europa
• Model: SISRAW324V
• Voltage: 415V
• Current Rating: 32A
• Configuration: 3P+E
• Earth Position: 6h
• Protection Rating: IP65
• Protection Device: Type A 30mA RCCB (pre-fitted)
• Material: Self-extinguishing, shock-resistant thermoplastic
• Cable Entries: M25 & M32 (top, bottom and side entry)
• Compatible Plug Type: IP67 industrial plugs

Data Sheet:

Click Here for Data Sheet
