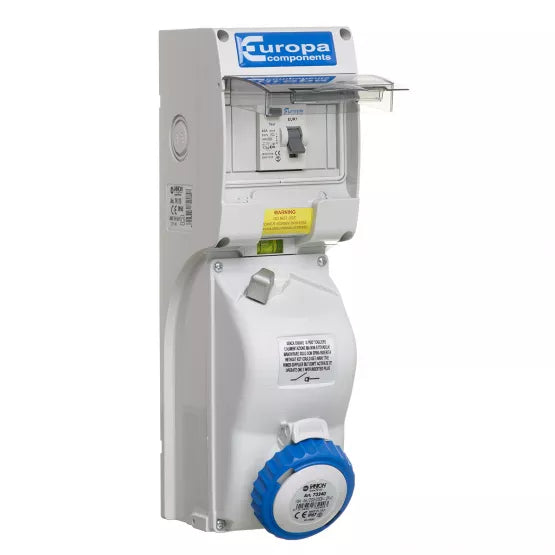

Europa SISRAW323P IP65 Switched Interlocked Socket with Type A RCD 230V 2P+E 32A 6h

The Europa SISRAW323P is a robust 230V 32A switched interlocked socket designed to provide safe and dependable power distribution in industrial, commercial and site applications. Fitted with a 2-pole 25A Type A 30mA RCD, it offers reliable protection against earth leakage faults, helping to safeguard both users and connected equipment.

Constructed from self-extinguishing, shock-resistant thermoplastic, this compact interlocked socket features an IP65-rated enclosure and is compatible with IP67 industrial plugs. Multiple cable entry options, corrosion-resistant Inox screws and an integrated spirit level ensure quick, accurate and hassle-free installation.

Key Features

• 230V 32A switched interlocked industrial socket
• 2P+E (2 Pole + Earth) configuration
• 6h earth position
• Pre-fitted 2-pole 25A Type A 30mA RCD for enhanced electrical protection
• IP65-rated enclosure suitable for indoor and outdoor installations
• Compatible with IP67 industrial plugs
• Manufactured from self-extinguishing, shock-resistant thermoplastic
• Four cable entry points: M25 and M32 top, bottom and side entry
• Inox stainless steel screws resist corrosion and chemical agents
• Compact housing with integrated spirit level for easier installation
• Durable, reliable and user-friendly design

Technical Specifications

• Brand: Europa
• Model: SISRAW323P
• Voltage: 230V
• Current Rating: 32A
• Configuration: 2P+E
• Earth Position: 6h
• Protection Rating: IP65
• RCD: 2 Pole, 25A, Type A, 30mA (pre-fitted)
• Material: Self-extinguishing, shock-resistant thermoplastic
• Cable Entries: M25 & M32 (top, bottom and side entry)
• Compatible Plug Type: IP67 industrial plugs

Data Sheet:

Click Here for Data Sheet
