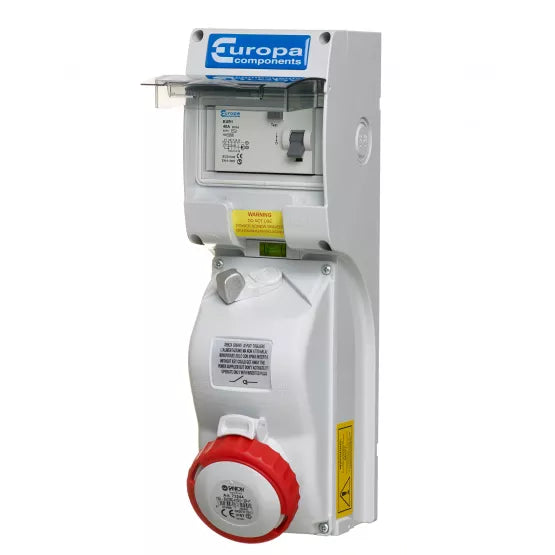

Europa SISRAW165V IP65 Switched Interlocked Socket with Type A RCCB 415V 3P+N+E 16A 6h

The Europa SISRAW165V is a robust 415V 16A switched interlocked socket designed for safe and reliable three-phase power distribution in industrial, commercial and construction environments. Fitted with a pre-installed Type A 30mA RCCB, it provides dependable protection against earth leakage faults, helping to safeguard both users and connected equipment.

Manufactured from self-extinguishing, shock-resistant thermoplastic, this compact interlocked socket features an IP65-rated enclosure and is compatible with IP67 industrial plugs. Four cable entry points, corrosion-resistant Inox screws and an integrated spirit level make installation quick, accurate and straightforward.

Key Features

• 415V 16A switched interlocked industrial socket
• 3P+N+E (3 Pole + Neutral + Earth) configuration
• 6h earth position
• Pre-fitted Type A 30mA RCCB for enhanced electrical protection
• IP65-rated enclosure suitable for indoor and outdoor applications
• Compatible with IP67 industrial plugs
• Manufactured from self-extinguishing, shock-resistant thermoplastic
• Four cable entry points: M25 and M32 top, bottom and side entry
• Corrosion-resistant Inox screws resist chemical agents
• Compact housing with integrated spirit level for easier installation
• Easy to install with a robust, user-friendly design

Technical Specifications

• Brand: Europa
• Model: SISRAW165V
• Voltage: 415V
• Current Rating: 16A
• Configuration: 3P+N+E (3 Pole + Neutral + Earth)
• Earth Position: 6h
• Protection Rating: IP65
• Protection Device: Type A 30mA RCCB (pre-fitted)
• Material: Self-extinguishing, shock-resistant thermoplastic
• Cable Entries: M25 & M32 (top, bottom and side entry)
• Compatible Plug Type: IP67 industrial plugs
