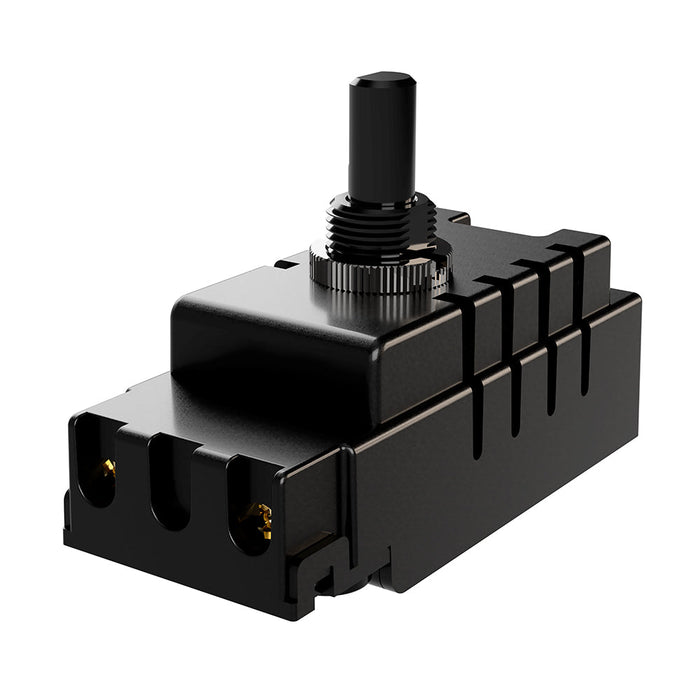

Enkin PDM250 250W LED Multi-Way Intelligent Dimmer Module

The Enkin PDM250 250W LED Multi-Way Intelligent Dimmer Module delivers advanced lighting control with innovative multi-way dimming technology. Designed without the need for a traditional master/slave configuration, this intelligent dimmer allows seamless control of your lighting from multiple locations within a room.

Unlike standard systems, the PDM250 enables true multi-way dimming when used alongside other PDM250 modules, offering flexible installation and enhanced user convenience. Ideal for both residential and commercial environments, it ensures smooth, responsive lighting control across multiple switch points.

Engineered with silent, flicker-free performance and a soft start function, this dimmer helps extend lamp life while providing a comfortable lighting experience. Built-in safety features, including short circuit and over-current protection, ensure reliable and secure operation.

Key Features

• 250W LED intelligent dimmer module with true multi-way functionality
• No master/slave system required for multi-way dimming
• Supports up to 15 dimmer switches in a single circuit
• Compatible with other Enkin PDM250 modules for multi-point control
• Trailing edge phase control for smooth dimming performance
• Silent and flicker-free operation
• Soft start feature to protect connected lamps
• Integrated short circuit and over-current protection
• Suitable for LED and incandescent (GLS) lighting loads
• Complies with BS EN 60669-2-1 standards
• Backed by a 5-year manufacturer’s guarantee

Technical Specifications

• Model: PDM250
• Input Voltage: 240V ~ 50Hz
• Operating Voltage: 240V AC, 50Hz
• Load Range (LED): 2W – 250W
• Load Range (GLS/Incandescent): 2W – 250W
• Dimming Type: Trailing edge phase control
• Multi-Way Capacity: Up to 15 dimmer modules

The Enkin PDM250 is the ideal solution for those seeking a high-quality multi-way LED dimmer module with advanced functionality, flexible installation and dependable performance.

Data Sheet:
Click Here for Data Sheet

Instruction Manual:
Click Here for Instruction Manual
