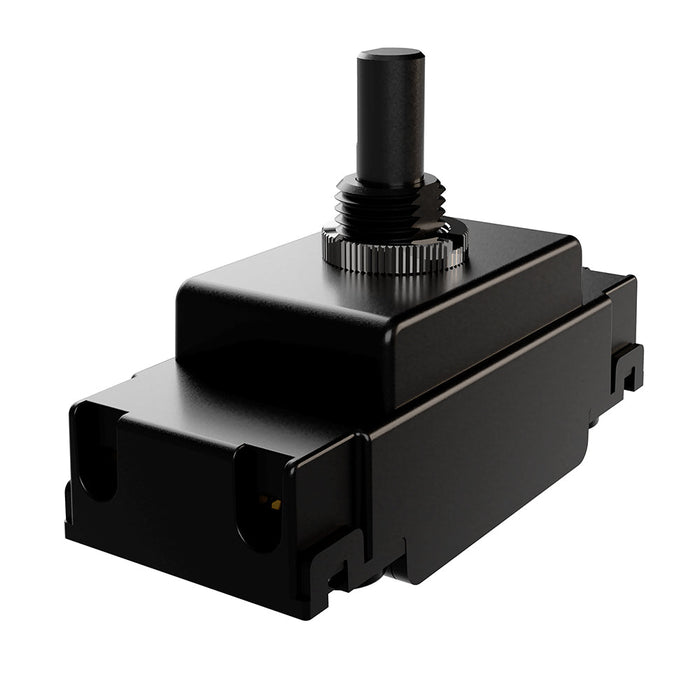

Enkin PDM020 1000W 1–10V DC LED 2-Way Dimmer Module

The Enkin PDM020 1–10V DC LED 2-Way Dimmer Module is a high-capacity, professional-grade dimming solution designed for commercial and specialist lighting applications. Engineered for use with DC-controlled LED drivers, this robust module provides precise and reliable control over lighting levels in demanding environments.

With support for 1–10V dimming protocols, the PDM020 allows smooth adjustment from 1% to 100%, giving you full control over ambient lighting. Its 2-way switching capability makes it ideal for installations requiring control from multiple locations, such as offices, retail spaces and large residential projects.

Featuring Enkin’s advanced silent, flicker-free technology and an integrated soft start function, this dimmer helps extend the lifespan of connected LED systems while ensuring consistent, comfortable illumination.

Key Features

• High-capacity 1000W 1–10V DC LED dimmer module
• Designed for commercial and specialist lighting systems
• Compatible with DC-controlled LED drivers
• 2-way dimming capability for multi-point control
• Smooth dimming range from 1% to 100%
• Silent, flicker-free performance
• Soft start feature to protect LED fittings
• Integrated short circuit protection
• Built-in over-current protection for enhanced safety
• Reliable and durable design for demanding applications
• Backed by a 5-year manufacturer’s guarantee

Technical Specifications

• Model: PDM020
• Operating Voltage: 220–240V ~ 50Hz
• Control Output: 1–10V DC
• Dimming Range: 1% – 100%
• Maximum Load: 1000W
• Minimum Load: Not applicable
• Control Type: 2-way dimming

The Enkin PDM020 is the ideal solution for those requiring a dependable 1–10V LED dimmer module, offering precision control, high load capacity and long-lasting performance in commercial lighting systems.

Data Sheet:
Click Here for Data Sheet

Instruction Manual:
Click Here for Instruction Manual
