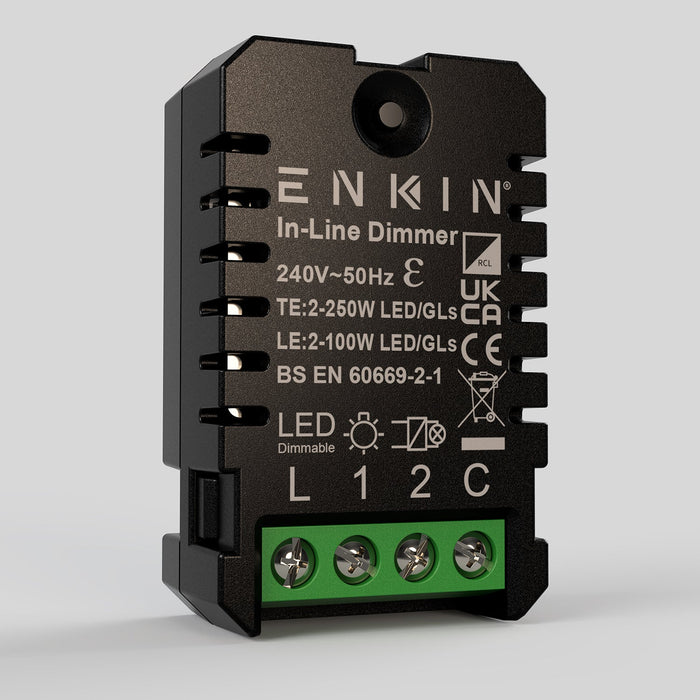

Enkin IDM250 250W LED In-Line Multi-Way Dimmer Module

The Enkin IDM250 250W LED In-Line Multi-Way Dimmer Module is a compact and versatile dimming solution designed to provide smooth multi-point lighting control. It allows you to convert a retractive switch or toggle switch into an intelligent dimming system with a neutral position, making it ideal for modern domestic and commercial lighting installations.

With a simple press, you can switch your lighting on or off, while holding the connected retractive switch lets you raise or lower the brightness level with ease. The module supports multi-way dimming, allowing convenient control of the same lighting circuit from multiple switch points.

Designed with silent, flicker-free performance, the Enkin IDM250 helps deliver reliable and comfortable lighting control for LED, incandescent and halogen loads. Its compact form factor is suitable for fitting into an architrave back box, making installation neat and space-efficient.

Key Features

• 250W LED in-line dimmer module for multi-way dimming applications
• Compatible with retractive switches for on, off and dimming control
• Supports both trailing edge and leading edge dimming
• No neutral required for easier installation
• Silent and flicker-free operation for smooth performance
• Soft start function to help protect connected lamps
• Self-recovering thermal fuse for added safety
• Short circuit and overload protection built in
• Easy push-button setup
• Compact design fits into an architrave back box
• Suitable for LED, incandescent and halogen lighting loads
• Backed by a 5-year guarantee

Technical Specifications

• Model: IDM250
• Operating Voltage: 220–240V ~ 50Hz
• Minimum Load: 2W LED (2W incandescent/halogen)
• Maximum Load: 250W LED (250W incandescent/halogen)
• Dimming Type: Trailing edge / leading edge
• Neutral Required: No

The Enkin IDM250 is an excellent choice for installers and homeowners seeking a dependable LED dimmer module with flexible switching options, advanced protection features and high-quality dimming performance.

Data Sheet:
Click Here for Data Sheet

Instruction Manual:
Click Here for Instruction Manual
