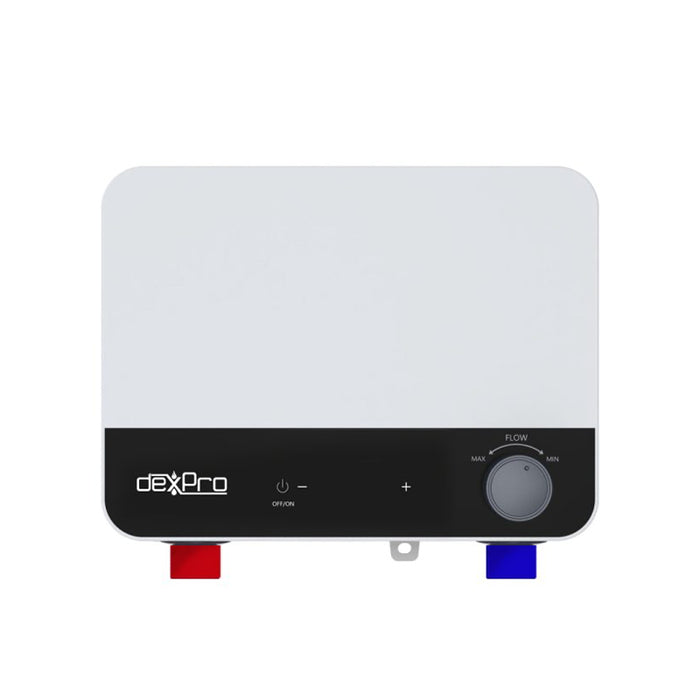

DexPro DXI75DT Digital Inline Instant Water Heater 7.5kW - Digital Control

Product Description

The DexPro DXI75DT 7.5kW Digital Inline Instant Water Heater provides fast, efficient point-of-use hot water without requiring a storage tank. Its compact design makes it ideal where installation space is limited, particularly for hand washing applications in offices, shops, factories, schools, universities, hospitals and modular buildings.

Featuring a high-efficiency cast aluminium heating element, the DXI75DT heats water instantly as it flows through the unit. A digital temperature display and accurate touch controls allow convenient adjustment and monitoring of the water temperature.

The achievable outlet temperature depends on both the incoming water temperature and flow rate. A lower flow rate generally produces a greater temperature rise, while a higher flow rate results in cooler outlet water. For the 7.5kW model, a flow rate below approximately 4 litres per minute is recommended. Using a flow restrictor or spray head tap nozzle can help achieve the required performance and water temperature.

Seasonal changes in incoming mains water temperature should also be considered. In winter, incoming water may be around 10°C or lower, while during warmer months it can exceed 15°C. The final outlet temperature will therefore vary depending on the inlet temperature and water flow rate.

With 1/2 inch inlet and outlet connections, a pre-wired cable and compact dimensions of 210 x 160 x 50mm, the DXI75DT offers a practical and space-saving solution for instant hot water at the point of use.

Key Features

• 7.5kW inline instantaneous water heater
• Provides instant hot water without a storage tank
• Ideal for point-of-use hand washing applications
• High-efficiency cast aluminium heating element
• Digital temperature display
• Accurate digital touch temperature control
• Compact and space-saving design
• 1/2 inch inlet and outlet connections
• Recommended flow rate below approximately 4 litres per minute
• Recommended for use with a flow restrictor or spray head tap to help achieve the desired temperature
• Pre-wired cable for convenient installation

Technical Specifications

• Brand: DexPro
• Model: DXI75DT
• Product Type: Digital Inline Instant Water Heater
• Power Rating: 7.5kW
• Temperature Control: Digital touch control
• Display: Digital temperature display
• Heating Element: Cast aluminium
• Inlet Connection: 1/2 inch
• Outlet Connection: 1/2 inch
• Recommended Maximum Flow Rate: Below approximately 4 litres per minute
• Dimensions: 210 x 160 x 50mm
• Primary Application: Hand washing

Data Sheet

Download the DexPro DXI75DT Data Sheet

Instruction Manual

Download the DexPro DXI75DT Instruction Manual
