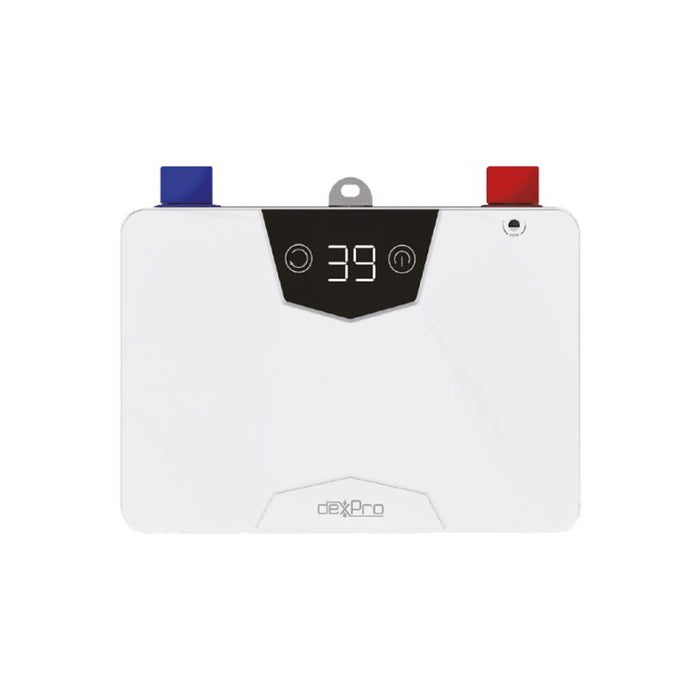

DexPro DXI55DT Delux Inline Instant Water Heater 5.5kW - Digital Control
Product Description
The DexPro DXI55DT Delux 5.5kW Inline Instant Water Heater provides convenient point-of-use hot water without the need for a storage tank. Its compact, space-saving design makes it ideal for hand washing applications in commercial environments such as offices, shops, factories, schools, universities, hospitals and modular buildings.
Equipped with a high-efficiency cast aluminium heating element, the DXI55DT heats water instantly as it passes through the unit. A clear digital temperature display combined with accurate touch controls provides convenient temperature adjustment and easy monitoring during use.
The achievable outlet water temperature depends on the incoming water temperature and flow rate. A lower flow rate generally provides a greater temperature rise, while increasing the flow will reduce the outlet temperature. For optimum performance, a flow rate below approximately 3 litres per minute is recommended for this 5.5kW model. A flow restrictor or spray head tap nozzle can also be used to help achieve the required water temperature.
Seasonal variations in mains water temperature should be considered when assessing performance. Incoming water can be around 10°C or lower during winter and above 15°C during warmer months, meaning the final outlet temperature will vary according to both inlet temperature and water flow.
Featuring 1/2 inch inlet and outlet connections, a pre-wired cable and compact dimensions of 210 x 160 x 50mm, the DXI55DT offers a practical instant hot water solution where installation space is limited.
Key Features
- 5.5kW inline instantaneous water heater
- Designed for point-of-use hand washing applications
- Provides instant hot water without a storage tank
- High-efficiency cast aluminium heating element
- Digital temperature display
- Accurate digital touch temperature control
- Compact and space-saving design
- 1/2 inch inlet and outlet connections
- Recommended flow rate below approximately 3 litres per minute
- Recommended for use with a flow restrictor or spray head tap to help achieve the desired water temperature
- Pre-wired cable for convenient installation
Technical Specifications
- Brand: DexPro
- Model: DXI55DT
- Range: Delux
- Product Type: Inline Instant Water Heater
- Power Rating: 5.5kW
- Temperature Control: Digital touch control
- Display: Digital temperature display
- Heating Element: Cast aluminium
- Inlet Connection: 1/2 inch
- Outlet Connection: 1/2 inch
- Recommended Maximum Flow Rate: Below approximately 3 litres per minute
- Dimensions: 210 x 160 x 50mm
- Primary Application: Hand washing
Data Sheet
Download the DexPro DXI55DT Data Sheet
Instruction Manual
