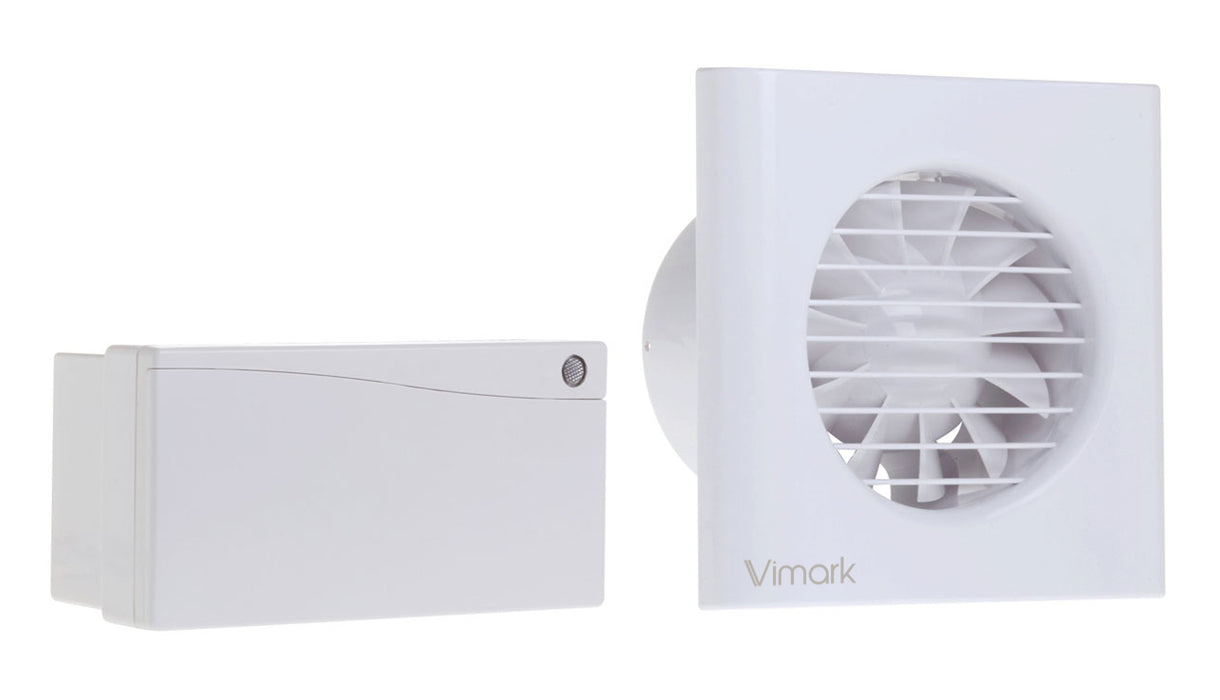

Deta Vimark 4616 4" (100mm) Low Voltage Axial Extractor Fan with Timer

The Deta Vimark 4616 extractor fan is a low voltage model designed for safe installation in high-moisture areas, including Zone 1 of bathrooms when connected to a 240V supply via a suitable transformer. Offering a slim, modern design, it provides quiet and efficient operation with an extraction rate of 24 litres per second (85m³/hour) and a low noise level of 28dB at 3m. This fan includes an adjustable overrun timer, user settable between 2 and 30 minutes, to continue ventilation after use and effectively reduce moisture build-up. Suitable for through-wall applications or short ducting runs under 2m, it features a one-shot thermal fuse for safety and an IP44 rating for moisture resistance. Fully compliant with BS EN 60335-2-80 and Building Regulations Approved Documents F & L1, the Deta 4616 is backed by a 3-year guarantee.

Key Features

• Slim, modern profile with quiet and efficient performance
• Extraction rate: 24 l/s (85m³/hour)
• Noise level: 28dB @ 3m
• Specific fan power: 0.34 W/l/s
• User-adjustable overrun timer (2–30 minutes)
• Suitable for Zone 1 bathroom installation on 240V supply
• Ideal for through-wall use or ducting runs under 2m
• Fitted with a one-shot thermal fuse for added safety
• IP44 rated for safe installation in moisture-prone areas
• Complies with BS EN 60335-2-80 safety standard
• Meets Building Regulations: Approved Documents F & L1
• Supplied with a 3-year manufacturer’s guarantee

Technical Documentation

Download the Deta Vimark 4616 Data Sheet (PDF)

Instruction Manual

Download the Deta Vimark 4616 Instruction Manual (PDF)
