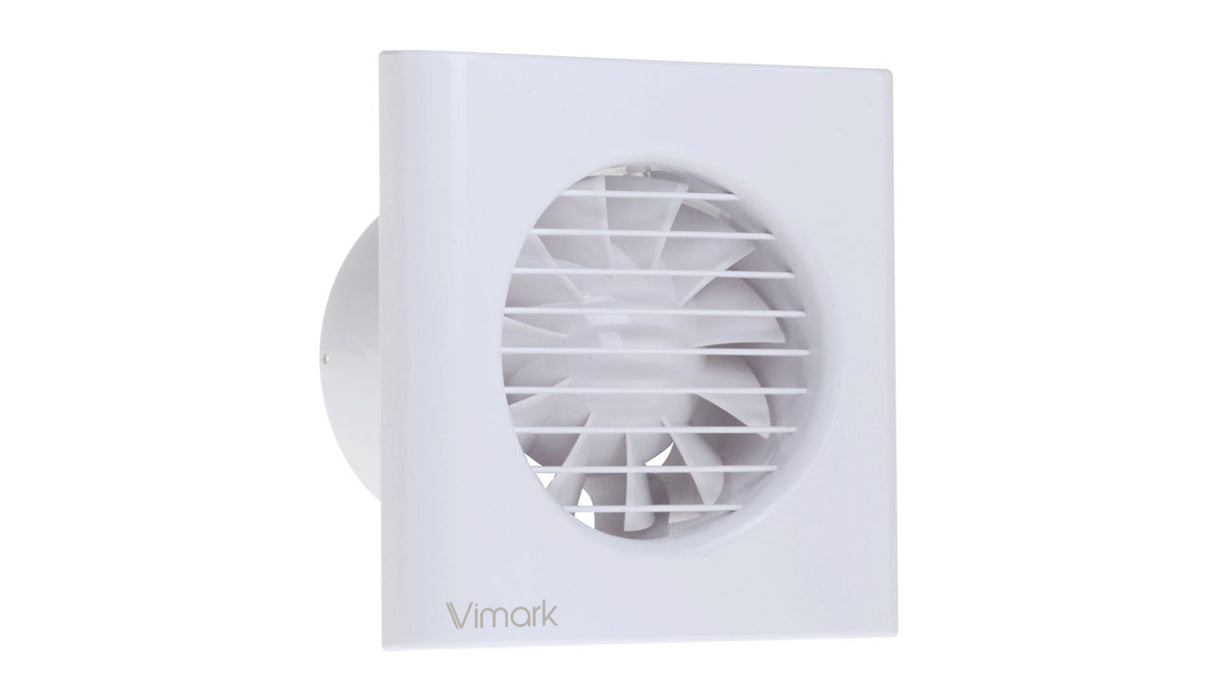

Deta Vimark 4601 4" (100mm) Axial Extractor Fan with Timer

The Deta Vimark 4601 extractor fan combines modern design with quiet, efficient performance, making it an excellent choice for bathrooms, cloakrooms, and utility areas. Delivering an extraction rate of 25 litres per second (90m³/hour) with a low noise output of 29dB at 3m, it provides effective ventilation without disturbance. This model includes an adjustable overrun timer, allowing the fan to continue running for 2 to 30 minutes after use for optimal moisture control. Suitable for through-wall installations or ducting runs under 2m, it is fitted with a one-shot thermal fuse for added safety. With an IP44 rating, it is suitable for use in moisture-prone areas and is fully compliant with BS EN 60335-2-80 and Building Regulations Approved Documents F & L1. Supplied with a 3-year guarantee for peace of mind.

Key Features

• Sleek, slimline design with quiet and efficient operation
• Extraction rate: 25 l/s (90m³/hour)
• Low noise level: 29dB @ 3m
• Specific fan power: 0.32 W/l/s
• Overrun timer – user adjustable between 2 and 30 minutes
• Ideal for through-wall applications or ducting runs under 2m
• IP44 rated for safe installation in bathrooms and moisture-prone areas
• One-shot thermal fuse for additional safety
• Complies with BS EN 60335-2-80 safety standard
• Meets Building Regulations Approved Documents F & L1
• Supplied with a 3-year manufacturer’s guarantee

Technical Documentation

Download the Deta Vimark 4601 Data Sheet (PDF)

Instruction Manual

Download the Deta Vimark 4601 Instruction Manual (PDF)
