BG Type 2 Surge Protection Wiring Kit c/w L, N&E, Bushbar & Shroud, SPD & 32A MCB

REPLACEMENT CODE FOR THIS ITEM: CUA30

Features of the Surge Protection Devices range
  • Devices have indicators to advise end of life of the device
  • No resetting of SPD required, the excess voltage is quickly taken to earth, before the rest of the circuits are damaged
  • The device meets the requirements of the IEC 61634-1 and EN 61643-11 standards
  • The SPD enclosure can be fitted next to any exiting or new consumer unit of any brand where surge protection is required

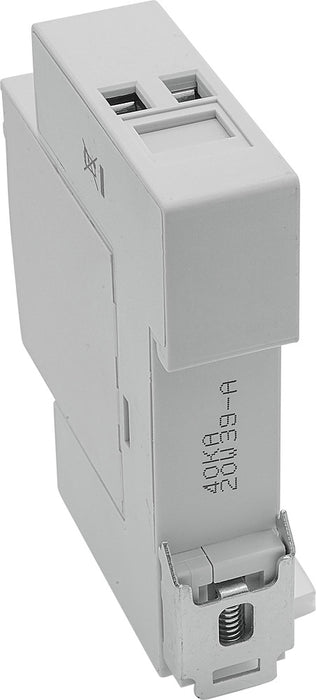

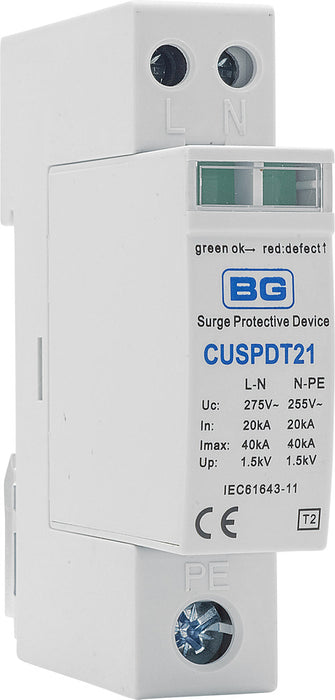

Type 2 Surge Protection Wiring Kit
This Type 2 Surge Protection Device provides superior protection against Transient overvoltages, by diverting the surge to earth within <25ns. And protecting all loads/circuits connected to the consumer unit.

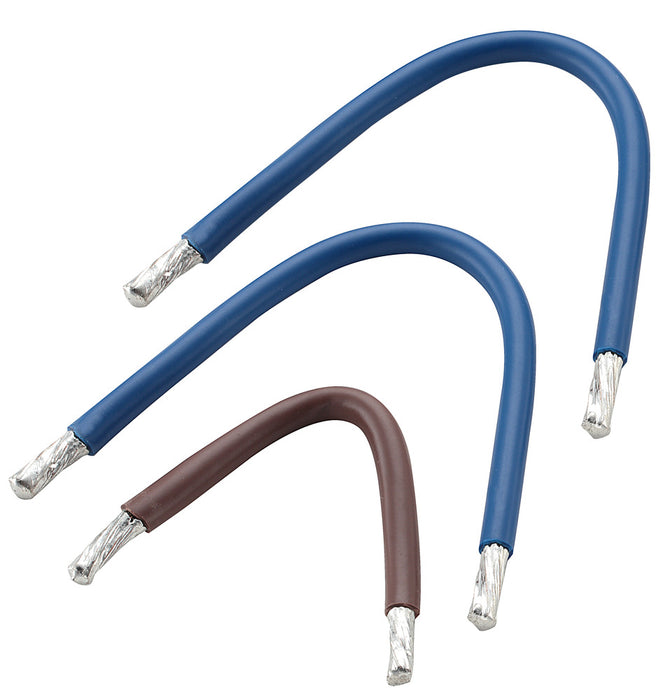

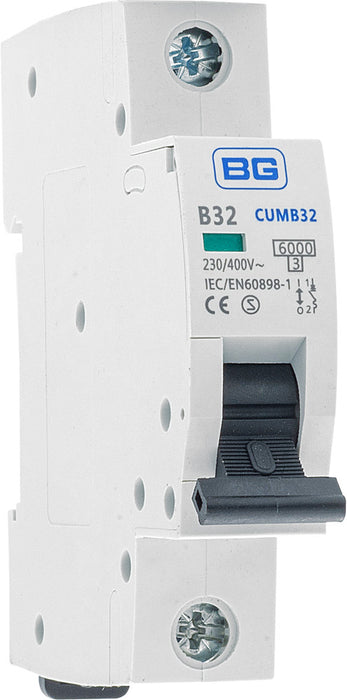

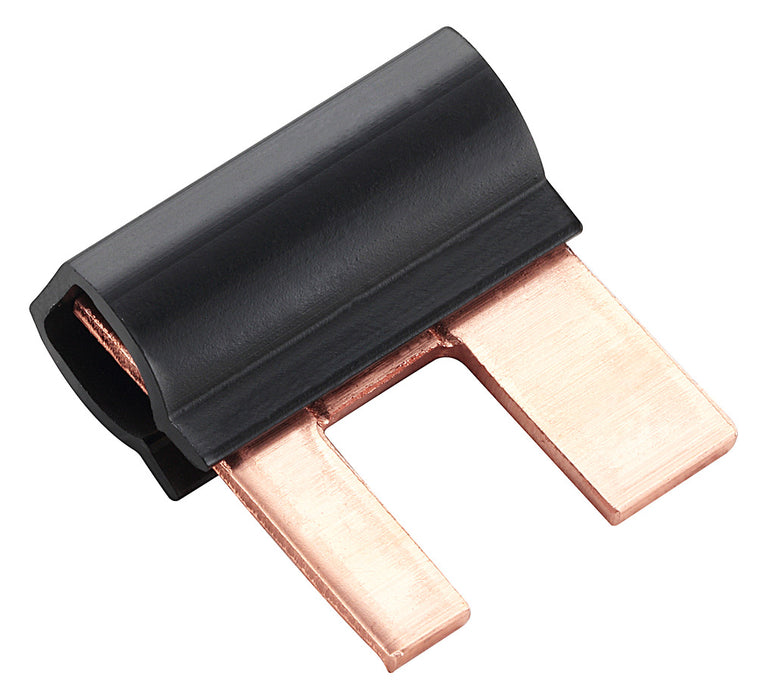

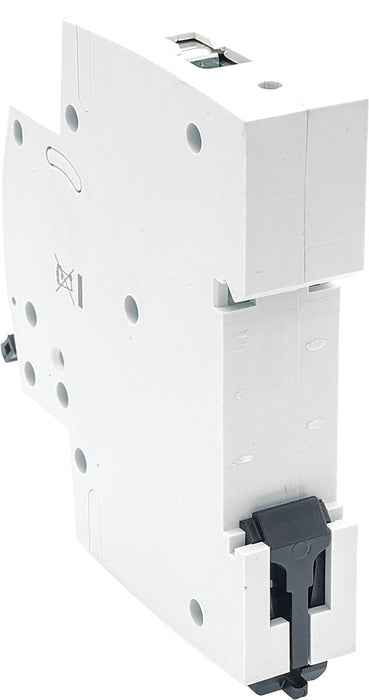

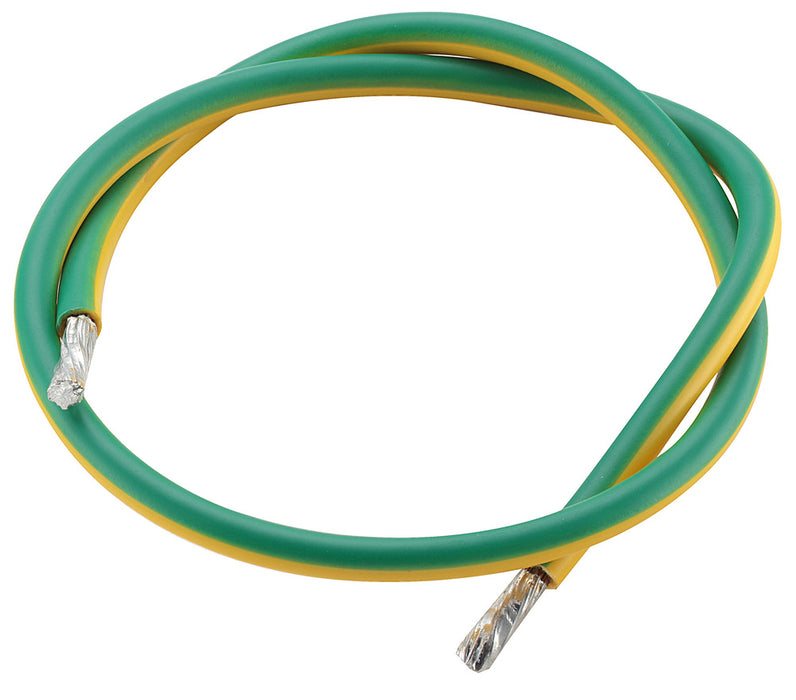

The kit comes complete with Live, Neutral & Earth wires, Busbar & shroud 1 x SPD 1 x 32A MCB

This item is SPD Wiring Kit

Features

  • Type 2 Single Phase Surge Device + 32A B Curve MCB
  • Fully compliant to BSEN61643-11, BSEN62305 & BS7671
  • Suitable for domestic/commercial installations
  • Space saving 1 module design
  • Minimum back-up MCB 32A B curve
  • Can be fitted on DIN rail directly into the consumer unit
  • Grey colour to match existing circuit protection devices
  • IP20 protection degree
  • Response time < 25ms

Data Sheet:

Click Here for Data Sheet

Surge Protection 18th Edition IET Wiring Regulations

Click Here for Surge Protection 18th Edition IET Wiring Regulations Sheet

Circuit Protection Range Leaflet:

Click Here for Circuit Protection Range Leaflet
