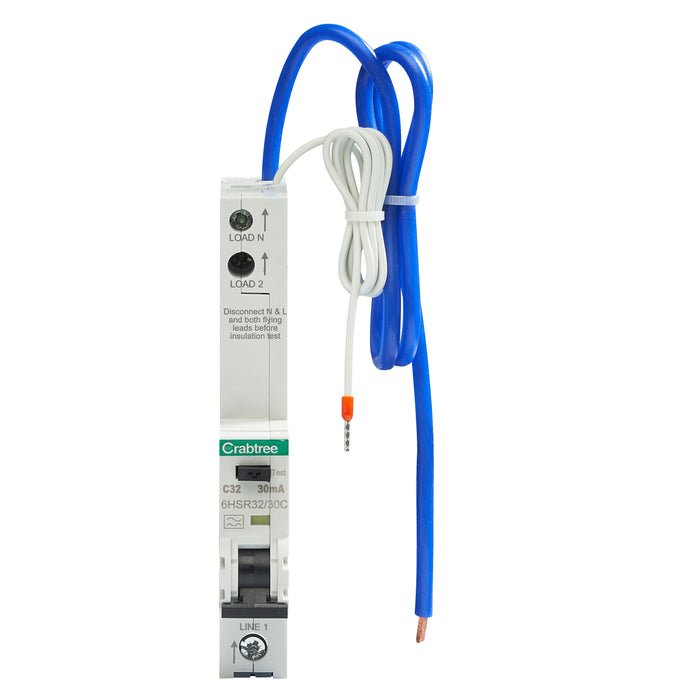

Crabtree 6HSR32/30C Loadstar 1 Module 32A C Curve 30mA 10kA 1P+N Type A RCBO
Crabtree 6HSR32/30C Loadstar 32A C Curve 30mA 10kA Type A RCBO
The Crabtree 6HSR32/30C Loadstar RCBO is a compact, single-module circuit protection device that combines MCB and RCD functionality into one unit. It provides reliable protection against overloads, short circuits, and earth leakage faults, helping to maintain safe and compliant electrical installations.
Featuring a 32A C curve tripping characteristic and 30mA Type A residual current protection, this RCBO is well suited to circuits with moderate to higher inrush currents, such as those supplying motors, inductive loads, or commercial equipment. A 10kA breaking capacity ensures robust fault protection in both domestic and commercial applications.
Key Features
- 32A C Curve MCB with 30mA Type A RCD protection
- Single-module width RCBO for compact installations
- 10kA short-circuit breaking capacity
- 1P+N configuration with switched neutral
- Uni-directional RCBO design
- Supplied with 600mm neutral and earth tails
- Fully compatible with Crabtree Loadstar distribution boards
Applications
Ideal for higher-current final circuit protection where both earth leakage and overcurrent protection are required, particularly on circuits with increased inrush characteristics compared to B curve devices.
