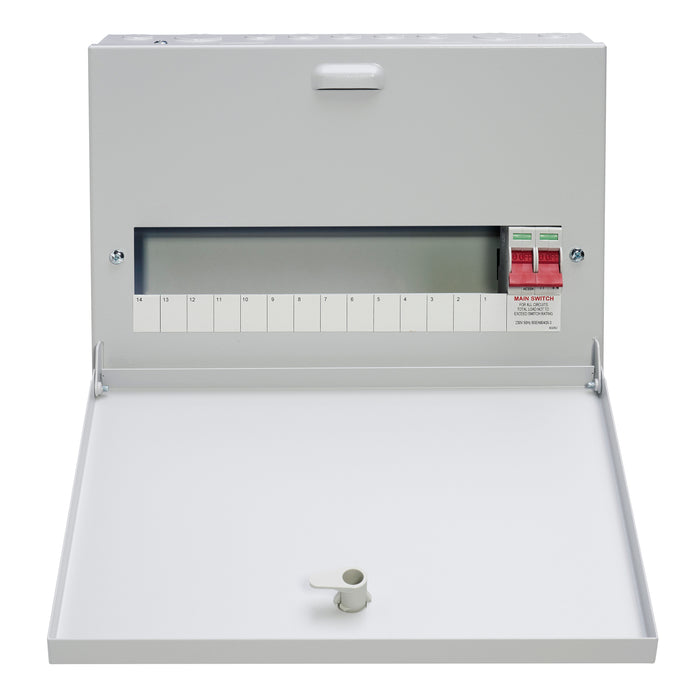

Crabtree 18SN14L Loadstar 14 Way 100A 1P+N Surface Distribution Board with Switch Disconnector

Product Overview

The Crabtree 18SN14L Loadstar 14 Way 100A Surface Distribution Board is a high-capacity, surface-mounted solution designed for safe and efficient electrical distribution in domestic, commercial, and light industrial installations. Supplied complete with a 100A 1P+N switch disconnector, it provides reliable isolation and dependable circuit management where multiple outgoing ways are required.

Manufactured in the UK to BS EN 61439-3, this Loadstar distribution board delivers long-term durability, regulatory compliance, and compatibility with the full range of Crabtree Loadstar final circuit protection devices.

Key Features & Benefits

• 14-way surface mounted distribution board with main switch only configuration (Type ‘A’).
• Supplied with a 100A main switch disconnector featuring twin line and neutral supply terminals.
• Includes a 100A fixed busbar assembly for secure and consistent internal connections.
• Compatible with Crabtree Loadstar 10kA SP MCBs from 6A to 63A.
• Accepts Crabtree Loadstar RCBOs ranging from 6A to 50A.
• Supports installation of the Crabtree miniature Type 2 SPD (CRT2SPD3W/1) for enhanced surge protection.
• Finished in durable RAL 7035 grey powder-coated steel for professional appearance and corrosion resistance.
• Designed and manufactured in the UK to BS EN 61439-3.

Ideal Applications

Ideal for surface-mounted installations requiring a higher number of outgoing circuits, including commercial premises, plant rooms, utility areas, and larger residential electrical systems.

Technical Summary

• Ways: 14
• Rated Current: 100A
• Poles: 1P+N
• Mounting: Surface
• Standard: BS EN 61439-3
• Finish: RAL 7035 Grey Powder Coat

Data Sheet

Click here to download the data sheet
