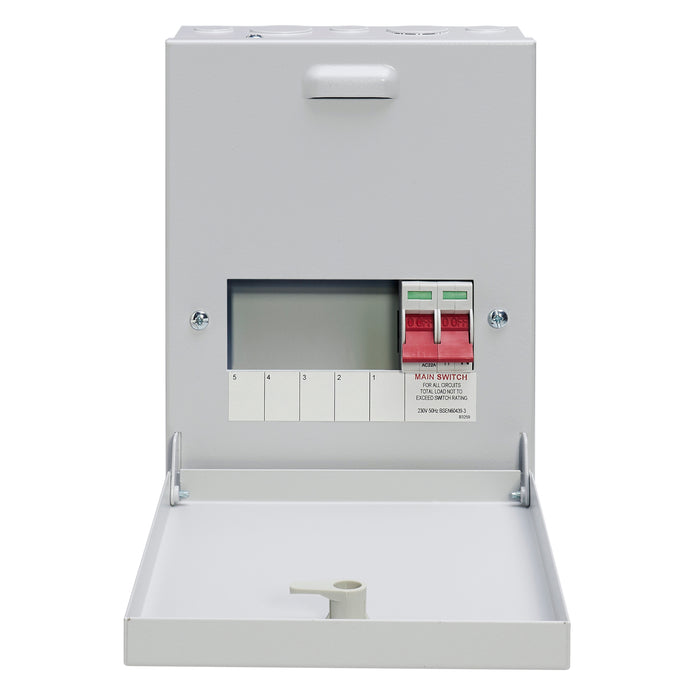

Crabtree 18SN05L Loadstar 5 Way 100A 1P+N Surface Distribution Board with Switch Disconnector

Product Overview

The Crabtree 18SN05L Loadstar 5 Way 100A Surface Distribution Board is a robust and reliable solution for low-voltage electrical distribution in residential, commercial, and light industrial installations. Supplied complete with a 100A switch disconnector, this surface-mounted board delivers safe isolation and dependable circuit protection in a compact, professional enclosure.

Designed and manufactured in the UK, the Loadstar range complies with BS EN 61439-3, ensuring high performance, safety, and long-term durability. Its neutral and line switching capability makes it ideal for modern electrical installations requiring enhanced protection and compliance.

Key Features & Benefits

• 5-way surface mounted distribution board with main switch only configuration.
• Supplied with a 100A 1P+N switch disconnector for safe isolation.
• Twin line and neutral supply terminals with a fixed 100A busbar assembly.
• Compatible with Crabtree Loadstar 10kA SP MCBs (6A to 63A).
• Accepts Crabtree Loadstar RCBOs from 6A to 50A.
• Supports installation of Crabtree Type 2 SPD (CRT2SPD3W/1) for surge protection.
• Durable RAL 7035 grey powder-coated steel enclosure.
• Designed and manufactured in the UK to BS EN 61439-3.

Applications

This Loadstar distribution board is suitable for a wide range of applications, including domestic consumer units, commercial electrical installations, plant rooms, and utility areas where surface mounting is required.

Technical Compliance

• Rated Current: 100A
• Configuration: 1 Pole + Neutral (1P+N)
• Mounting Type: Surface
• Standard: BS EN 61439-3

Data Sheet

Click here to download the data sheet
