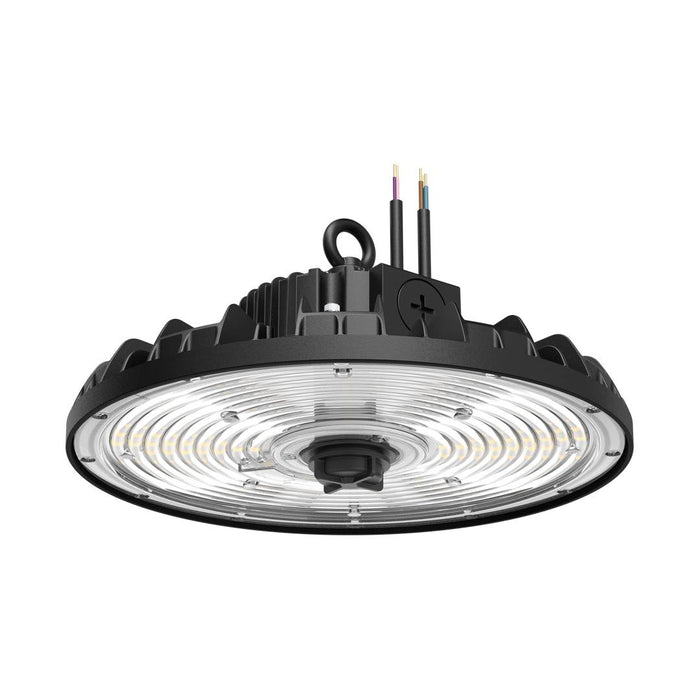

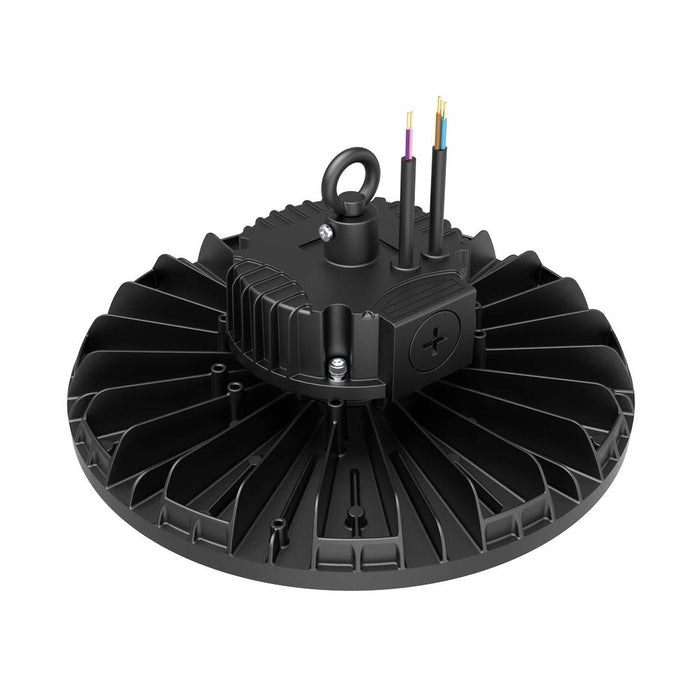

Collingwood HBAS2V40EMS Flex High Bay Luminaire Emergency 150W/175W/200W 0-10V 4000K

Product Description

The Collingwood HBAS2V40EMS Flex Emergency High Bay is a high-performance, wattage-switchable LED luminaire designed for warehouses, factories, workshops and other commercial or industrial spaces with high ceilings. Featuring selectable 150W, 175W and 200W outputs, it delivers up to 30,000 lumens of powerful 4000K neutral white illumination.

Designed with integrated emergency functionality, the HBAS2V40EMS combines reliable emergency lighting with excellent everyday performance. Efficiency of up to 150lm/W and 0-10V dimming help optimise energy consumption, while twist-and-lock Zhaga sensor compatibility provides a convenient way to integrate intelligent lighting controls.

Features & Benefits

• Integrated emergency functionality for commercial and industrial high bay lighting applications.
• Selectable 150W, 175W or 200W output provides flexibility for different installation requirements.
• High efficiency of up to 150lm/W helps reduce energy consumption and operating costs.
• Delivers approximately 22,500lm, 26,300lm or 30,000lm depending on the selected wattage.
• 4000K neutral white colour temperature provides clear, practical illumination for working environments.
• 0-10V dimming enables flexible lighting control and improved energy management.
• Twist-and-lock Zhaga sensor compatibility allows lighting controls to be added quickly and easily.
• Compatible with Casambi, daylight, PIR and step-dim control options.
• Emergency options include manual test, self-test and DALI-2.
• Compact and lightweight construction helps simplify installation.
• Removable driver provides convenient access for servicing and maintenance.
• Impact and corrosion-resistant aluminium housing provides excellent durability.
• 100% recyclable aluminium housing supports more sustainable installations.
• Pre-wired with 1.0m H05RN-F 3 x 1.0mm² cable for convenient installation.
• Suitable for ceiling mounting or suspension using jack chain, M10 drop rod or catenary wire.
• IP65 rated for protection against dust and water ingress.
• 90° beam angle provides effective light distribution across large industrial and commercial areas.

Specifications

• Product Code: HBAS2V40EMS
• Wattage: 150W / 175W / 200W selectable
• Lumen Output: 22,500lm / 26,300lm / 30,000lm
• Colour Temperature: 4000K
• CRI: >80
• Beam Angle: 90°
• IP Rating: IP65
• Dimming: 0-10V
• Sensor Options: Casambi, daylight, PIR and step-dim
• Emergency Options: Manual test, self-test and DALI-2
• Mounting Type: Ceiling or suspended
• Body Material: ADC12 aluminium alloy
• Colour / Finish: Black
