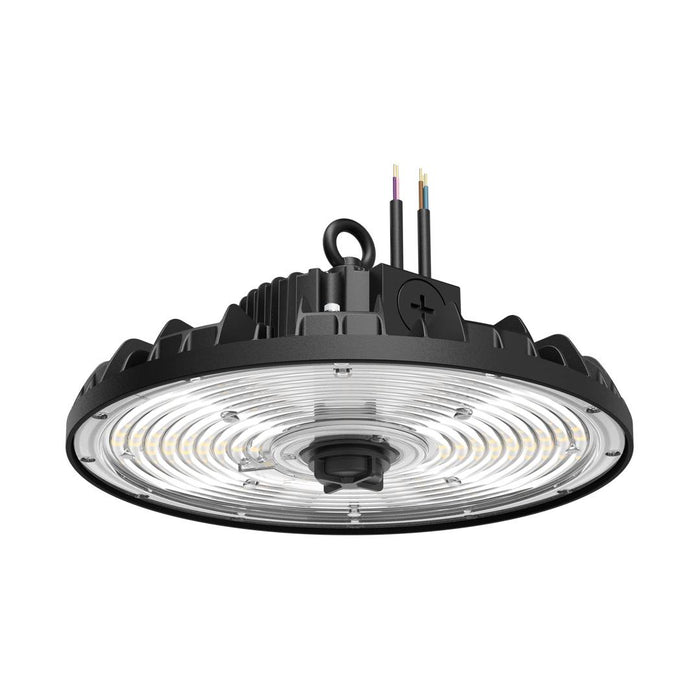

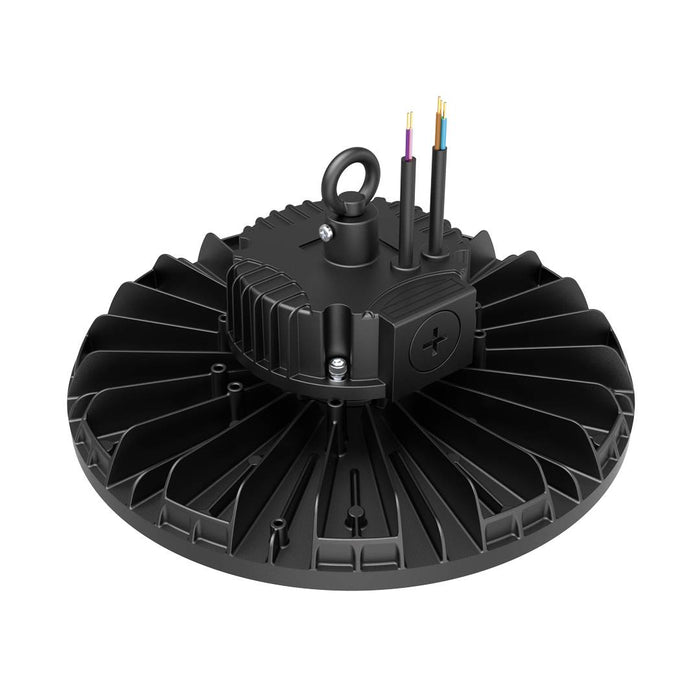

Collingwood HBAS2V40 Flex High Bay Luminaire 150W/175W/200W 0-10V 4000K

Product Description

The Collingwood HBAS2V40 Flex High Bay is a powerful, wattage-switchable LED luminaire designed for warehouses, factories, workshops and other commercial or industrial spaces with high ceilings. Offering selectable 150W, 175W and 200W outputs, it delivers up to 30,000 lumens with a 4000K neutral white colour temperature.

With an efficiency of up to 150lm/W and 0-10V dimming, the HBAS2V40 provides an energy-efficient and adaptable solution for demanding lighting installations. Twist-and-lock Zhaga sensor compatibility allows lighting controls to be added quickly, while its compact design, removable driver and pre-wired supply cable help simplify installation and maintenance.

Features & Benefits

• Selectable 150W, 175W or 200W output provides flexibility for different high bay lighting requirements.
• High efficiency of up to 150lm/W helps reduce energy consumption.
• Delivers approximately 22,500lm, 26,300lm or 30,000lm depending on the selected wattage.
• 4000K neutral white light is ideal for warehouses, factories, workshops and commercial premises.
• 0-10V dimming provides flexible lighting control and improved energy management.
• Twist-and-lock Zhaga sensor compatibility enables quick integration of lighting controls.
• Compatible with Casambi, daylight, PIR and step-dim control options.
• Compact and lightweight construction helps make installation quicker and easier.
• Removable driver provides convenient access for maintenance.
• Impact and corrosion-resistant aluminium housing provides excellent durability.
• 100% recyclable aluminium housing supports more sustainable installations.
• Pre-wired with 1.0m H05RN-F 3 x 1.0mm² cable for convenient installation.
• Suitable for ceiling mounting or suspension using jack chain, M10 drop rod or catenary wire.
• IP65 rated for protection against dust and water ingress.
• 90° beam angle provides effective light distribution across large areas.

Specifications

• Product Code: HBAS2V40
• Wattage: 150W / 175W / 200W selectable
• Lumen Output: 22,500lm / 26,300lm / 30,000lm
• Colour Temperature: 4000K
• CRI: >80
• Beam Angle: 90°
• IP Rating: IP65
• Dimming: 0-10V
• Sensor Options: Casambi, daylight, PIR and step-dim
• Emergency Options: Manual test, self-test and DALI-2
• Mounting Type: Ceiling or suspended
• Body Material: ADC12 aluminium alloy
• Colour / Finish: Black
