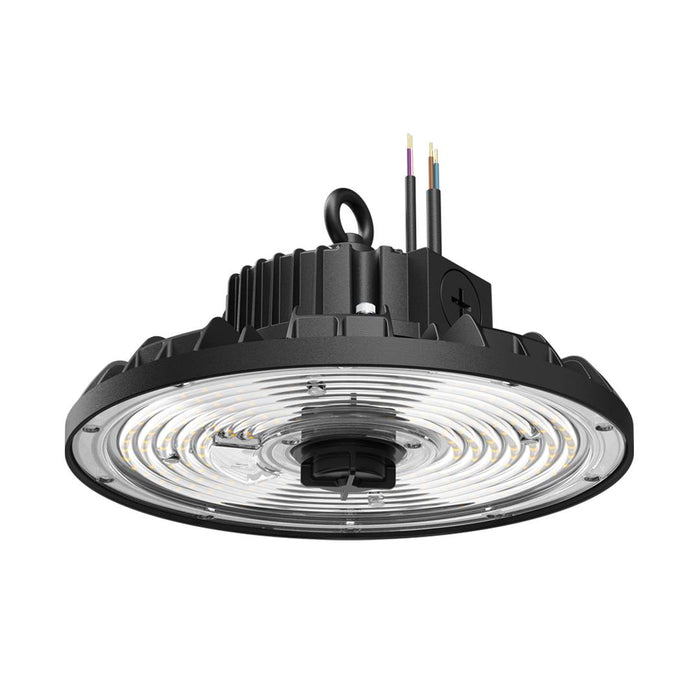

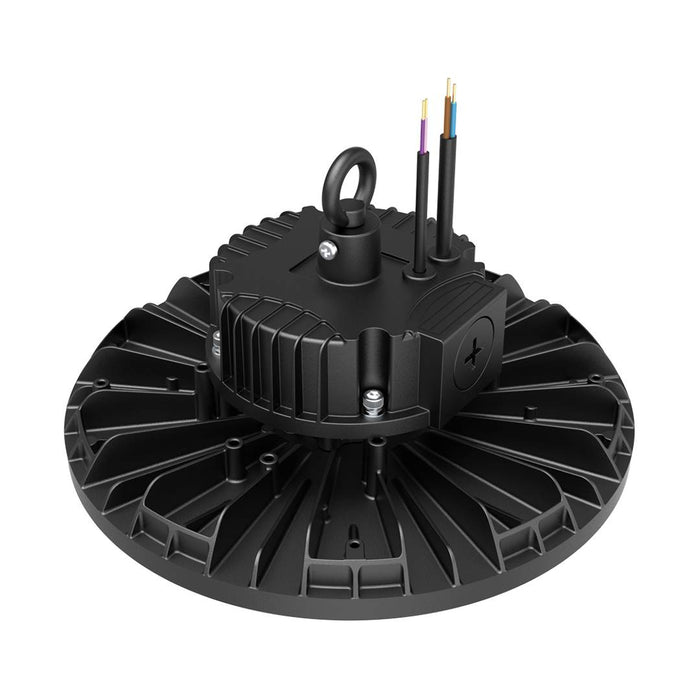

Collingwood HBAS1V40 Flex High Bay Luminaire 100W/125W/150W 0-10V 4000K

Product Description

The Collingwood HBAS1V40 Flex High Bay is a high-performance, wattage-switchable LED luminaire designed for commercial, industrial and high-ceiling applications. Delivering efficiency of up to 150lm/W, it offers selectable 100W, 125W and 150W outputs with a consistent 4000K neutral white colour temperature.

Designed for flexible lighting installations, the HBAS1V40 supports 0-10V dimming and a range of plug-in Zhaga sensor options. Its compact, lightweight construction simplifies installation, while the durable IP65-rated aluminium housing provides excellent resistance to impact, corrosion and demanding environments.

Features & Benefits

• Selectable 100W, 125W or 150W output for greater installation flexibility.
• High efficiency of up to 150lm/W for energy-efficient illumination.
• Delivers approximately 15,000lm, 18,800lm or 22,500lm depending on the selected wattage.
• 4000K neutral white colour temperature suitable for commercial and industrial environments.
• 0-10V dimming provides flexible lighting control and improved energy management.
• Twist-and-lock Zhaga sensor compatibility enables quick integration of lighting controls.
• Compatible with PIR, daylight, step-dim and Casambi control options.
• Compact and lightweight design helps make installation quicker and easier.
• Removable driver provides convenient access for maintenance.
• Impact and corrosion-resistant aluminium housing for long-lasting performance.
• 100% recyclable aluminium housing supports more sustainable installations.
• Pre-wired with 1.0m H05RN-F 3 x 1.0mm² cable for convenient installation.
• Suitable for suspension using jack chain, M10 drop rod or catenary wire.
• IP65 rated for protection against dust and water ingress.
• 90° beam angle provides effective illumination across large areas.

Specifications

• Product Code: HBAS1V40
• Wattage: 100W / 125W / 150W selectable
• Lumen Output: 15,000lm / 18,800lm / 22,500lm
• Colour Temperature: 4000K
• CRI: >80
• Beam Angle: 90°
• IP Rating: IP65
• Dimming: 0-10V
• Sensor Options: Casambi, daylight, PIR and step-dim
• Emergency Options: Manual test, self-test and DALI-2
• Mounting: Ceiling or suspended
• Body Material: ADC12 aluminium alloy
• Colour / Finish: Black

Data Sheet:

Click Here for Data Sheet
