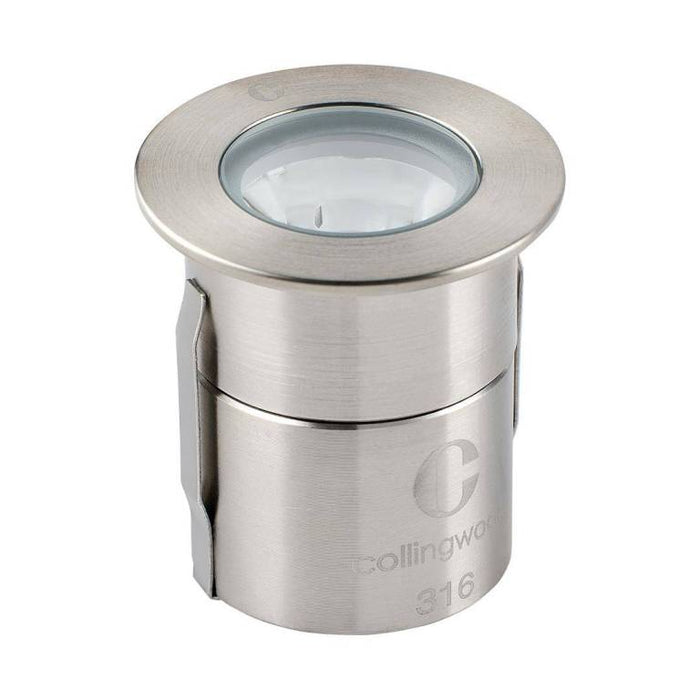

Collingwood GL019RSS30S GL019 0.4W-2.2W IP68 Low Voltage Groundlight, Stainless Steel, 12 Degree Beam Angle, 3000K

Main Image

Collingwood GL019RSS30S GL019 0.4W-2.2W IP68 Low Voltage Groundlight, Stainless Steel, 12 Degree Beam Angle, 3000K

Availability:
Dispatch in 1-2 Days
SKU GL019RSS30S
Request a quote
£76.43 - £76.43
£76.43
Inc VAT
£63.69
Exc VAT
£76.43 - £76.43
£63.69
£63.69 - £63.69
£63.69
Product Description
Customer Reviews
Read More...

Collingwood GL019RSS30S 0.4W–2.2W IP68 Low Voltage Ground Light, Stainless Steel, 12° Beam Angle, 3000K

Product Description

GL019 Round Low Voltage Ground Light

The GL019RSS30S belongs to Collingwood’s upgraded GL019 modular ground light family, offering options such as round, square, frosted, low-glare, half-moon and ultra-low-glare to suit virtually any project.

Compact yet powerful, this LED ground light produces a precise 12° beam of 3000K warm white light—perfect for highlighting steps, pathways, entrances and decking details. Engineered from marine-grade 316 stainless steel and rated IP68, it delivers long-term reliability indoors and out, including coastal locations, with years of maintenance-free performance.

Key Features & Benefits

  • IP68 – fully protected for indoor and outdoor use
  • Coastal protected for superior corrosion resistance
  • IK06 impact rating – walk-over safe (Stainless Steel version only)
  • Supplied with installation tube for straightforward fitting
  • Low voltage design for safe, efficient operation
  • SDCM3 for uniform, consistent light colour
  • CRI >80 for natural, true-to-life colour rendering
  • 3000K warm white for comfortable, welcoming ambience
  • Compact footprint with impressive output for subtle architectural accents
  • Robust outdoor-rated cable
  • Available in multiple finishes to complement your scheme

Technical Specifications

CRI >80
IP Rating IP68
IK Rating IK06
Walk Over / Drive Over Walk over
Tilt Fixed
Input 150mA / 250mA / 350mA / 500mA / 700mA DC
Max Ambient Temperature 55°C
Cut-out Size 33mm
Bathroom Zone 0
Electrical Class III
Suitable for Coastal Areas Yes
Beam Angle 12°
CCT 3000K
Luminous Efficacy 95 – 129 lm/W
LED Lifetime L70 70,000 hours
Material / Finish Stainless Steel 316
Warranty 7 years
Energy Class D
Luminous Output 54 – 210 lm
Power Consumption 0.4W / 0.7W / 1W / 1.5W / 2.2W
Dimensions (W × L × H) 40 × 40 × 41 mm
Adjustability Not adjustable
Dimmable No

Product Data Sheet

For installation guidance, wiring details and complete specifications, download the official data sheet below.

Download Data Sheet (PDF)

Product Description

Collingwood GL019RSS30S 0.4W–2.2W IP68 Low Voltage Ground Light, Stainless Steel, 12° Beam Angle, 3000K

Product Description

GL019 Round Low Voltage Ground Light

The GL019RSS30S belongs to Collingwood’s upgraded GL019 modular ground light family, offering options such as round, square, frosted, low-glare, half-moon and ultra-low-glare to suit virtually any project.

Compact yet powerful, this LED ground light produces a precise 12° beam of 3000K warm white light—perfect for highlighting steps, pathways, entrances and decking details. Engineered from marine-grade 316 stainless steel and rated IP68, it delivers long-term reliability indoors and out, including coastal locations, with years of maintenance-free performance.

Key Features & Benefits

  • IP68 – fully protected for indoor and outdoor use
  • Coastal protected for superior corrosion resistance
  • IK06 impact rating – walk-over safe (Stainless Steel version only)
  • Supplied with installation tube for straightforward fitting
  • Low voltage design for safe, efficient operation
  • SDCM3 for uniform, consistent light colour
  • CRI >80 for natural, true-to-life colour rendering
  • 3000K warm white for comfortable, welcoming ambience
  • Compact footprint with impressive output for subtle architectural accents
  • Robust outdoor-rated cable
  • Available in multiple finishes to complement your scheme

Technical Specifications

CRI >80
IP Rating IP68
IK Rating IK06
Walk Over / Drive Over Walk over
Tilt Fixed
Input 150mA / 250mA / 350mA / 500mA / 700mA DC
Max Ambient Temperature 55°C
Cut-out Size 33mm
Bathroom Zone 0
Electrical Class III
Suitable for Coastal Areas Yes
Beam Angle 12°
CCT 3000K
Luminous Efficacy 95 – 129 lm/W
LED Lifetime L70 70,000 hours
Material / Finish Stainless Steel 316
Warranty 7 years
Energy Class D
Luminous Output 54 – 210 lm
Power Consumption 0.4W / 0.7W / 1W / 1.5W / 2.2W
Dimensions (W × L × H) 40 × 40 × 41 mm
Adjustability Not adjustable
Dimmable No

Product Data Sheet

For installation guidance, wiring details and complete specifications, download the official data sheet below.

Download Data Sheet (PDF)
