Collingwood GL019RAB30S GL019 0.4W-2.2W IP68 Low Voltage Groundlight, Antique Brass, 12 Degree Beam Angle, 3000K
Collingwood GL019RAB30S 0.4W–2.2W IP68 Low Voltage Ground Light, Antique Brass, 12° Beam Angle, 3000K
Product Description

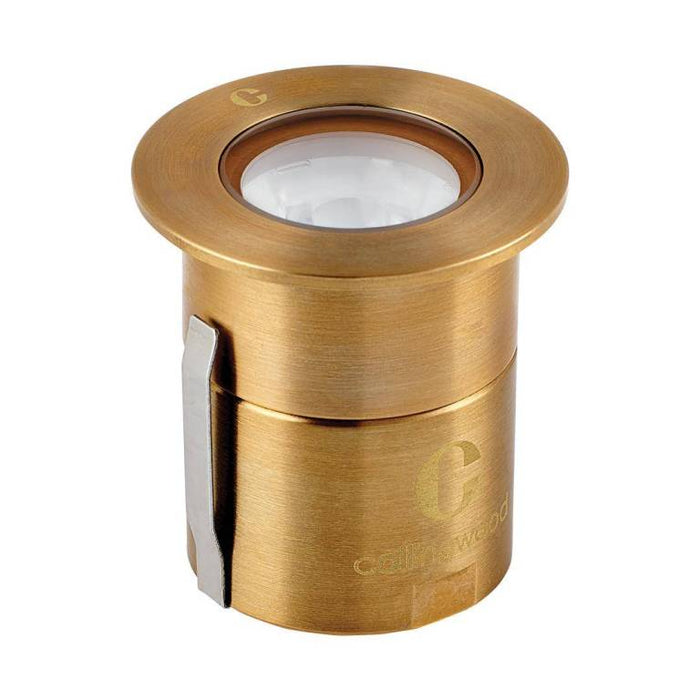

The Collingwood GL019RAB30S is a precision round, low-voltage LED ground light engineered for dependable, long-term performance. Part of the enhanced GL019 modular family, the series offers multiple configurations across the range — including round, square, frosted, low-glare, half-moon and ultra-low-glare variants — to suit residential and commercial schemes.
With its 12° narrow beam and 3000K warm white output, this fitting is ideal for focused accents along pathways, decking, entranceways and architectural details. The IP68 rating ensures reliable operation indoors and out, while the Antique Brass finish brings a refined, timeless look to any project.
Features & Benefits
- IP68 protection for permanent outdoor use and internal wet areas
- Coastal protected for durability in seaside environments
- IK06 impact resistance — suitable for walk-over applications (walk-over rating applies to stainless steel variants)
- Supplied with an installation tube for fast, secure fitting
- Low-voltage LED design for safety and energy efficiency
- SDCM3 for consistent, uniform light appearance
- CRI 80+ for natural, accurate colour rendering
- 3000K warm white for comfortable, welcoming ambience
- Compact, robust construction with outdoor-grade cabling
- Available in a choice of stylish finishes across the range
Technical Specifications
| Colour Rendering Index (CRI) | >80 |
|---|---|
| IP Rating | IP68 |
| IK Rating | IK06 |
| Walk Over / Drive Over | Walk Over |
| Tiltable | Fixed |
| Input | 150mA / 250mA / 350mA / 500mA / 700mA DC |
| Ambient Temperature | Up to 55°C |
| Cut-Out Size | 33mm |
| Bathroom Zone | Zone 0 |
| Electrical Class | Class III |
| Suitable for Coastal Areas | Yes |
| Beam Angle | 12° |
| Colour Temperature (CCT) | 3000K |
| Luminous Efficacy | 95–129 lm/W |
| LED Lifetime | L70 70,000 hours |
| Finish | Antique Brass |
| Body Material | Brass |
| Warranty | 7 Years |
| Energy Class | D |
| Luminous Flux | 54–210 lm |
| Power Consumption | 0.4W / 0.7W / 1W / 1.5W / 2.2W |
| Dimensions (W × L × H) | 40mm × 40mm × 41mm |
| Adjustability | Not Adjustable |
| Dimmable | No |
Data Sheet: Download Product Data Sheet
