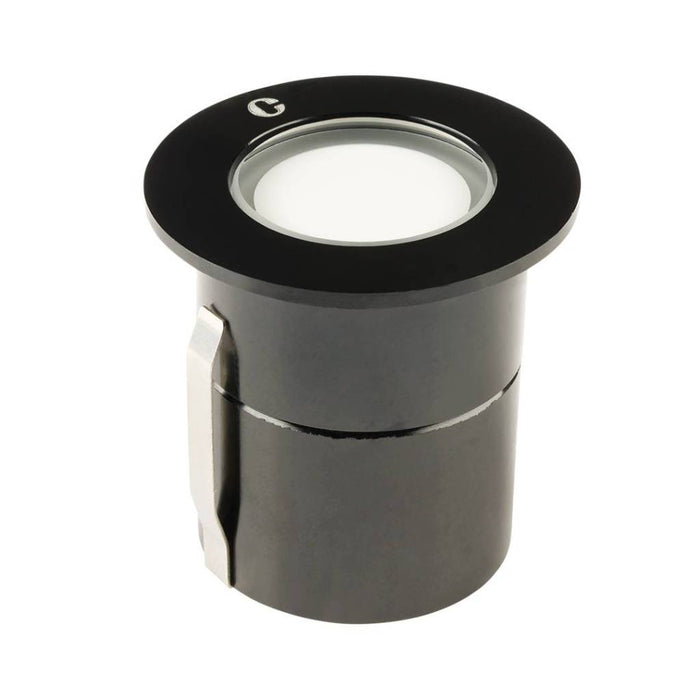

Collingwood GL019BKFD27 GL019 0.4W–1W IP68 Low Voltage Frosted LED Ground Light, Black, 100° Beam Angle, 2700K

This product is a suitable replacement for GL019BC0F27.

Product Overview

The Collingwood GL019BKFD27 Frosted Low Voltage Ground Light is a versatile and compact lighting solution designed for durability, efficiency, and aesthetic appeal. With an IP68 rating and robust anodised aluminium construction, it is ideal for both indoor and outdoor environments, including coastal areas. Delivering a warm 2700K colour temperature and wide 100° beam angle, it creates a welcoming atmosphere while maintaining energy efficiency and reliability.

Key Features

• IP68 rated: Fully waterproof and suitable for indoor and outdoor installations.
• Coastal protection: Designed to resist corrosion in coastal environments.
• IK06 impact resistance: Durable design suitable for walk-over applications (stainless steel versions only).
• Complete installation kit: Includes installation tube for quick and easy setup.
• Low voltage operation: Safe and energy-efficient, operating at 150mA / 250mA / 350mA DC.
• High CRI (>80): Ensures excellent colour rendering and visual consistency.
• SDCM3 consistency: Uniform light colour across fittings.
• Compact design: Seamlessly integrates into any setting with minimal visual impact.
• Durable outdoor cable: Long-lasting and designed to withstand harsh conditions.
• Available in multiple finishes: Choose from a variety of colour options to suit your design scheme.

Technical Specifications

• CRI: >80
• IP Rating: IP68
• IK Rating: IK06
• Walk Over / Drive Over: No
• Tilt: Fixed
• Input Current: 150mA / 250mA / 350mA DC
• Ambient Temperature: Up to 55°C
• Cut-out Size: 33mm
• Bathroom Zone: Zone 0
• Electrical Class: III
• Suitable for Coastal Areas: Yes
• Beam Angle: 100°
• Colour Temperature: 2700K
• Efficiency: 33 lm/W
• LED Lifetime: L70 70,000 hours
• Material: Anodised aluminium
• Finish: Black
• Energy Class: C
• Dimensions (mm): 40 × 40 × 41
• Wattage & Lumens: 0.4W / 0.7W / 1W producing 13 lm
• Adjustability: Fixed
• Dimmable: No
• Warranty: 7 years

Downloads

Data Sheet:

Download the Data Sheet

Instruction Manual:

Access the Instruction Manual
