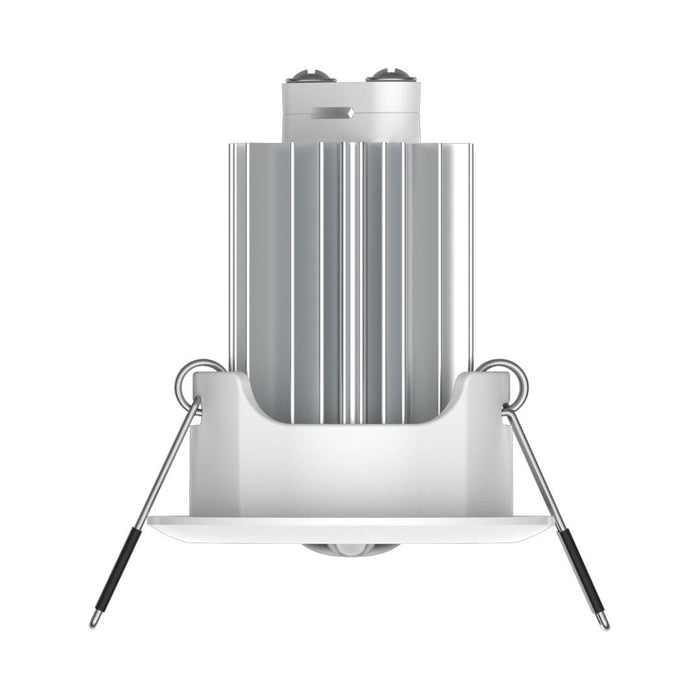

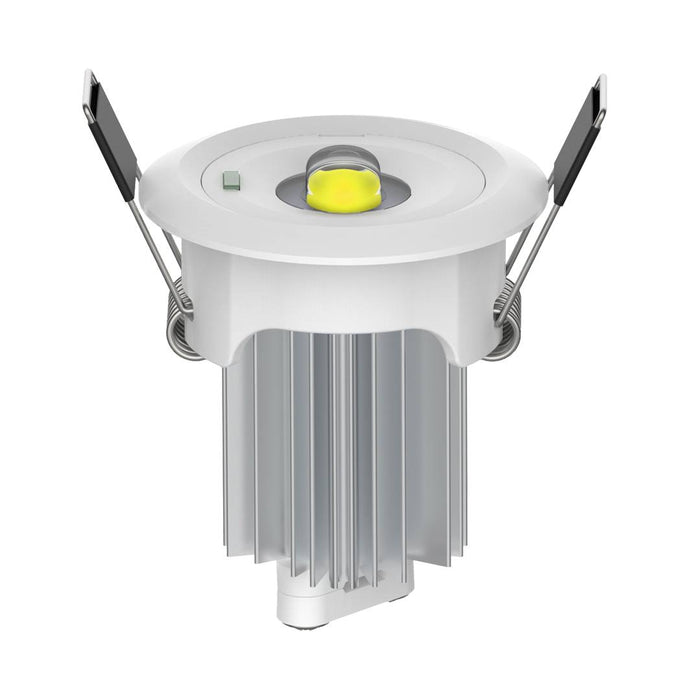

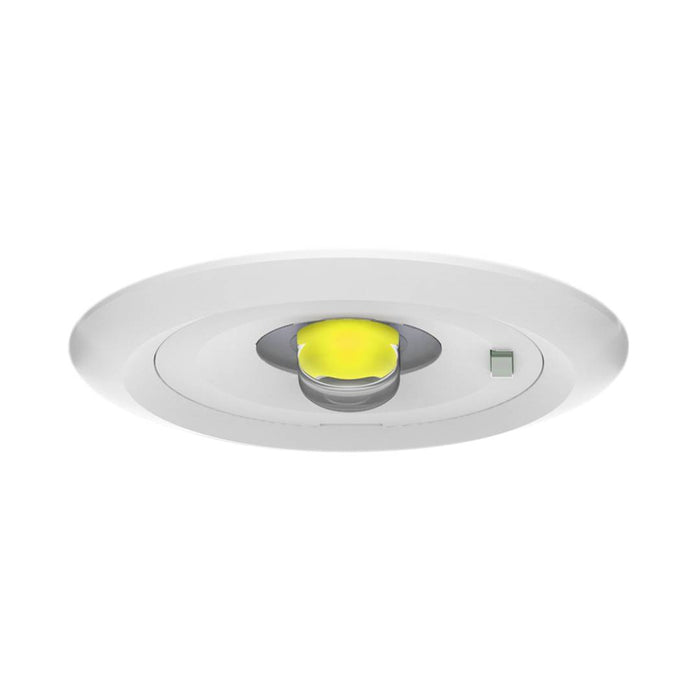

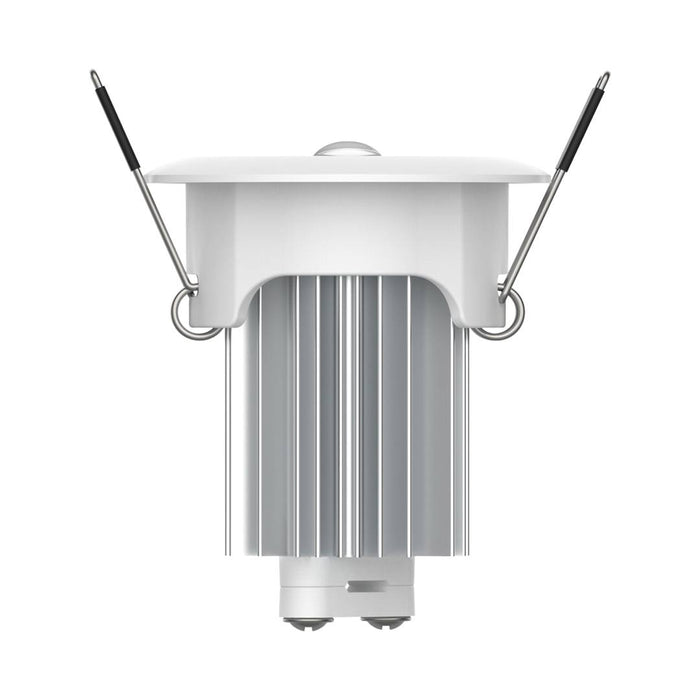

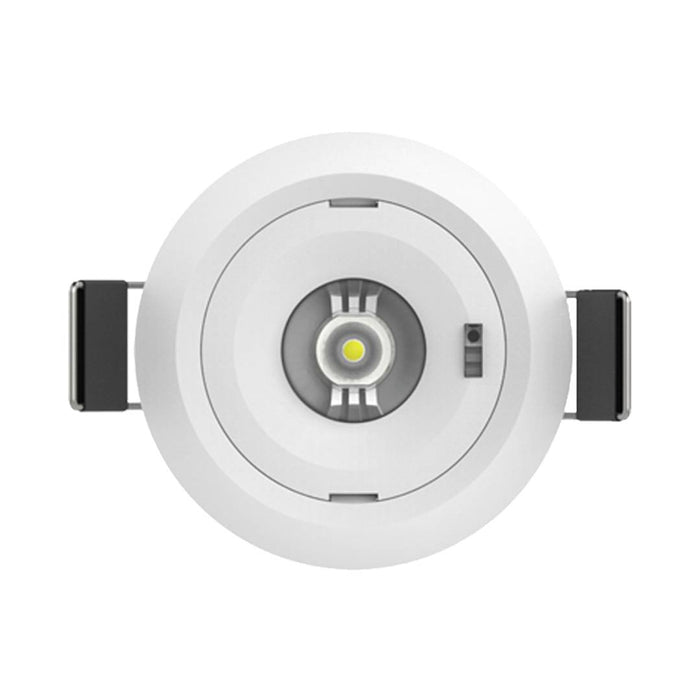

Collingwood EMRW3MS Salvus Route Recessed Emergency Downlight White Non-Maintained Manual & Self-Test 3W IP20

Product Description

The Collingwood EMRW3MS Salvus Route is a compact 3W recessed emergency LED downlight designed to provide reliable non-maintained emergency illumination in commercial, industrial and public buildings. Delivering 300 lumens at 6500K, it provides a discreet ceiling-mounted emergency lighting solution for escape routes, corridors and open areas.

Supplied with both open-area and corridor lenses, the Salvus Route can be configured to suit different emergency lighting layouts. Its wide 148° beam angle provides effective light distribution, while the compact recessed design and 50mm cut-out allow for a neat, unobtrusive installation.

The EMRW3MS combines manual-test and self-test functionality within a single fitting, helping simplify commissioning and ongoing maintenance. The unit can be changed to manual-test operation by removing the green 2-pin jumper connector. A long-life LiFePO4 battery with temperature monitoring supports dependable emergency performance.

Features & Benefits

• Compact 3W non-maintained recessed LED emergency downlight.
• Delivers 300 lumens of 6500K emergency illumination.
• Combined manual-test and self-test functionality for flexible testing and maintenance.
• Manual-test mode can be selected by removing the green 2-pin jumper connector.
• Long-life LiFePO4 battery for dependable emergency operation.
• Battery temperature monitoring supports reliable battery performance.
• Open-area and corridor lenses included for flexible emergency lighting layouts.
• Wide 148° beam angle provides effective emergency light distribution.
• Rugged polycarbonate housing provides long-lasting durability.
• Compact recessed ceiling design provides a discreet appearance.
• 50mm ceiling cut-out helps simplify installation.
• Suitable for escape routes, corridors, open areas and general emergency lighting applications.

Specifications

• Product Code: EMRW3MS
• Product Range: Salvus Route
• Emergency Operation: Non-maintained
• Wattage: 3W
• Lumen Output: 300lm
• Colour Temperature: 6500K
• Beam Angle: 148°
• IP Rating: IP20
• Cut-Out: 50mm
• Emergency Test Options: Manual test / Self-test
• Lens Options: Open area and corridor lenses included
• Mounting Type: Recessed ceiling
• Base Shape: Round
• Body Material: Polycarbonate
• Colour / Finish: White
• Sensor: None
• Light Window: 1

Data Sheet:

Click Here for Data Sheet

Instruction Manual:

Click Here for Instruction Manual
