Collingwood EMRW1MS Salvus Route Recessed Emergency Downlight White Non-Maintained Manual & Self-Test 1.5W IP20

Product Description

The Collingwood EMRW1MS Salvus Route is a compact 1.5W recessed emergency LED downlight designed to provide reliable non-maintained emergency illumination in commercial, public and industrial buildings. Delivering 150 lumens at 6500K, it offers a discreet ceiling-mounted solution for escape routes, corridors and open-area emergency lighting applications.

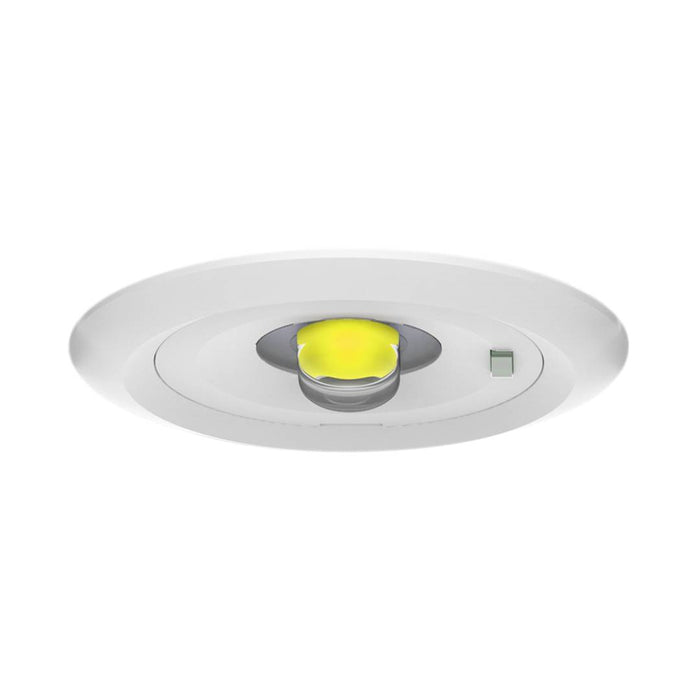

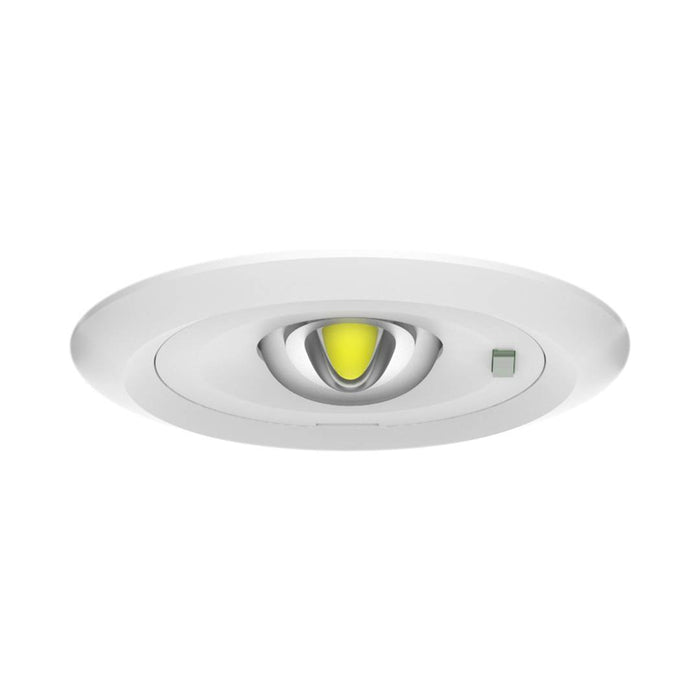

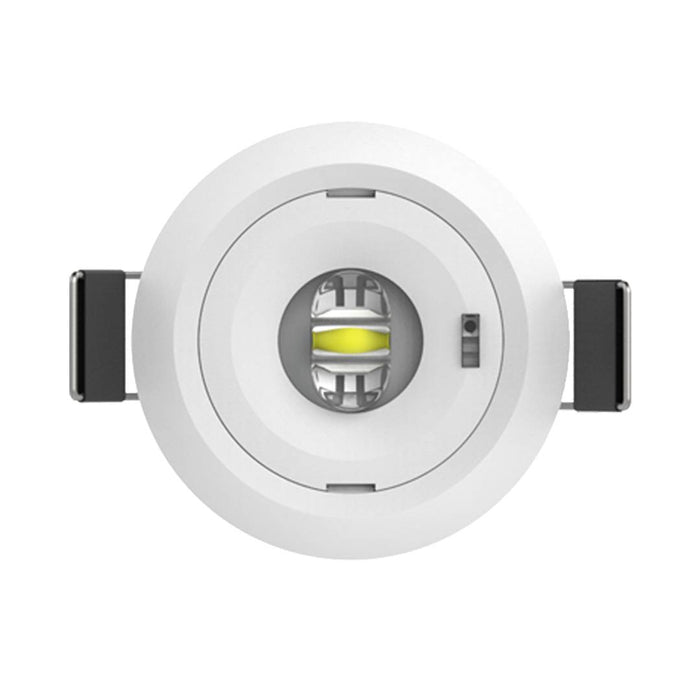

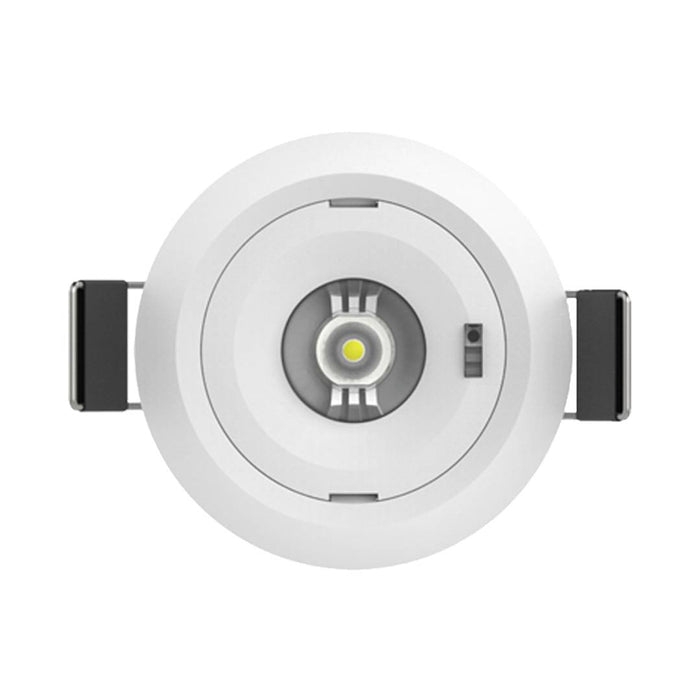

Supplied with both open-area and corridor lenses, the Salvus Route can be configured to provide suitable light distribution for different emergency lighting layouts. Its wide 148° beam angle and compact recessed design make it a versatile choice where unobtrusive emergency lighting is required.

The luminaire combines manual-test and self-test functionality in a single product for flexible commissioning and maintenance. Removing the green 2-pin jumper connector switches the unit to manual-test operation. A long-life LiFePO4 battery with temperature monitoring and a rugged polycarbonate housing provide dependable performance.

Features & Benefits

• Compact 1.5W non-maintained recessed LED emergency downlight.
• Delivers 150 lumens of 6500K emergency illumination.
• Combined manual-test and self-test functionality provides flexible testing and maintenance.
• Switches to manual-test operation by removing the green 2-pin jumper connector.
• Long-life LiFePO4 battery provides dependable emergency performance.
• Battery temperature monitoring supports reliable battery operation.
• Open-area and corridor lenses included for flexible emergency lighting layouts.
• Wide 148° beam angle provides effective emergency light distribution.
• Rugged polycarbonate construction for long-lasting performance.
• Recessed ceiling installation provides a neat and discreet appearance.
• 50mm cut-out for compact installation.
• Ideal for escape routes, corridors, open areas and general emergency lighting applications.

Specifications

• Product Code: EMRW1MS
• Product Range: Salvus Route
• Emergency Operation: Non-maintained
• Wattage: 1.5W
• Lumen Output: 150lm
• Colour Temperature: 6500K
• Beam Angle: 148°
• IP Rating: IP20
• Cut-Out: 50mm
• Emergency Test Options: Manual test / Self-test
• Lens Options: Open area and corridor lenses included
• Mounting Type: Recessed ceiling
• Base Shape: Round
• Body Material: Polycarbonate
• Colour / Finish: White
• Sensor: None
• Light Window: 1

Data Sheet:

Click Here for Data Sheet

Instruction Manual:

Click Here for Instruction Manual
