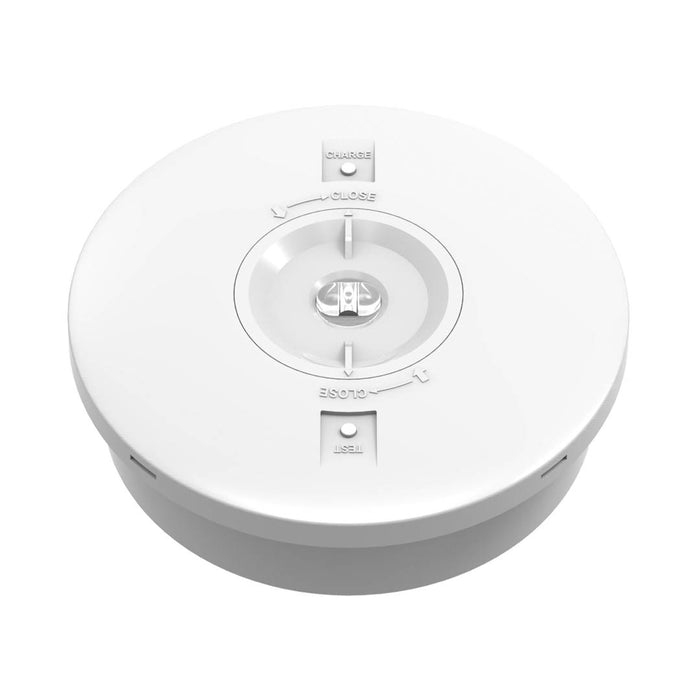

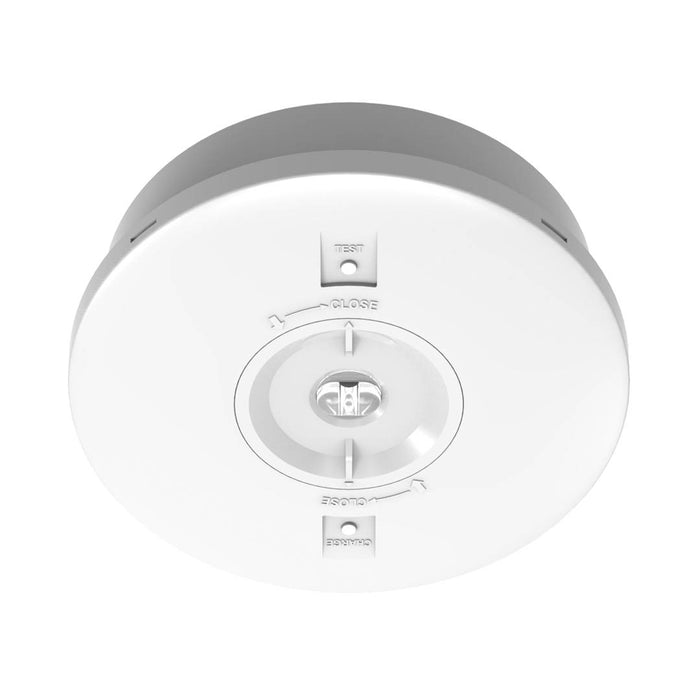

Collingwood EMRSW2MS Salvus Route Surface Mount Emergency Downlight White Non-Maintained Manual & Self-Test 2.5W IP65

Product Description

The Collingwood EMRSW2MS Salvus Route is a versatile 2.5W surface-mounted emergency LED downlight designed to provide dependable non-maintained emergency illumination for commercial, industrial and public buildings. Delivering 240 lumens at 6500K, it combines a robust IP65 construction with flexible lens options for effective illumination of both open areas and corridors.

Supplied with both open-area and corridor lenses, the Salvus Route allows the light distribution to be adapted to suit different emergency lighting layouts. A simple twist-and-lock front mechanism makes changing between lenses quick and straightforward, while the BESA box footprint and 20mm conduit compatibility provide flexible installation options.

The long-life LiFePO4 battery incorporates temperature monitoring for dependable operation. Selectable manual-test and self-test functionality simplifies commissioning and maintenance, with the self-test function easily disabled by removing the green 2-pin jumper connector.

Features & Benefits

• 2.5W non-maintained surface-mounted LED emergency downlight.
• Delivers 240 lumens of 6500K emergency illumination.
• Selectable manual-test and self-test functionality for flexible testing and maintenance.
• Long-life LiFePO4 battery for dependable emergency performance.
• Battery temperature monitoring supports safe and reliable operation.
• Open-area and corridor lenses included for flexible emergency lighting layouts.
• Wide 147° beam angle provides effective emergency light distribution.
• Simple twist-and-lock front mechanism enables quick lens changes.
• Rugged polycarbonate housing provides excellent durability.
• IP65 rated for protection against dust and water ingress.
• BESA box footprint helps simplify surface-mounted installations.
• Suitable for 20mm conduit entry from the side or rear.
• Self-test functionality can be disabled by removing the green 2-pin jumper connector.
• Ideal for escape routes, corridors, open areas and general emergency lighting applications.

Specifications

• Product Code: EMRSW2MS
• Product Range: Salvus Route
• Emergency Operation: Non-maintained
• Wattage: 2.5W
• Lumen Output: 240lm
• Colour Temperature: 6500K
• Beam Angle: 147° (Open Area and Corridor)
• IP Rating: IP65
• Emergency Test Options: Manual test / Self-test
• Lens Options: Open area and corridor lenses included
• Sensor: None
• Mounting Type: BESA / M20 conduit
• Base Shape: Round
• Body Material: Polycarbonate
• Colour / Finish: White
• Light Window: 1
