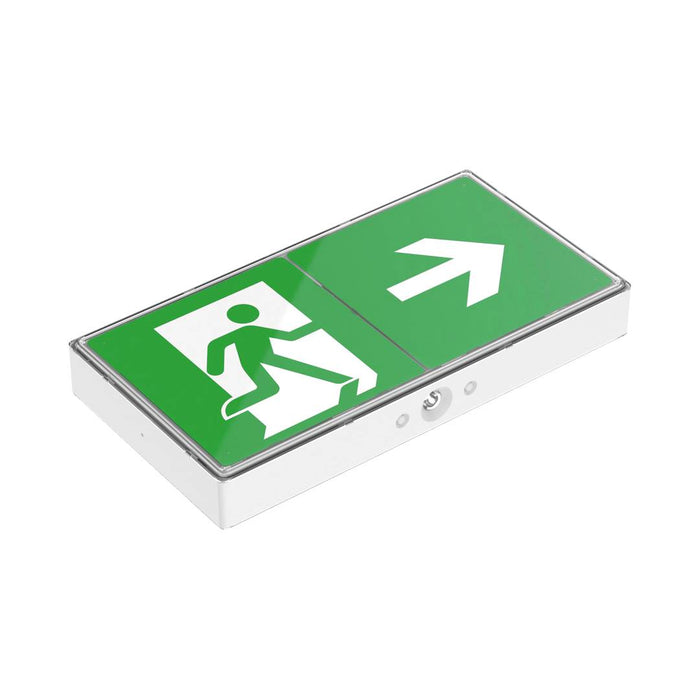

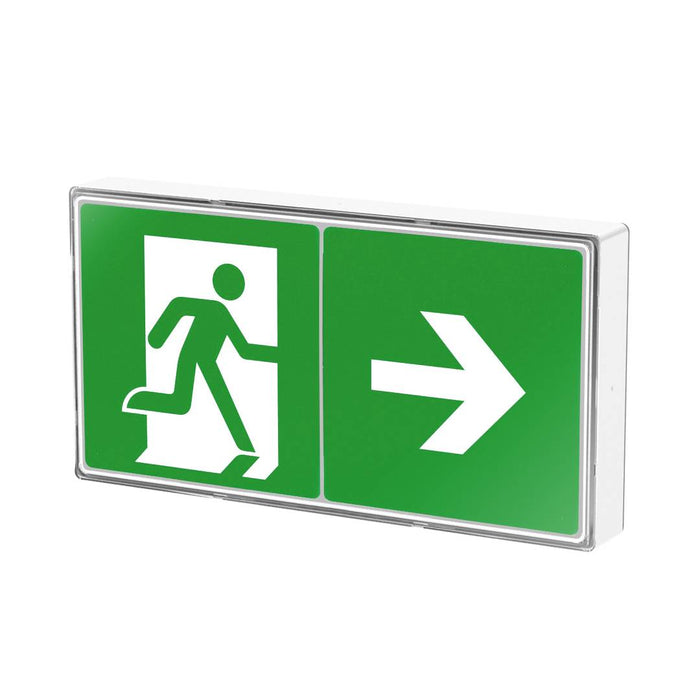

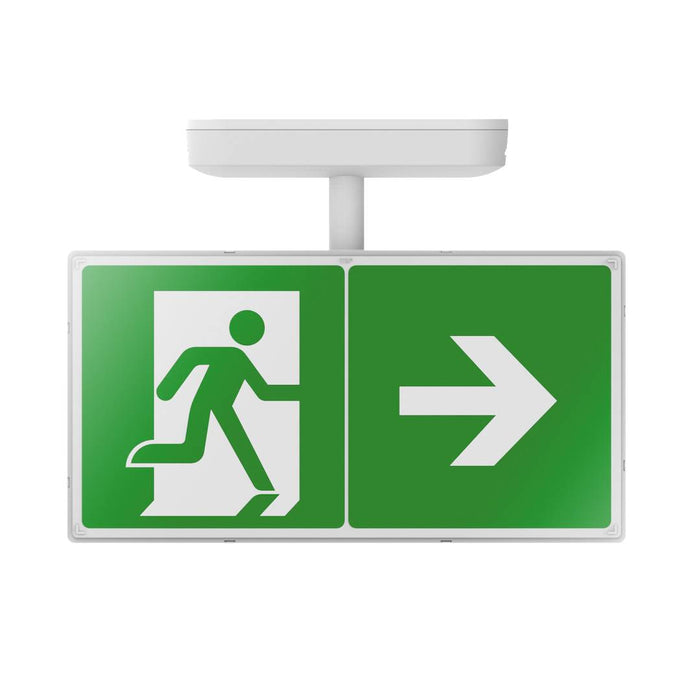

Collingwood EMBXWMSHP Salvus High Pro Emergency Exit Box 32m Viewing Distance White Maintained/Non-Maintained Manual & Self-Test 3W IP65

Product Description

The Collingwood EMBXWMSHP Salvus High Pro Emergency Exit Box is a robust 3W LED emergency exit sign designed to provide clear and dependable directional signage across commercial, industrial and public buildings. Offering a viewing distance of up to 32 metres, it is an ideal solution for identifying escape routes and final exits.

Designed for maintained and non-maintained operation, the Salvus High Pro features selectable manual-test and self-test functionality for flexible emergency lighting maintenance. Its long-life LiFePO4 battery incorporates temperature monitoring to support reliable emergency performance, while the rugged IP65-rated polycarbonate housing provides excellent protection against dust and water ingress.

Delivering 70 lumens at 6500K, the EMBXWMSHP also provides push-bar illuminance for final exit applications. A legend kit is included for versatile directional signage, and the unit is compliant with ISO 7010 and ISO 3864. The self-test function can also be disabled when required by removing the green 2-pin jumper connector.

Features & Benefits

• High-performance emergency LED exit box with a viewing distance of up to 32 metres.
• 3W LED output delivers 70 lumens of emergency illumination.
• Suitable for maintained and non-maintained emergency operation.
• Selectable manual-test and self-test functionality simplifies testing and maintenance.
• Long-life LiFePO4 battery supports dependable emergency operation.
• Battery temperature monitoring helps maintain reliable battery performance.
• IP65 rated for protection against dust and water ingress.
• Rugged polycarbonate housing provides excellent durability for demanding environments.
• Compliant with ISO 7010 and ISO 3864 safety signage standards.
• Provides push-bar illuminance for final exit applications.
• Legend kit included for flexible emergency directional signage.
• Self-test functionality can be disabled by removing the green 2-pin jumper connector.
• 6500K colour temperature provides clear emergency illumination.
• 50° beam angle provides focused light distribution.

Specifications

• Product Code: EMBXWMSHP
• Product Range: Salvus High Pro
• Viewing Distance: Up to 32m
• Wattage: 3W
• Lumen Output: 70lm
• Colour Temperature: 6500K
• Beam Angle: 50°
• IP Rating: IP65
• Operation: Maintained / Non-maintained
• Emergency Test Options: Manual test / Self-test
• Mounting Type: Wall
• Body Material: Polycarbonate
• Colour / Finish: White
• Base Shape: Rectangular
• Light Window: 1
• Length: 362mm
• Width: 190mm
• Legend Kit: Included
