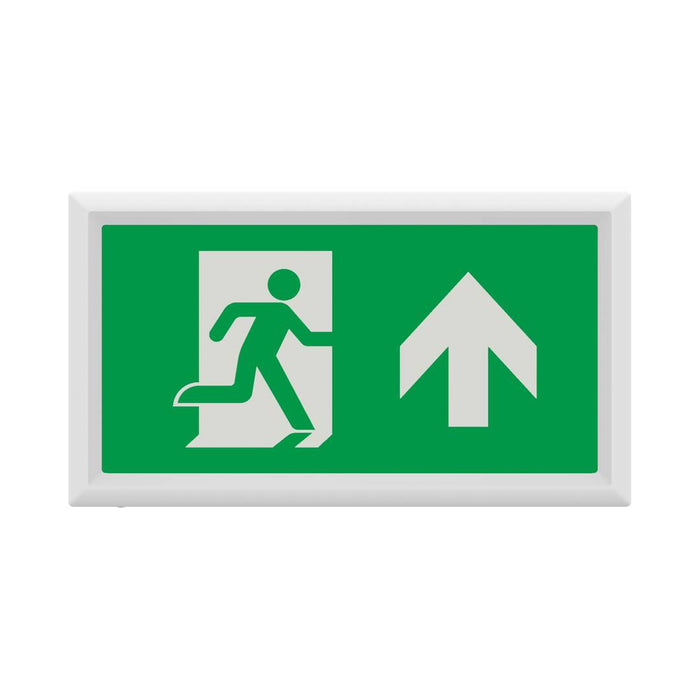

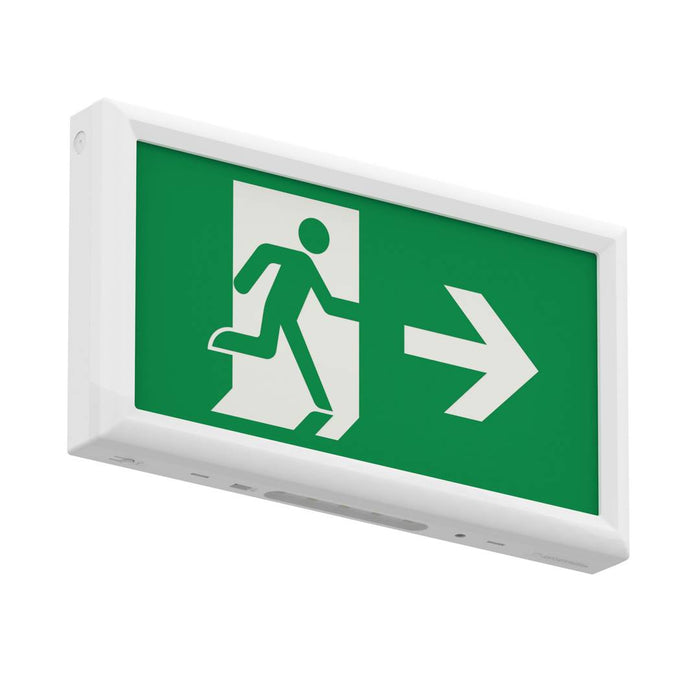

Collingwood EMBXWMS Salvus Emergency Exit Box 32m Viewing Distance White Maintained/Non-Maintained Manual & Self-Test IP20

Product Description

The Collingwood EMBXWMS Salvus Emergency Exit Box is a robust LED exit sign designed to provide clear and dependable emergency directional signage in commercial, public and industrial buildings. Offering a viewing distance of up to 32 metres, it is suitable for clearly identifying escape routes and final exits.

The Salvus Exit Box supports both maintained and non-maintained operation and features selectable manual-test and self-test functionality for flexible emergency lighting maintenance. A long-life LiFePO4 battery with temperature monitoring helps provide dependable performance during emergency operation.

Constructed from durable polycarbonate and compliant with ISO 7010 and ISO 3864, the EMBXWMS is supplied with a comprehensive legend kit for versatile directional signage. It also provides push-bar illuminance for final exit applications, while the self-test function can be disabled when required by removing the green 2-pin jumper connector.

Features & Benefits

• Emergency LED exit box with a viewing distance of up to 32 metres.
• Suitable for maintained and non-maintained emergency operation.
• Selectable manual-test and self-test functionality simplifies testing and maintenance.
• Long-life LiFePO4 battery provides dependable emergency performance.
• Battery temperature monitoring helps support reliable battery operation.
• Durable polycarbonate housing for long-lasting performance.
• Compliant with ISO 7010 and ISO 3864 safety signage standards.
• Provides push-bar illuminance for final exit applications.
• Legend kit included for flexible emergency directional signage.
• Self-test functionality can be disabled by removing the green 2-pin jumper connector.
• Flexible mounting options include BESA, M20 conduit and wall mounting.
• 6500K LED output provides clear emergency illumination.

Specifications

• Product Code: EMBXWMS
• Product Range: Salvus
• Viewing Distance: Up to 32m
• Wattage: 2.5W
• Lumen Output: 26lm
• Colour Temperature: 6500K
• Beam Angle: 93°
• IP Rating: IP20
• Operation: Maintained / Non-maintained
• Emergency Test Options: Manual test / Self-test
• Mounting Type: BESA / M20 conduit / Wall
• Body Material: Polycarbonate
• Colour / Finish: White
• Base Shape: Rectangular
• Light Window: 1
• Length: 330mm
• Width: 185mm
• Legend Kit: Included
