Collingwood EMBW3MS Salvus Emergency Bulkhead White Maintained/Non-Maintained Manual & Self-Test 3.5W IP65
Product Description

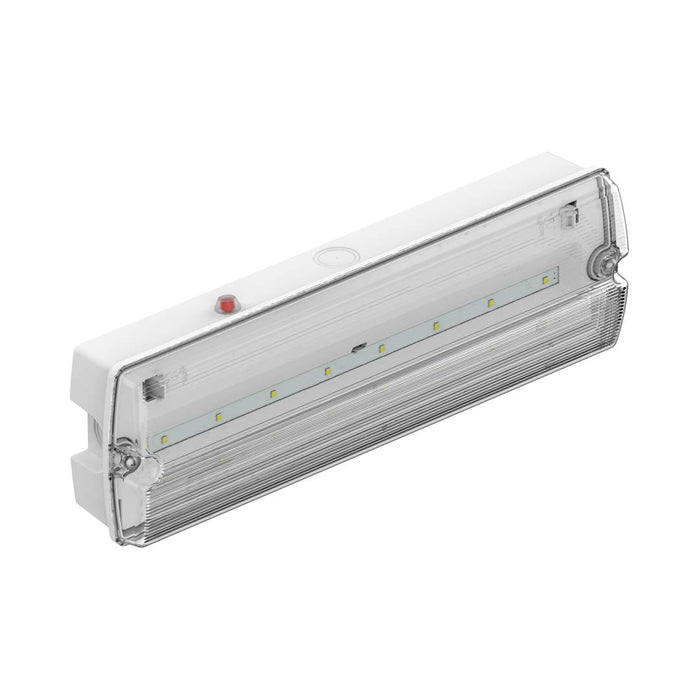

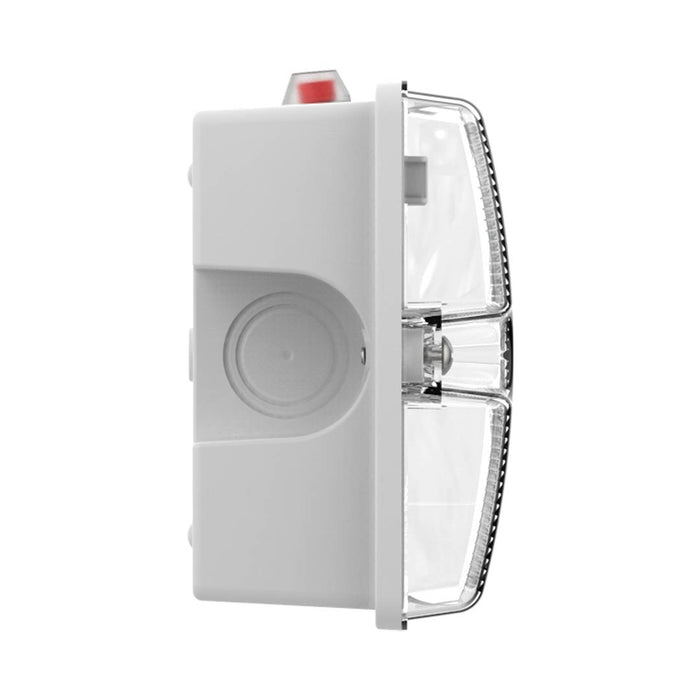

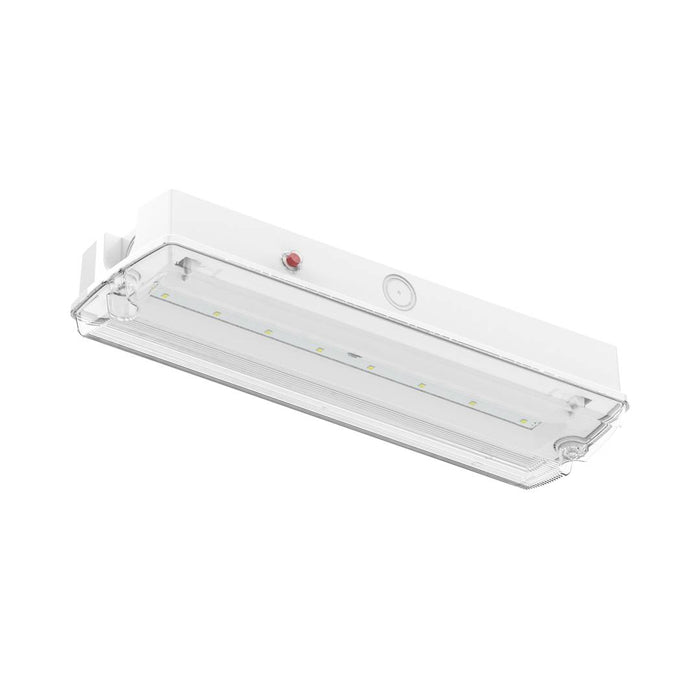

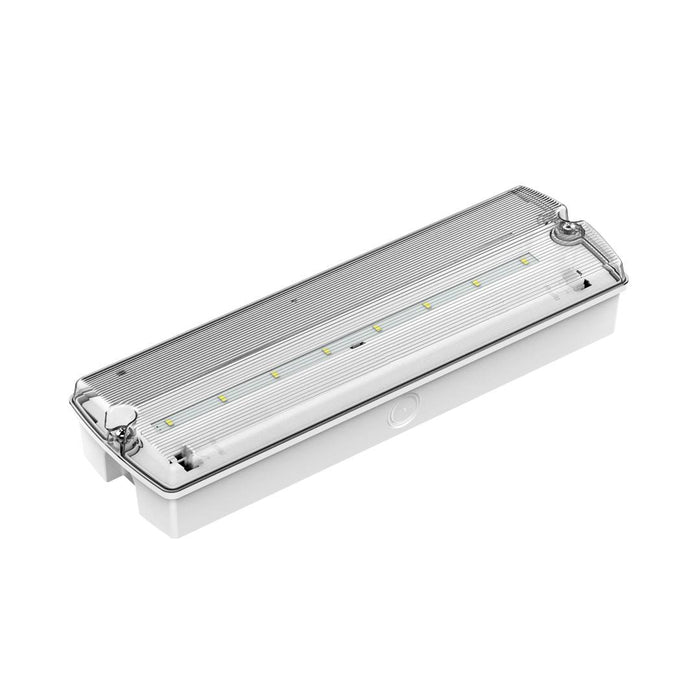

The Collingwood EMBW3MS Salvus Emergency Bulkhead is a robust and versatile 3.5W LED emergency luminaire designed for open areas, escape routes, general emergency illumination and exit signage. Suitable for both indoor and outdoor installations, it offers maintained or non-maintained operation together with selectable manual-test and self-test functionality.
Delivering 350 lumens at 6500K with a wide 106° beam angle, the Salvus provides effective emergency light distribution across commercial and industrial environments. Its rugged IP65-rated polycarbonate housing offers excellent protection against dust and water ingress for dependable performance in demanding locations.
Installation is straightforward thanks to three M20 cable-entry knockouts and rear BESA box fixing points. A long-life LiFePO4 battery with temperature monitoring supports reliable emergency operation, while the included legend kit enables the luminaire to be configured as an emergency exit sign. The unit is compliant with ISO 7010 and ISO 3864.
Features & Benefits
- Versatile 3.5W LED emergency bulkhead for commercial and industrial applications.
- Maintained and non-maintained operating options provide installation flexibility.
- Selectable manual-test and self-test functionality simplifies emergency lighting maintenance.
- Long-life LiFePO4 battery provides dependable emergency operation.
- Battery temperature monitoring supports reliable battery performance.
- Delivers 350 lumens of 6500K emergency illumination.
- Wide 106° beam angle provides effective light distribution across open areas and escape routes.
- IP65 rated for protection against dust and water ingress.
- Rugged polycarbonate housing is suitable for indoor and outdoor environments.
- Three M20 cable-entry knockouts provide flexible wiring options.
- Rear BESA box fixing points help simplify installation.

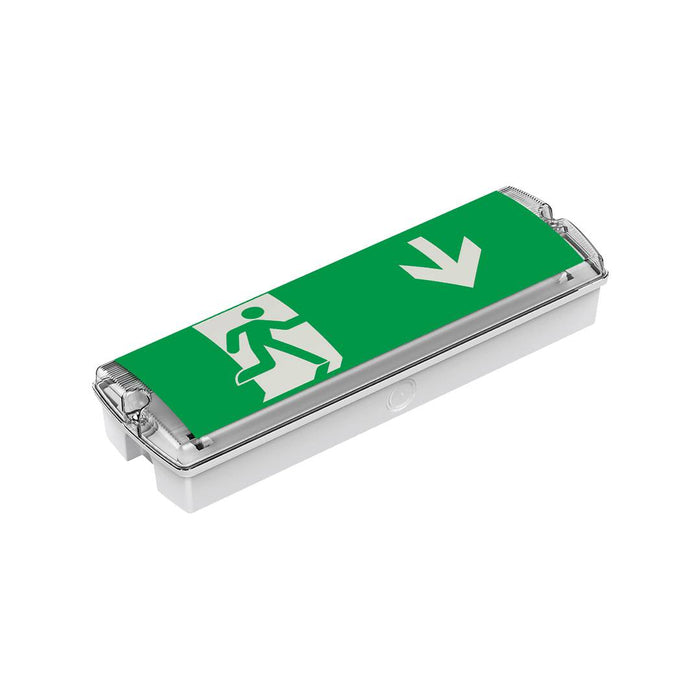

- Legend kit included for use as an emergency exit sign.
- Suitable for open areas, escape routes, general emergency lighting and exit signage.
- Compliant with ISO 7010 and ISO 3864.
- Self-test functionality can be disabled by removing the green 2-pin jumper connector.
Specifications
-
Product Code: EMBW3MS
-
Product Range: Salvus
-
Wattage: 3.5W
-
Lumen Output: 350lm
-
Colour Temperature: 6500K
-
Beam Angle: 106°
-
IP Rating: IP65
-
Operation: Maintained / Non-maintained
-
Emergency Test Options: Manual test / Self-test
-
Sensor: None
-
Mounting Type: Wall
-
Body Material: Polycarbonate
-
Colour / Finish: White
-
Base Shape: Rectangular
-
Light Window: 1
-
Length: 352mm
-
Width: 110mm
-
Legend Kit: Included
