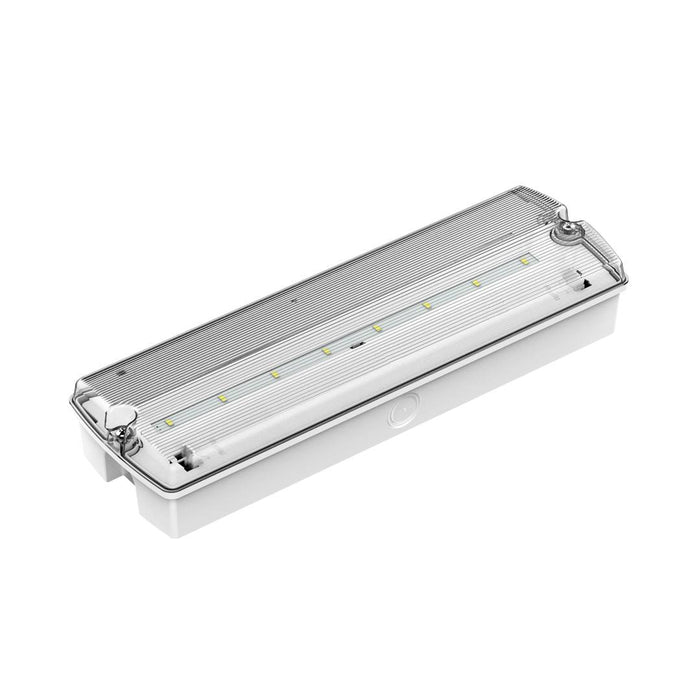

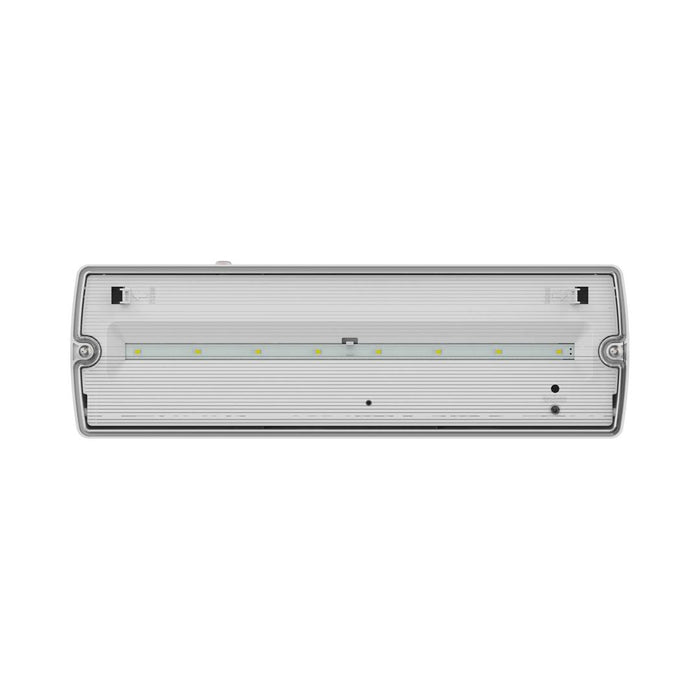

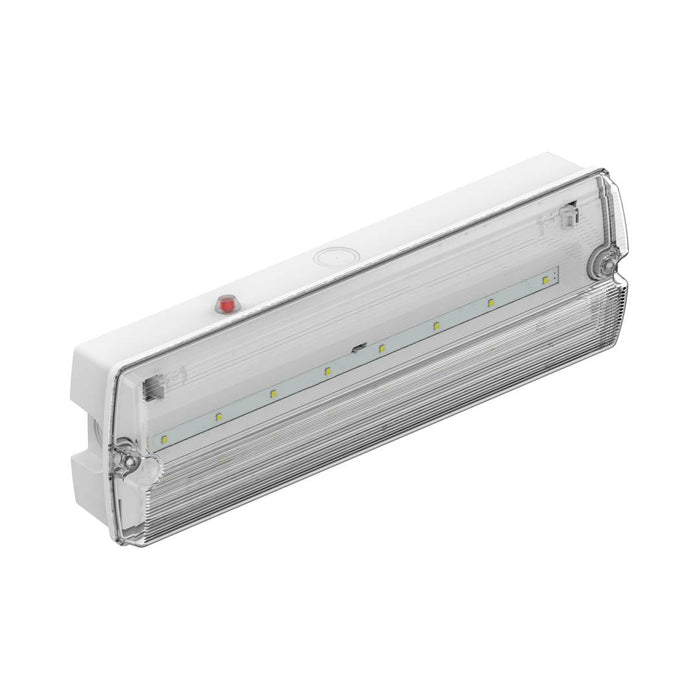

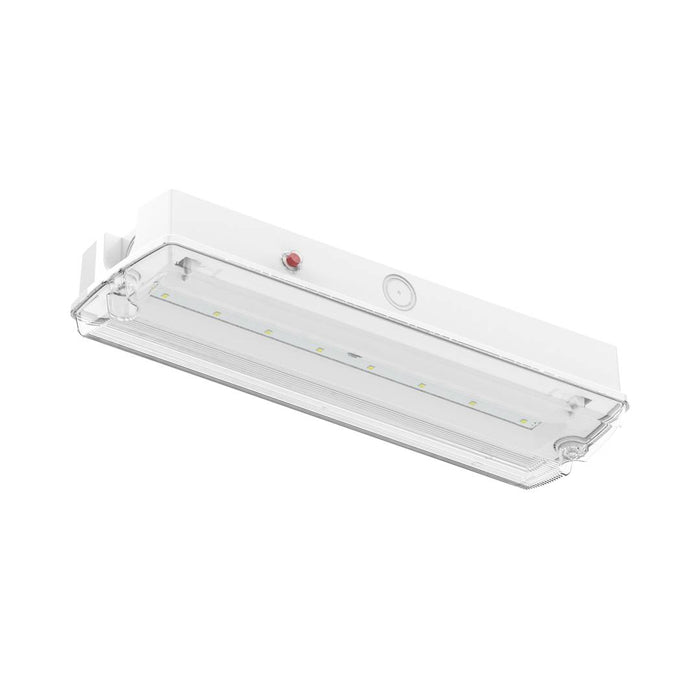

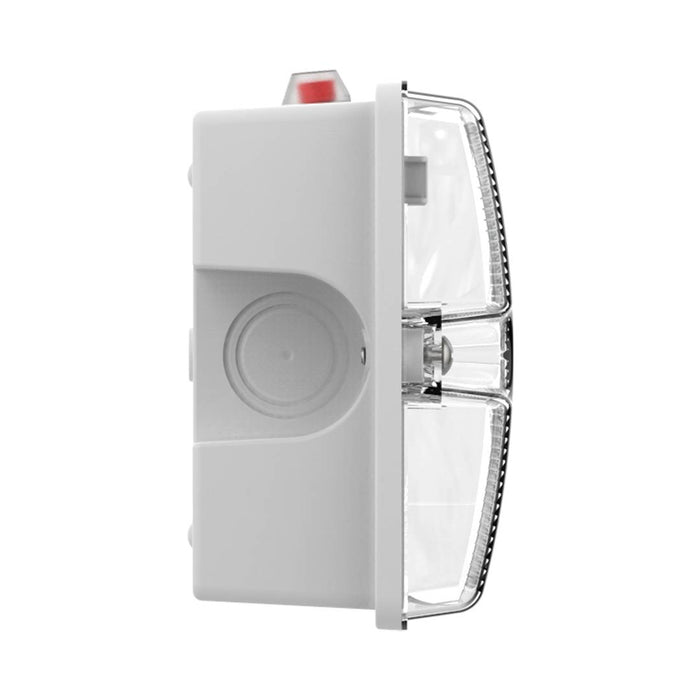

Collingwood EMBW1MS Salvus Emergency Bulkhead White Maintained/Non-Maintained Manual & Self-Test 2.5W IP65

Product Description

The Collingwood EMBW1MS Salvus Emergency Bulkhead is a versatile 2.5W LED emergency luminaire designed for open areas, escape routes and exit signage applications. Suitable for both indoor and outdoor environments, it offers maintained or non-maintained operation together with selectable manual-test and self-test functionality.

Delivering 150 lumens at 6500K with a wide 100° beam angle, the Salvus provides effective emergency illumination when required. Its rugged IP65-rated polycarbonate housing offers excellent protection against dust and water ingress, making it a dependable solution for commercial, industrial and exterior installations.

Installation is simplified by three M20 cable-entry knockouts and rear BESA box fixing points. A long-life LiFePO4 battery with temperature monitoring supports dependable emergency performance, while the included legend kit allows the bulkhead to be configured for emergency exit signage. The unit is compliant with ISO 7010 and ISO 3864.

Features & Benefits

• Versatile 2.5W LED emergency bulkhead for indoor and outdoor applications.
• Maintained and non-maintained operating options provide installation flexibility.
• Selectable manual-test and self-test functionality simplifies emergency lighting maintenance.
• Long-life LiFePO4 battery for dependable emergency operation.
• Battery temperature monitoring helps support reliable performance.
• 150 lumen output with a 6500K colour temperature.
• Wide 100° beam angle provides effective emergency light distribution.
• IP65-rated protection makes the bulkhead suitable for demanding and outdoor environments.
• Rugged polycarbonate housing provides excellent durability.
• Three M20 entry knockouts provide flexible cable-entry options.
• Rear BESA box fixing points help simplify installation.
• Legend kit included for use as an emergency exit sign.
• Suitable for open areas, escape routes, general emergency illumination and exit signage.
• Compliant with ISO 7010 and ISO 3864 emergency safety sign requirements.
• Self-test functionality can be disabled by removing the green 2-pin jumper connector.

Specifications

• Product Code: EMBW1MS
• Product Range: Salvus
• Wattage: 2.5W
• Lumen Output: 150lm
• Colour Temperature: 6500K
• Beam Angle: 100°
• IP Rating: IP65
• Operation: Maintained / Non-maintained
• Emergency Test Options: Manual test / Self-test
• Sensor: None
• Mounting Type: Wall
• Body Material: Polycarbonate
• Colour / Finish: White
• Base Shape: Rectangular
• Light Window: 1
• Length: 352mm
• Width: 110mm
• Legend Kit: Included

Data Sheet:

Click Here for Data Sheet

Instruction Manual:

Click Here for Instruction Manual
