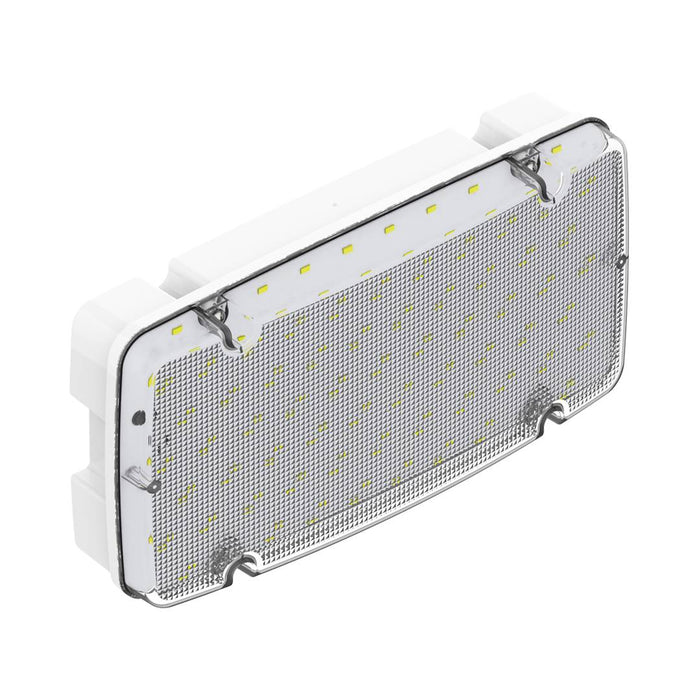

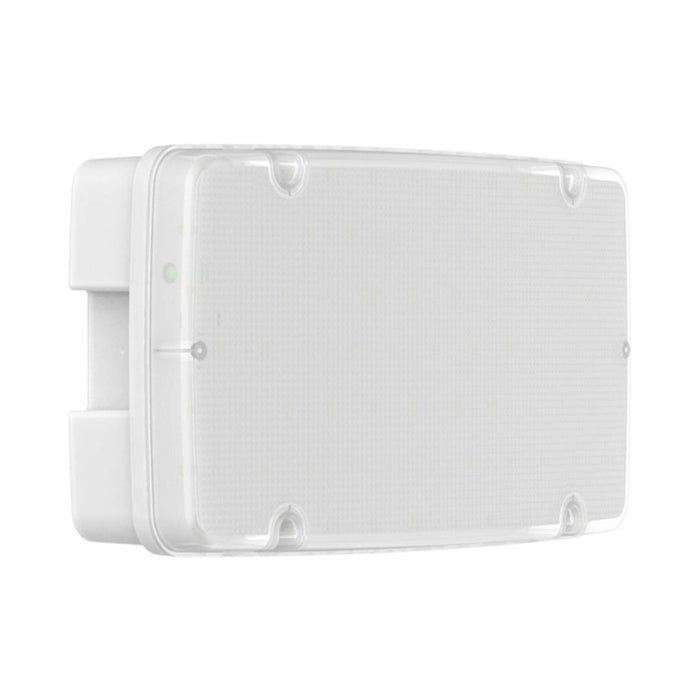

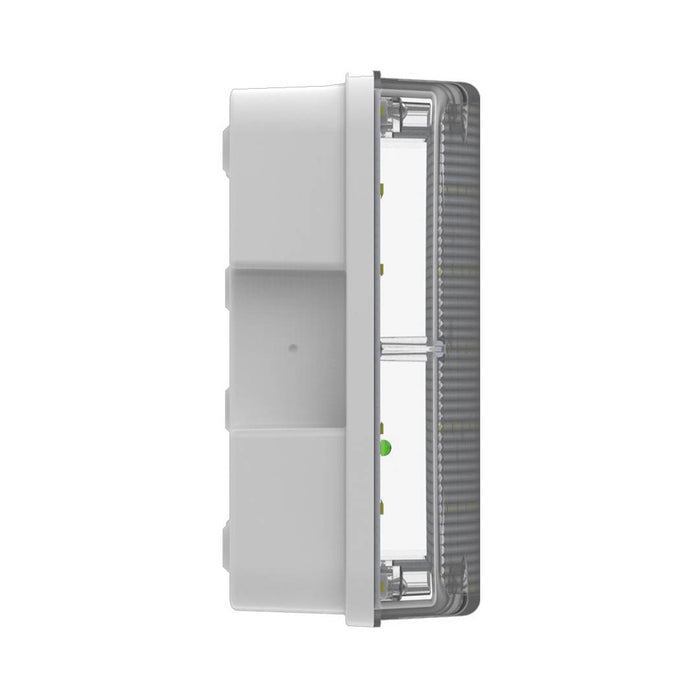

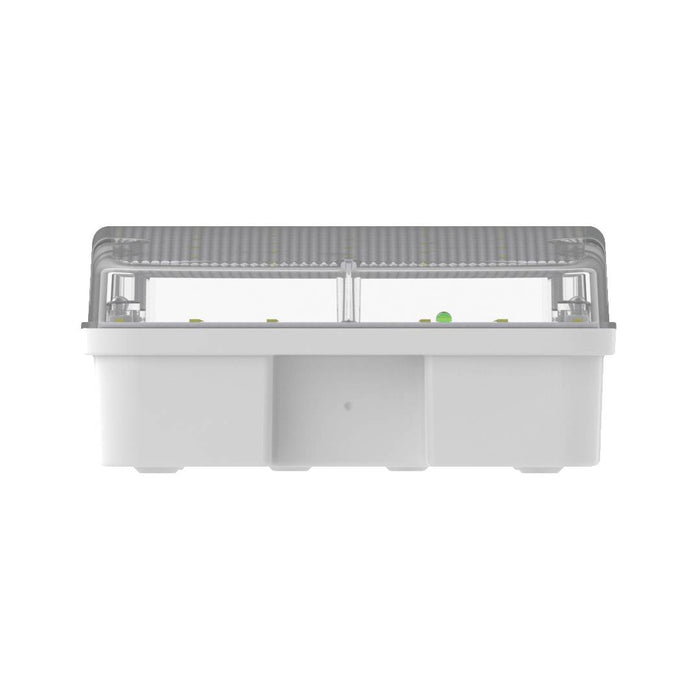

Collingwood EMBMAXWMS Salvus Max High Output Emergency Bulkhead Non-Maintained Manual & Self-Test 8W IP65

Product Description

The Collingwood EMBMAXWMS Salvus Max is a high-output, non-maintained emergency LED bulkhead designed for warehouses, industrial premises and other demanding commercial environments. Delivering 1500 lumens from an efficient 8W output, it provides dependable emergency illumination with selectable manual-test and self-test functionality for flexible commissioning and maintenance.

Designed for high-level installations, the Salvus Max can be mounted at heights of up to 15 metres. When installed using 29 metre spacings, it is designed to provide 1 lux at floor level for escape route illumination. A rugged IP65-rated polycarbonate housing provides protection against dust and water ingress, making the luminaire suitable for challenging environments.

The long-life LiFePO4 battery incorporates temperature monitoring to support reliable emergency operation. Captive screws simplify installation and maintenance, while the self-test function can be disabled when required by removing the green 2-pin jumper connector.

Features & Benefits

• High-output 8W non-maintained emergency LED bulkhead.
• Delivers 1500 lumens of 6500K emergency illumination.
• Selectable manual-test and self-test operation provides flexible commissioning and maintenance.
• Long-life LiFePO4 battery for dependable emergency performance.
• Battery temperature monitoring helps maintain reliable operation.
• Suitable for warehouses, industrial premises and other demanding commercial applications.
• Designed for mounting heights of up to 15 metres.
• Provides 1 lux escape route illumination at floor level when installed using 29 metre spacings.
• IP65-rated housing provides protection against dust and water ingress.
• Rugged polycarbonate construction provides excellent durability.
• Wide 103° beam angle supports effective emergency light distribution.
• Captive screws help make installation and maintenance quicker and easier.
• Self-test functionality can be disabled by removing the green 2-pin jumper connector.

Specifications

• Product Code: EMBMAXWMS
• Product Range: Salvus Max
• Emergency Operation: Non-maintained
• Test Options: Manual test / Self-test
• Wattage: 8W
• Lumen Output: 1500lm
• Colour Temperature: 6500K
• Beam Angle: 103°
• IP Rating: IP65
• Mounting Type: Wall
• Maximum Mounting Height: 15m
• Body Material: Polycarbonate
• Colour / Finish: White
• Base Shape: Rectangular
• Length: 328mm
• Width: 165mm
