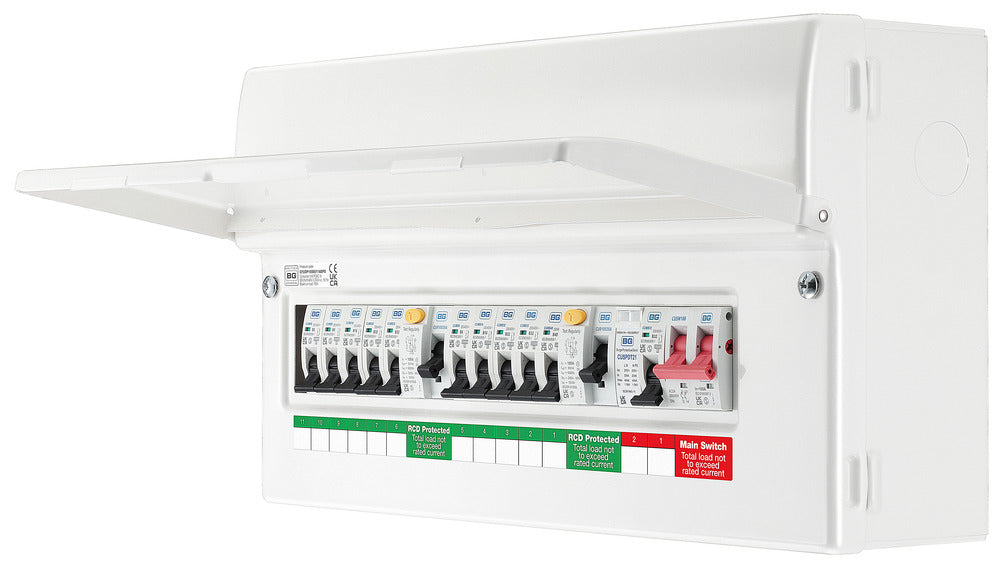

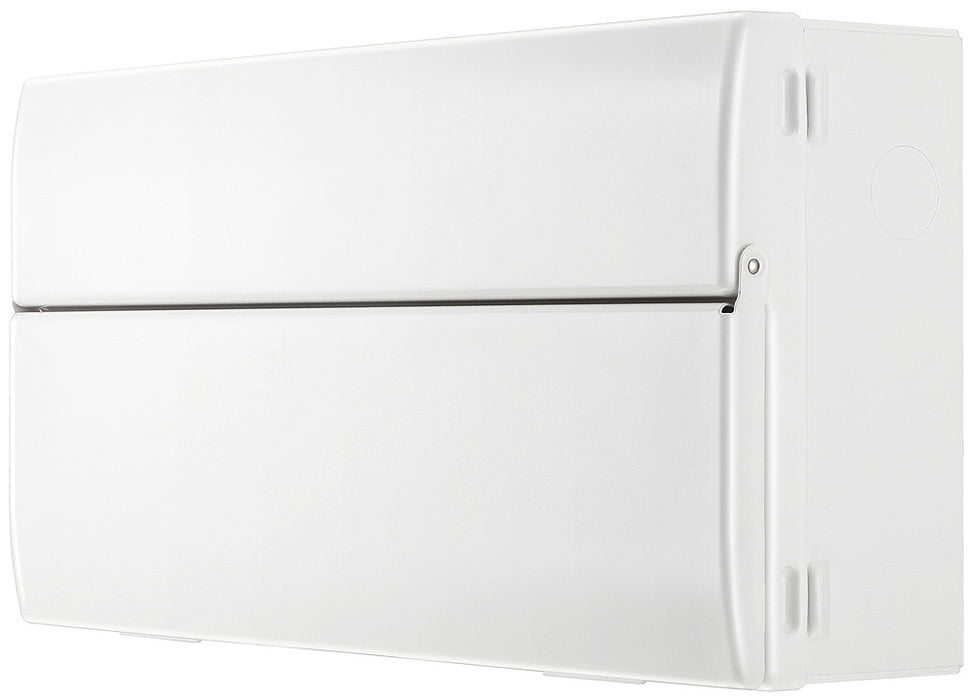

BG 19 Module 11 Way Populated + 100A Switch, 2x100A Type A 30mA RCD, SPD, 32A MCB & 10xMCBs

Features of the Consumer Units range

• Lockable cover option available

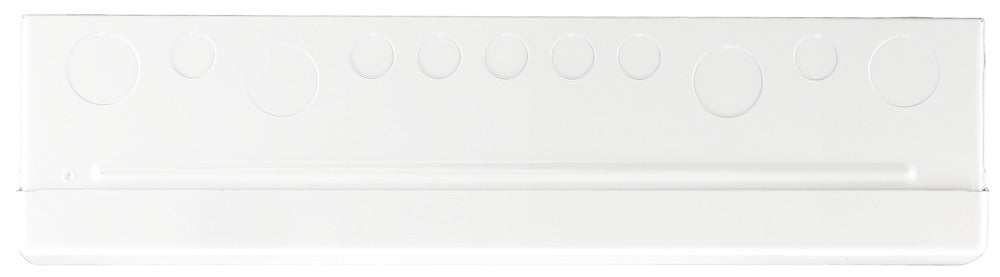

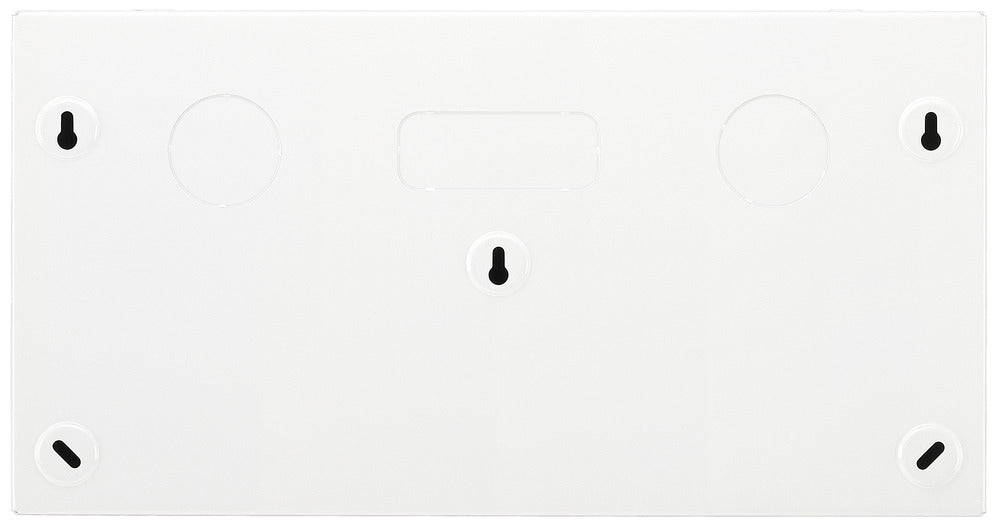

• Easy access of cables via knockouts, in sides top and bottom, plus additional rear entry knockouts
• Spirit level, to enable quick installation
• Backed-out and retained terminal screws, prevents loss of screws, and saves on installation time

Dual RCD SPD Consumer Units - Populated
This range of consumer units give the flexibility of choice of incoming arrangement and with the added inclusion of an SPD to be compliant with the 18th Edition Wiring Regulations BS7671 and comes complete with outgoing MCB’s.

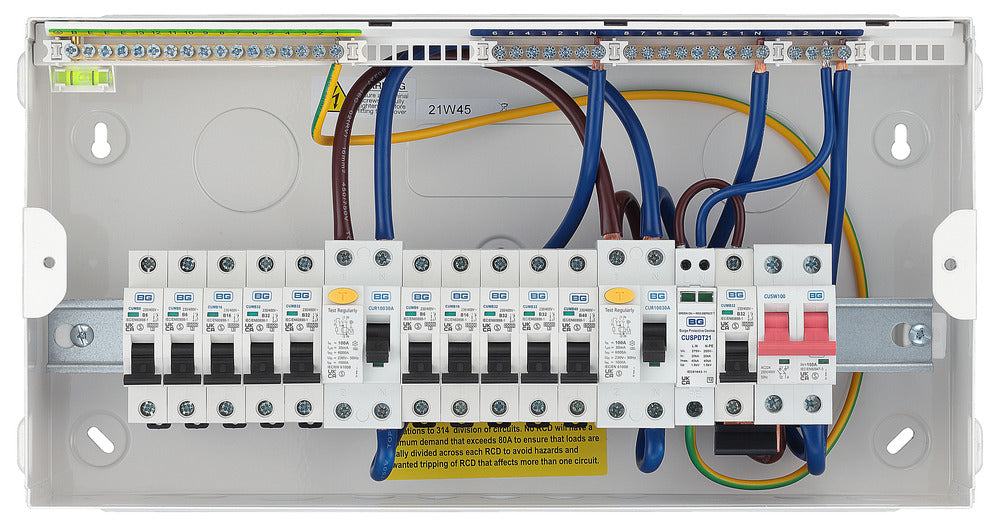

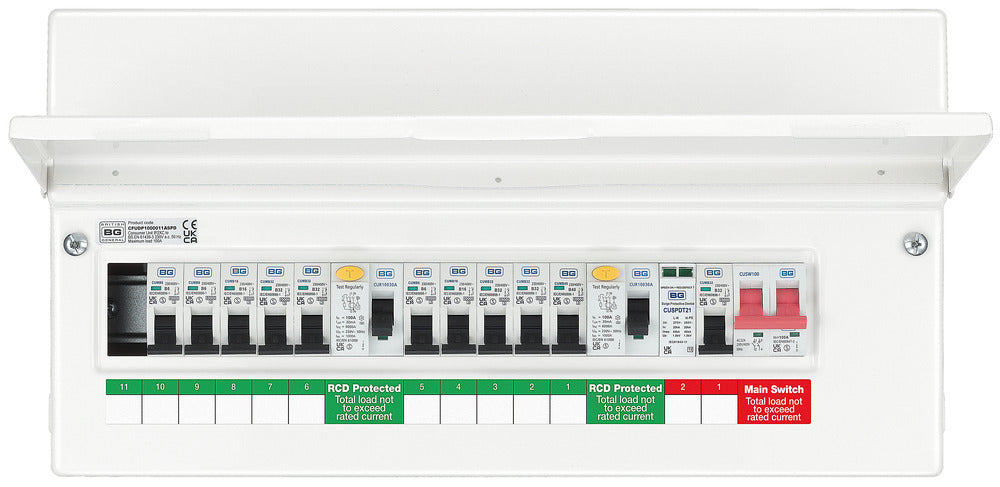

This item is 11 Way with 100A Main Switch, 2 x 100A Type A RCD + SPD & 10 MCBs

Features

• These consumer units will suit most applications with the added benefit of having a Surge Protection Device fitted which is now part of the BS7671 18th Edition Regulations
• Supplied with 100A main switch and the Surge Protection Device (pre-wired)
• The terminal and busbar provide maximum flexibility and come as high integrity as standard for a combination of protected and unprotected circuits
• A range of RCBOs, MCBs and additional BG control devices can be fitted into the consumer units
• Lockable covers also available, see accessories section
• Qty of MCBs: 10
• B Curve MCBs Included: 6Ax3, 16Ax2, 32Ax4, 40A

Circuit Protection Range Leaflet:

Click Here for Circuit Protection Range Leaflet
