BG 22 Module 18 Way Fully Recessed, 100A Type A 30mA RCD, 1xSPD & 1x32A MCB

Features of the Consumer Units range

• Lockable cover option available
• Easy access of cables via knockouts, in sides top and bottom, plus additional rear entry knockouts
• Spirit level, to enable quick installation
• Backed-out and retained terminal screws, prevents loss of screws, and saves on installation time

Recessed Consumer Units
A method of installation which allows the installer to carry out a first fix to a property, without the worry of other trades painting or plastering the outer front cover. This range also offers a smaller profile for narrow passages and where height requirements are specified. Available in Main Switch/RCD, Dual RCD, in Populated and Unpopulated versions.

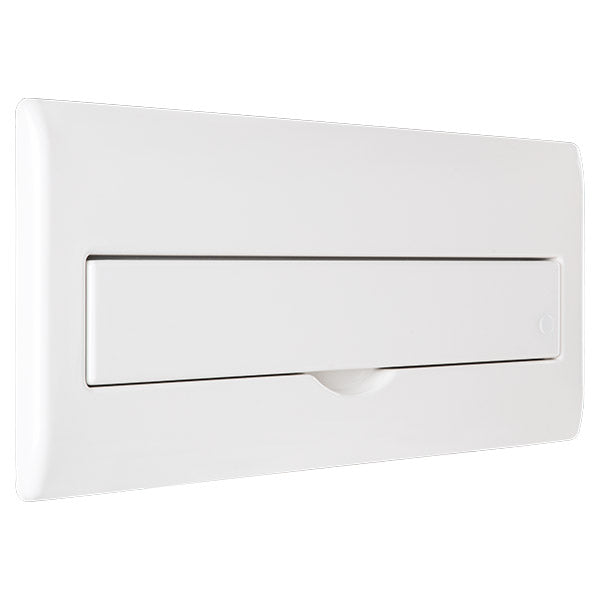

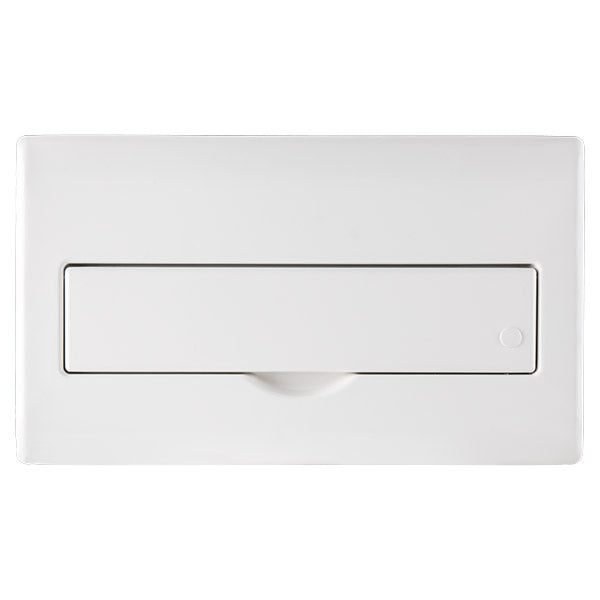

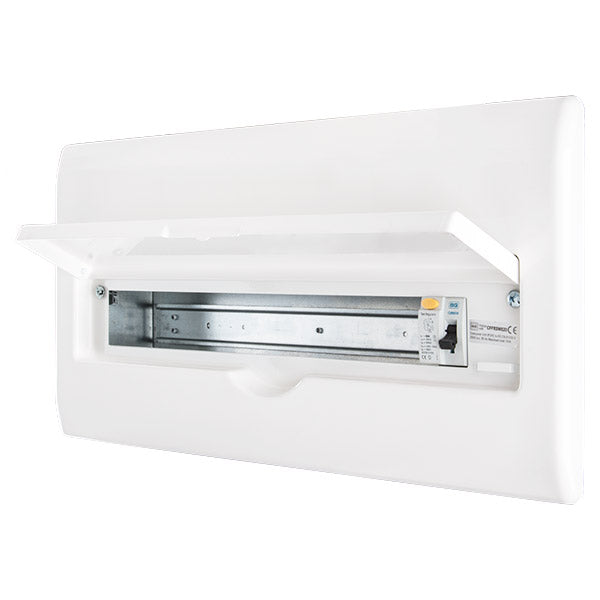

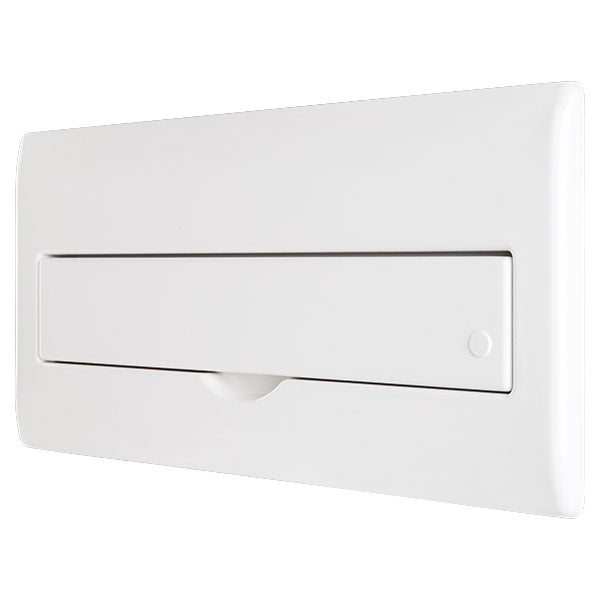

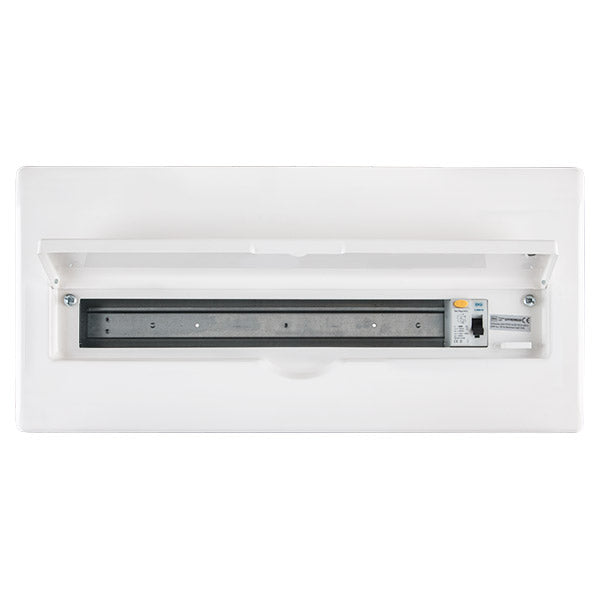

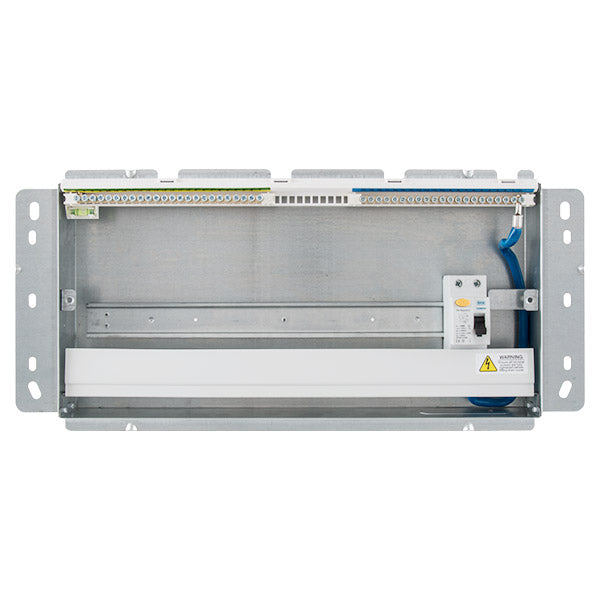

This item is 18 Way Fully Recessed with 100A RCD Type A, SPD + 32A MCB

Features

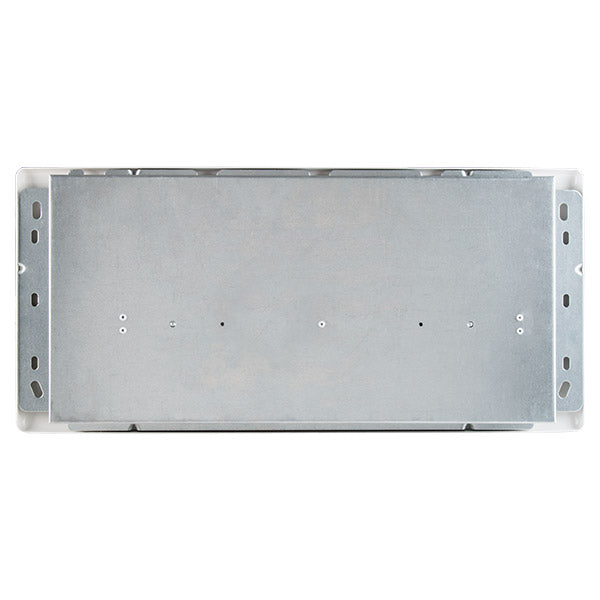

• This range of consumer units are designed to be fully recessed into a wall or cavity up to a depth of 68mm
• Amendment 3 Compliant
• If the installation is being completed to Part M of the building regulations then the consumer units should be mounted between 1350mm and 1450mm above floor level
• Each cover has capability for barrel lock installation and is fitted with cover lock blank as standard
• The CUA15 barrel lock is available separately
