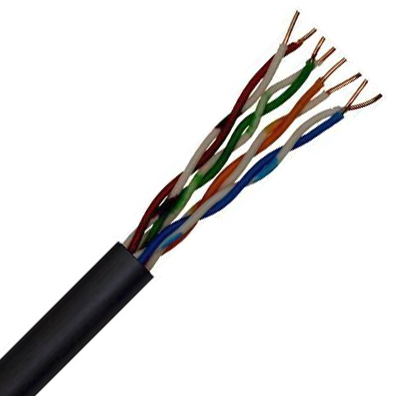

CAT6 External 4 Pair UTP PE Black Network Cable – Cut to Length (Sold Per Metre)

Product Description

The CAT6 External 4 Pair UTP Network Cable is a high-performance Ethernet cable designed for reliable data transmission in outdoor networking installations. Featuring a durable black polyethylene (PE) outer sheath, this Category 6 cable provides excellent resistance to UV exposure and environmental conditions, making it suitable for external installations above ground or underground within protective ducting.

Supporting data transfer speeds of up to 1000Mbps (1Gbps) and frequencies of up to 250MHz over distances of up to 90 metres, this HDBaseT-certified CAT6 cable is ideal for LAN networks, telecommunications, CCTV systems and other structured cabling applications.

Manufactured with solid bare copper conductors and high-density polyethylene (HDPE) insulation, the cable delivers dependable connectivity and consistent signal performance. Its unscreened twisted pair (UTP) construction provides a flexible, cost-effective solution for networking installations where additional shielding is not required.

Supplied cut to length and sold per metre, this external CAT6 network cable allows installers to order the exact quantity required, helping to minimise waste and simplify installation.

Key Features

• CAT6 Network Cable: Category 6 Ethernet cable suitable for high-speed data networking and telecommunications applications.
• High-Speed Performance: Supports data transfer speeds up to 1000Mbps (1Gbps) and operating frequencies up to 250MHz.
• External PE Sheath: Durable black polyethylene outer jacket designed for outdoor installations.
• UV Resistant: Provides protection against sunlight exposure for above-ground external cable runs.
• 4 Pair UTP Construction: Unscreened twisted pair design offers a flexible and economical networking solution.
• Solid Copper Conductors: Bare copper conductors provide reliable electrical performance and data transmission.
• HDBaseT Certified: Suitable for compatible HDBaseT connectivity applications.
• Versatile Installation: Suitable for external surface installations and underground routing within protective ducting.
• Cut to Length: Sold per metre, allowing installers to purchase the required cable length.
• Multiple Applications: Ideal for structured cabling, LAN networks, CCTV systems and telecommunications installations.

Technical Specifications

• Product Type: External CAT6 Network Cable
• Category: Category 6 (CAT6)

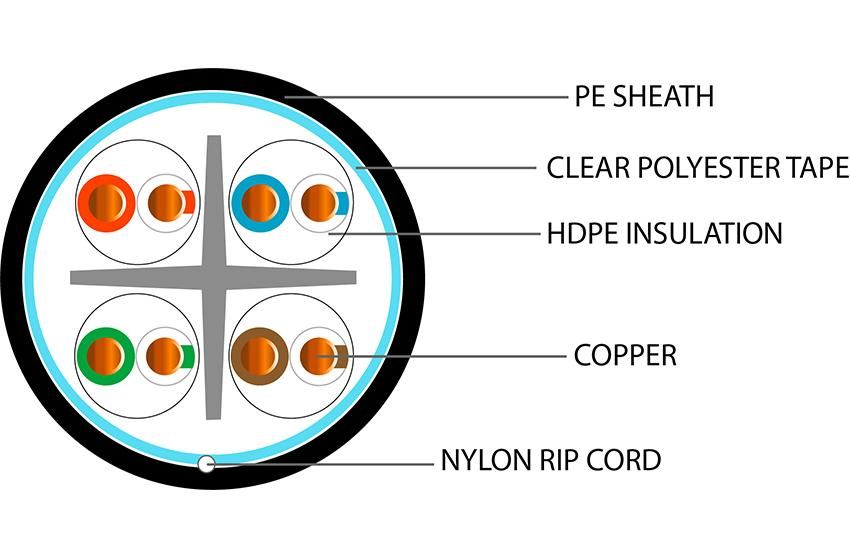

• Cable Construction: 4 Pair UTP (Unscreened Twisted Pair)
• Conductor Type: Solid Core
• Conductor Material: Bare Copper
• Insulation Material: High-Density Polyethylene (HDPE)
• Outer Sheath Material: Polyethylene (PE)
• Sheath Colour: Black
• Maximum Data Transfer Speed: 1000Mbps (1Gbps)
• Operating Frequency: Up to 250MHz
• Maximum Stated Distance: 90 Metres
• Certification: HDBaseT Certified
• CPR Classification: Fca
• Installation: External, Above Ground or Underground Within Ducting
• Supplied Length: 1 Metre (Cut to Length)
• Product Reference: SFX/C6-UTP-PE-BLK-1

Standards and Compliance

• ISO/IEC 11801
• ANSI/TIA 568-C.2
• EMC Directive 2014/30/EU
• Low Voltage Directive 2014/35/EU
• RoHS Directive 2011/65/EU
• CPR Classification: Fca

Typical Applications

• Outdoor Ethernet and LAN network installations
• External CCTV and IP camera connectivity
• Structured data cabling systems
• Telecommunications infrastructure
• HDBaseT-compatible networking applications
• Underground network cable installations within protective ducting

Ordering Information: This CAT6 external network cable is sold per metre and supplied cut to length. Select the required quantity based on the total cable length needed for your installation.

Data Sheet

Download Product Data Sheet
