CAT6 External 4 Pair UTP PE Black Network Cable – 100m

Product Description

The CAT6 External 4 Pair UTP PE Black Network Cable is a high-performance Category 6 Ethernet cable designed for reliable data transmission in outdoor networking and telecommunications installations. Supplied in a convenient 100-metre length, this HDBaseT-certified cable features a durable, UV-resistant black polyethylene (PE) outer sheath, making it suitable for external cable runs above ground or underground within protective ducting.

Supporting data transfer speeds of up to 1000Mbps (1Gbps) and frequencies of up to 250MHz over distances of up to 90 metres, this CAT6 network cable provides dependable connectivity for structured cabling systems, local area networks (LANs), CCTV installations and telecommunications infrastructure.

Manufactured with solid bare copper conductors and high-density polyethylene (HDPE) insulation, the cable offers consistent signal transmission and long-lasting performance. Its 4-pair unscreened twisted pair (UTP) construction provides a cost-effective, flexible solution for networking applications where additional cable shielding is not required.

The robust polyethylene outer jacket offers excellent resistance to UV exposure, making this external CAT6 cable suitable for demanding outdoor environments. Supplied in a 100m length, it can be cut to the required size on-site, helping installers reduce cable waste and complete installations efficiently.

Key Features

• Category 6 Ethernet Cable: High-performance CAT6 network cable designed for reliable data transmission and structured cabling installations.
• 100 Metre Length: Supplied in a 100m length, ideal for external networking projects and telecommunications installations.
• High-Speed Data Transmission: Supports transfer speeds of up to 1000Mbps (1Gbps) and operating frequencies up to 250MHz.
• UV-Resistant PE Sheath: Durable black polyethylene outer jacket provides protection against sunlight exposure and outdoor environmental conditions.
• 4 Pair UTP Construction: Unscreened twisted pair design offers a flexible and economical solution for network cabling.
• Solid Copper Conductors: Bare copper conductors provide dependable connectivity and consistent electrical performance.
• HDBaseT Certified: Suitable for compatible HDBaseT networking and signal transmission applications.
• External Installation: Designed for above-ground outdoor cable runs and underground installation within protective ducting.
• HDPE Insulation: High-density polyethylene conductor insulation supports reliable cable performance.
• Cut to Required Length: The 100m cable can be cut on-site to suit individual installation requirements.
• Versatile Applications: Suitable for LAN networks, CCTV systems, telecommunications and structured data cabling.

Technical Specifications

• Product Type: External CAT6 Network Cable
• Product Reference: SFX/C6-UTP-PE-BLK-100
• Cable Category: Category 6 (CAT6)

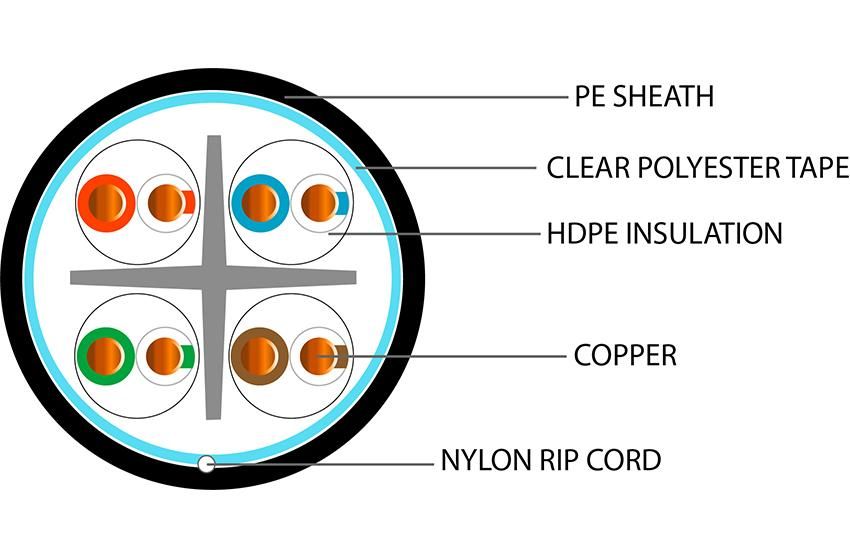

• Cable Construction: 4 Pair UTP (Unscreened Twisted Pair)
• Conductor Type: Solid Core
• Conductor Material: Bare Copper
• Insulation Material: High-Density Polyethylene (HDPE)
• Outer Sheath Material: Polyethylene (PE)
• Sheath Colour: Black
• Maximum Data Transfer Speed: 1000Mbps (1Gbps)
• Operating Frequency: Up to 250MHz
• Maximum Stated Distance: 90 Metres
• Certification: HDBaseT Certified
• UV Resistance: Yes
• CPR Classification: Fca
• Installation: External, Above Ground or Underground Within Ducting
• Cable Length: 100 Metres

Standards and Compliance

• ISO/IEC 11801
• ANSI/TIA 568-C.2
• EMC Directive 2014/30/EU
• Low Voltage Directive 2014/35/EU
• RoHS Directive 2011/65/EU
• CPR Classification: Fca

Typical Applications

• External Ethernet and LAN network installations
• Outdoor CCTV and IP camera connectivity
• Structured data cabling systems
• Telecommunications infrastructure
• HDBaseT-compatible installations
• Underground network cabling within protective ducting
• Commercial and residential networking projects

Installation Information: This CAT6 external network cable is supplied in a 100-metre length and can be cut to suit installation requirements. For underground installations, the cable should be installed within suitable protective ducting.

Data Sheet

Download Product Data Sheet
