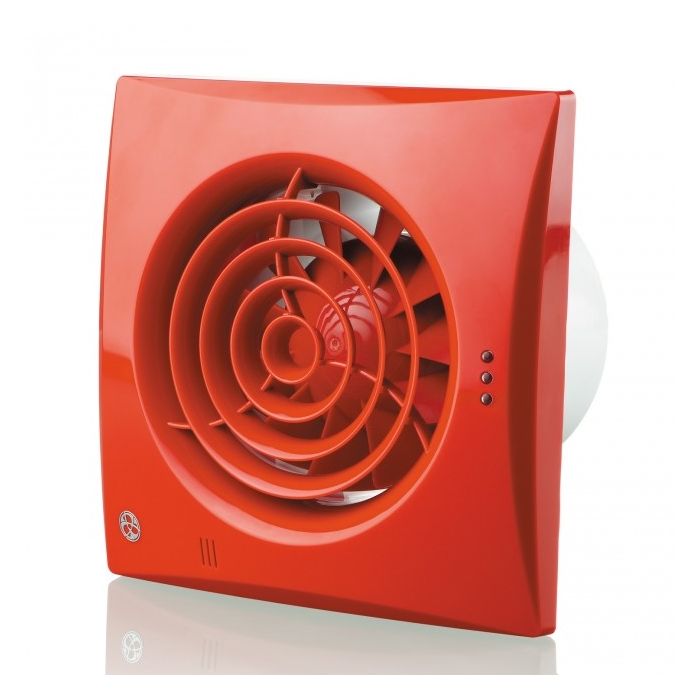

Blauberg CALM-RED-125-H Calm Low Noise Energy Efficient Bathroom Utility Room Extractor Fan with Humidity Sensor Red - 5" 125mm
Blauberg CALM-RED-125-H Calm Low Noise Energy Efficient Bathroom Utility Room Extractor Fan with Humidity Sensor Red - 5" 125mm
Product DescriptionBlauberg Calm is a unique range of contemporary extractor fans that offer significant advantages over traditional ventilators designed for the home. Our Calm extractor fan range delivers higher airflow rates and less noise because of the way it has been designed. In addition, Calm extractor fans are offered in a range of colours that will fit any modern bathroom, kitchen or wet room. It will also suit a more traditional style.
Blauberg Calm is Building Regulation Part F and L compliant and can be mounted within zone 1 and 2 of a bathroom, shower or sink area. The fitted shutter ensures that back draughts are kept to a minimum when the fan is not in use without the need for an external shutter or draught excluder. There are plenty of control options to choose from depending on your needs from simple 2-wire pull cord operation, humidity and damp control options, to fully automatic PIR movement detection.
- Stylish 125mm 5" designer bathroom, kitchen extractor fan finished in red.
- German engineered design with anti-vibration mounts ensures low noise, only 32 dB(A) sound level.
- Rated to IP45 and suitable for mounting in bathroom zones 1 & 2.
- Mixed flow impeller blade design enables longer duct runs to be used.
- 125mm, 5" diameter duct connection.
- An impressive 187 m3/hour extract airflow rate 52 l/s.
- Fitted with an anti-back draft shutter.
- Supplied with a built-in humidity sensor & run-on timer.
- Fitted with a German Blauberg motor and backed with a 5 year warranty.
- Can be wall or ceiling mounted.
- Energy rating: A+
This CALM 125 H fan is fitted with a built-in humidity sensor & run-on timer. Two small knobs are mounted inside the fan and can be used to adjust the run on time from 2 to 30 minutes and the relative humidity level. The electrical supply is normally provided from your household lighting circuit and the fan will require a live, switched live & neutral connections.
If the run on timer is not required, a short link can be made from L to LT terminals.
Please ensure that you are a competent person or consult a qualified electrician for any advise required.
Normally, extra care is needed when selecting extractor fans for bathroom and shower rooms as the areas around them normally require SELV (safety extra low voltage) fans with 12v transformers. For ventilation purposes, these sensitive areas are called Bathroom Zones 1 & 2.
This is to ensure that the risk of electric shock is kept to a minimum. However, as Blauberg Calm extractor fans have a high IP rating (IP45), SELV 12v extractor fans are not required. All that is needed is to ensure that your Calm extractor fan is connected to an RCD (residual current devise). If in doubt, any qualified electrician can explain what is required to meet current regulations or feel free to contact us for further advice.
Data Sheet:
Click Here for Data SheetUser Guide:
Click Here for User Guide
