Brackenheath BR2002 18W IP44 CCT3 Commercial LED Downlight – 3000K/4000K/6000K, White, Non-Dimmable

Product Description

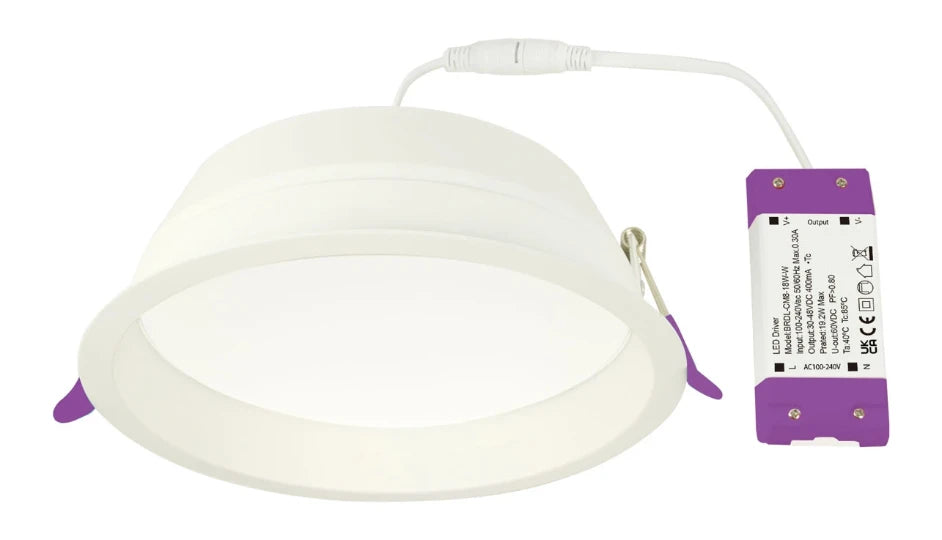

The Brackenheath BR2002 18W CCT3 Commercial LED Downlight is a backlit, high-performance fitting designed to deliver uniform light distribution and improved contrast across commercial interiors. Ideal for offices, education, retail and corridors, this IP44-rated downlight offers selectable colour temperatures and excellent efficiency, making it a flexible choice for new and retrofit installations.

Features

• Ceiling-mounted LED downlight for commercial applications.
• 18W output delivering 1800 lumens (system) with CCT3 selectable: 3000K (Warm White), 4000K (Cool White) and 6000K (Daylight).
• 90° beam angle and CRI ≥80 for comfortable, accurate lighting.
• IP44 rating for protection against small solid objects and water splashes.
• UGR <22 in line with BS EN 12464-1 for low-glare visual comfort.
• Flicker-free, ENEC-approved LED driver for stable, quality light.
• Raised retaining springs suitable for ceiling tiles up to 40mm deep.
• Compatible with plug-in emergency pack (BR1129 – sold separately).
• Simple CCT selection via rear-mounted three-position switch (3000K/4000K/6000K).
• Backlit design ensuring even, uniform light distribution.
• Robust steel body with polycarbonate diffuser.
• 5-year guarantee for long-term peace of mind.

Technical Specification

• Voltage: 220–240VAC
• Frequency: 50–60Hz
• Power Factor: ≥0.9
• Electrical Class: Class II
• Colour Temperature (switch selectable): 3000K (Warm White), 4000K (Cool White), 6000K (Daylight White)
• Beam Angle: 90°
• CRI: ≥80
• Construction: Steel body, PC diffuser
• IP Rating: IP44
• Dimmable: No – non-dimmable
• Light Source: Non-replaceable LED
• Lifespan: 50,000 hours
• Operating Temperature: -20°C to +40°C
• Lumens (system): 18W – 1800 lm
• Lumens (LED source): 18W – 2300 lm
• Luminous Efficiency (source): 127 lm/W
• Standards: BS EN 60598-1
• Cut-out Size: 200–210mm
• Diameter: 230mm
• Height: 79mm
