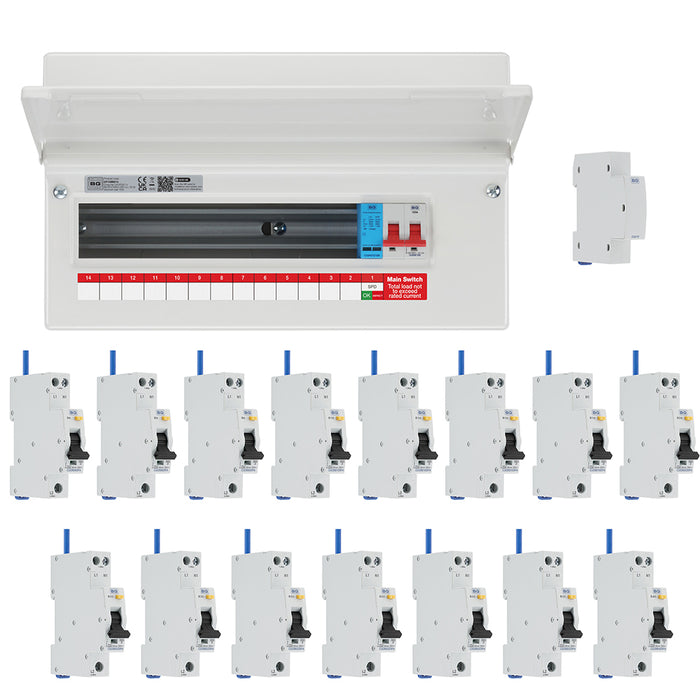

BG Fortress CF19MS16 19 Module 16 Way 100A Main Switch Consumer Unit with T2 SPD + 15 Bi-Directional DP RCBOs & 1x CUA19 FREE Blank

19 Module 16 Way 100A Main Switch Consumer Unit with Type 2 SPD.

This comes with 15 Bidirectional RCBOs Double Pole, Single Module, B Curve, 6kA, 30mA, Type A

• 3x 6A
• 1x 10A
• 3x 16A
• 1x 20A
• 6x 32A
• 1x 40A

Dimensions (HxWxD)mm for CF19MS16: 442 x 231 x 116mm

BG Fortress Circuit Protection

This range of consumer units offer a flexible solution for the 18th Edition Wiring Regulations BS7671.
Available in a number of sizes from 6 - 19 useable ways and supplied with 100A main switch and type 2 SPD.
MCB, RCBO, AFDD, and Control Devices can be fitted into the Consumer Unit depending on the circuit requirements.
A large range of consumer unit accessories are available, please visit the our website for more information.

Description:

This BG 19?module consumer unit provides a flexible and space?efficient solution for installations with higher circuit demands, offering 16 usable ways within a well?structured enclosure. Supplied unpopulated with a 100A main switch isolator and an integrated Type 2 surge protection device, it allows installers to create customised circuit protection layouts while adding protection against transient overvoltages, supporting efficient installation, organised internal wiring and a clean, professional finished appearance for larger domestic or light commercial applications.
