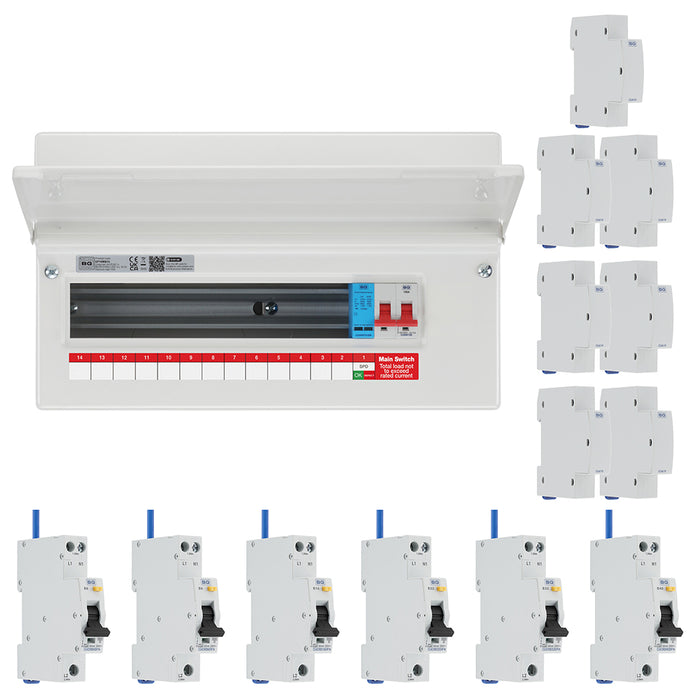

BG Fortress CF16MS13 16 Module 13 Way 100A Main Switch Consumer Unit with T2 SPD + 6 Bi-Directional DP RCBOs & 7x CUA19 FREE Blanks

16 Module 13 Way 100A Main Switch Consumer Unit with Type 2 SPD.

This comes with 6 Bidirectional RCBOs Double Pole, Single Module, B Curve, 6kA, 30mA, Type A

• 2x 6A
• 1x 16A
• 2x 32A
• 1x 40A
• 7x BLANK (CUA19)

Dimensions (HxWxD)mm for CF16MS13: 388 x 231 x 116mm

BG Fortress Circuit Protection

This range of consumer units offer a flexible solution for the 18th Edition Wiring Regulations BS7671.
Available in a number of sizes from 6 - 19 useable ways and supplied with 100A main switch and type 2 SPD.
MCB, RCBO, AFDD, and Control Devices can be fitted into the Consumer Unit depending on the circuit requirements.
A large range of consumer unit accessories are available, please visit the our website for more information.

Description:

This BG 16?module consumer unit provides a practical and future?ready solution for domestic and light commercial installations, offering 13 usable ways within a compact, well?organised enclosure. Supplied unpopulated with a 100A main switch isolator and an integrated Type 2 surge protection device, it enables installers to configure bespoke circuit protection layouts while adding protection against transient overvoltages, supporting efficient installation, clear cable management and a clean, professional finished appearance.

Data Sheet:

Data Sheet for CF16MS13
Data Sheet for Bi-Directional DP RCBO Type A 6kA
