BG Fortress CFO5HP2G 5 Module 2 Way IP65 Heat Pump Consumer Unit with 63A Type B+HP RCD, SPD & 20A C Curve MCB

Product Overview

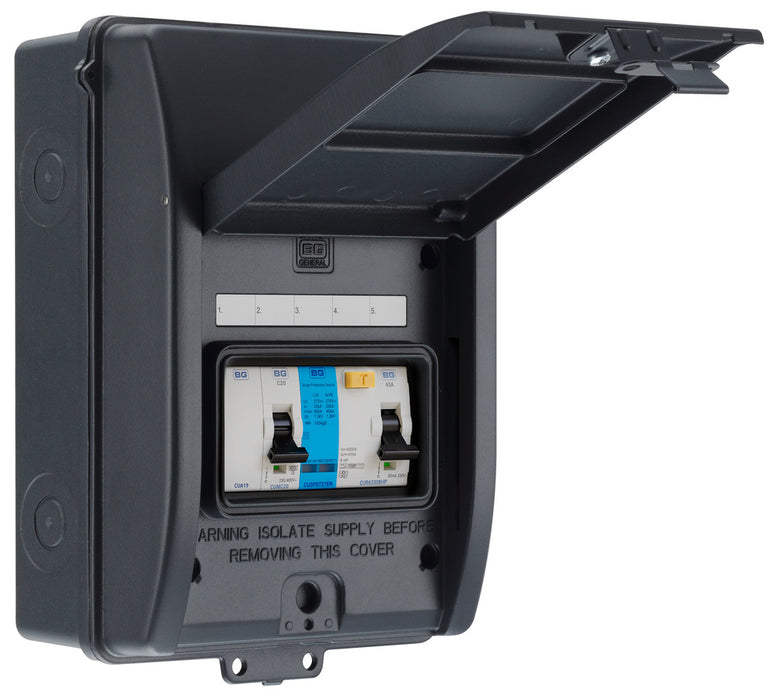

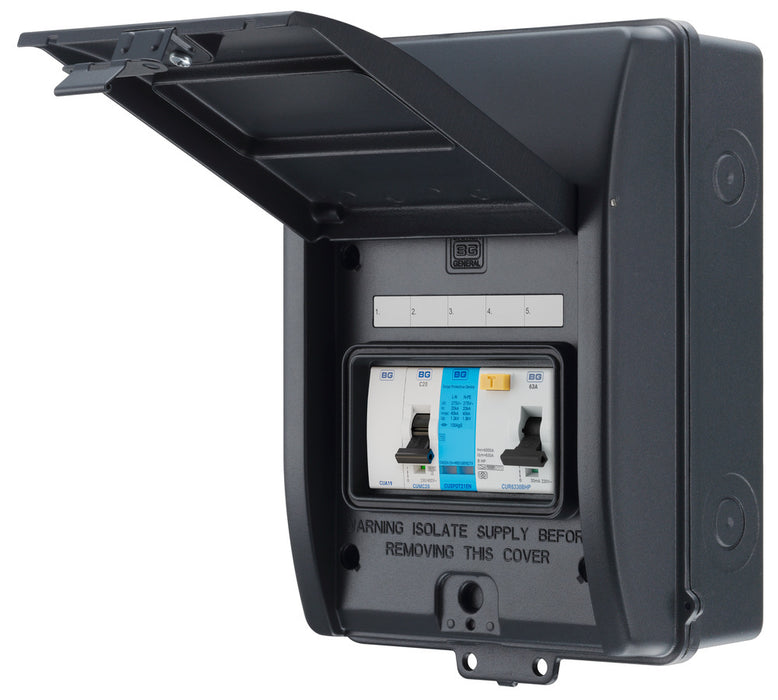

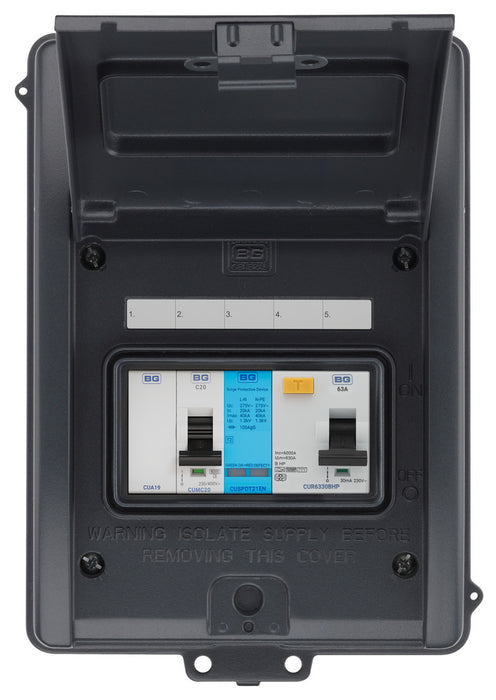

The BG Fortress CFO5HP2G is a pre-populated 5 module, 2 way heat pump consumer unit specifically designed for modern heat pump installations. Supplied ready for installation, the unit combines a 63A 30mA Type B+HP RCD, Type 2 surge protection device (SPD) and 20A C Curve MCB within a robust anthracite grey IP65 enclosure.

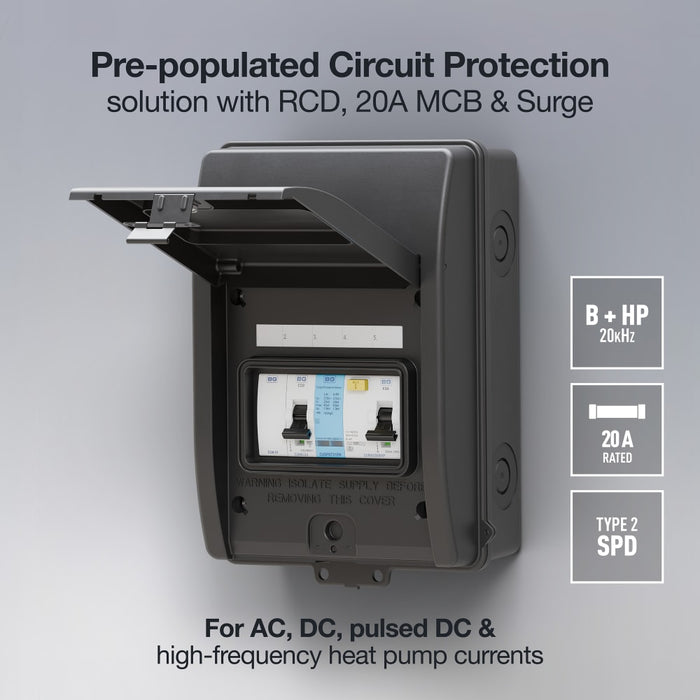

Engineered for the electrical characteristics associated with inverter-driven heat pump systems, the Type B+HP RCD provides detection for AC, DC, pulsed DC and high-frequency currents generated by BLDC motors. Integrated surge handling accommodates initial inverter start-up currents, helping to reduce unwanted nuisance tripping while providing dependable protection.

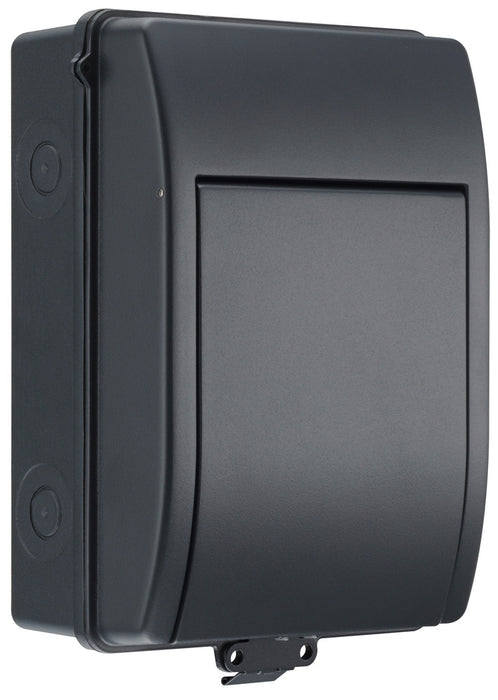

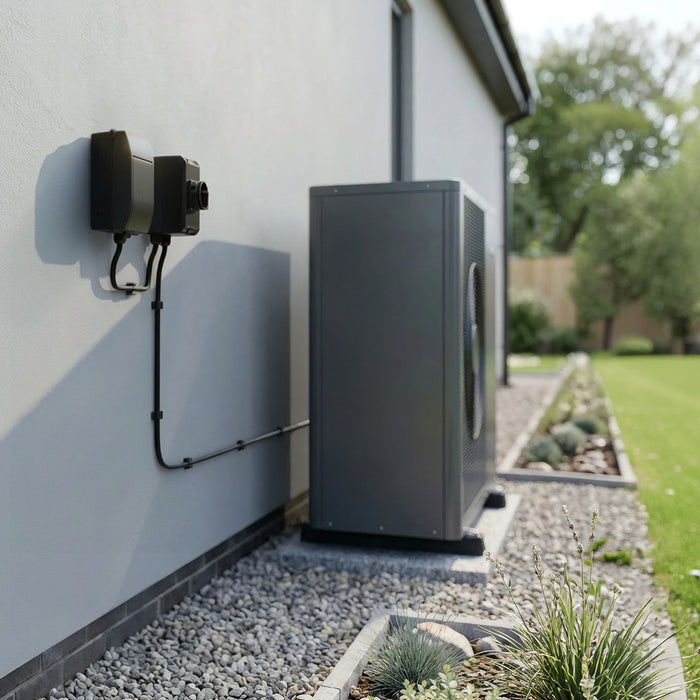

The fire-rated, all-metal enclosure provides IP65 protection against dust and water, making the CFO5HP2G suitable for both internal and external heat pump installations. Designed for installations in accordance with BS 7671 wiring regulations, the unit is supplied pre-populated with the essential components required for a straightforward and professional installation.

Key Features

• Pre-populated consumer unit specifically designed for heat pump installations
• 5 module, 2 way configuration
• Supplied with 63A 30mA Type B+HP RCD
• Type B+HP RCD designed for inverter-driven heat pump applications
• Detects AC, DC, pulsed DC and high-frequency currents

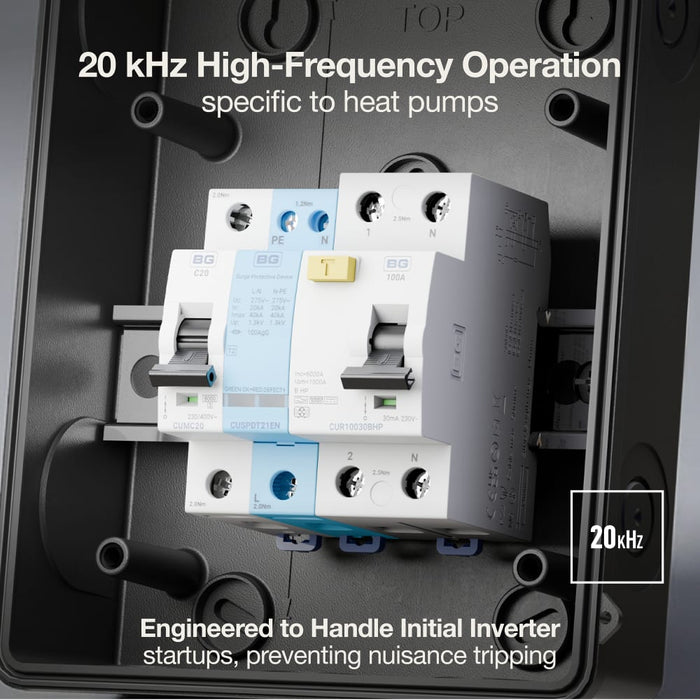

• High-frequency current detection capability up to 20kHz
• 150mA minimum trip threshold for high-frequency currents above 1kHz
• Integrated surge handling for initial inverter start-ups to help minimise nuisance tripping
• Supplied with 20A C Curve MCB
• Type 2 surge protection device (SPD) included

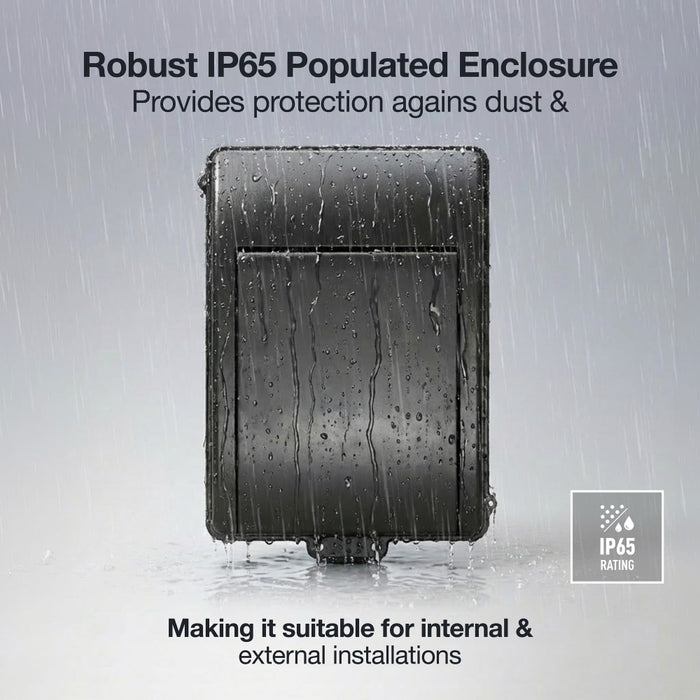

• IP65 rated for protection against dust and water

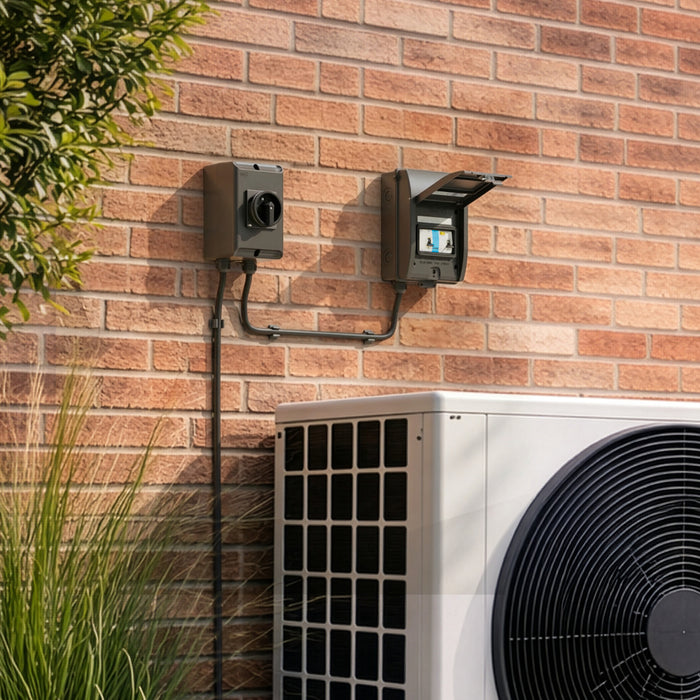

• Suitable for internal and external installations
• Fire-rated all-metal construction
• Anthracite grey enclosure
• Pre-populated and ready for installation

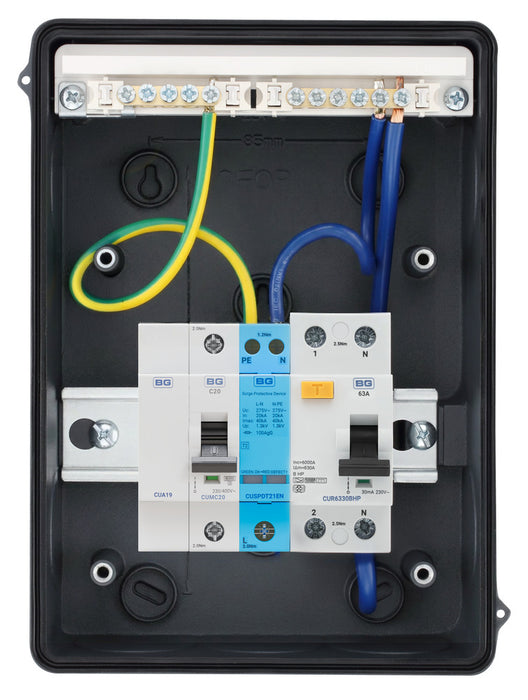

• Supplied with DIN rail, neutral cable, neutral and earth terminals, labels, busbar and cover blanks

Specification

• Manufacturer: BG Electrical
• Range: Fortress
• Product Code: CFO5HP2G
• Package Name: CFO5HP2G-01
• Application: Heat Pump Installations
• Number of Ways: 2
• Number of Modules: 5
• RCD Type: Type B+HP
• RCD Rating: 63A
• Rated Sensitivity: 30mA
• RCD Mechanism: Electro/Mechanical
• Trip Speed: <0.1s
• Maximum Load: 63A
• MCB: 1 x 20A C Curve
• Surge Protection: Type 2 SPD
• IP Rating: IP65
• Front Plate Material: Cast Aluminium ADC12
• Construction: All Metal
• Colour: Grey / Anthracite Grey
• Fitted Lock: No
• Operating Temperature: -25°C to +40°C
• Installation: Internal / External
