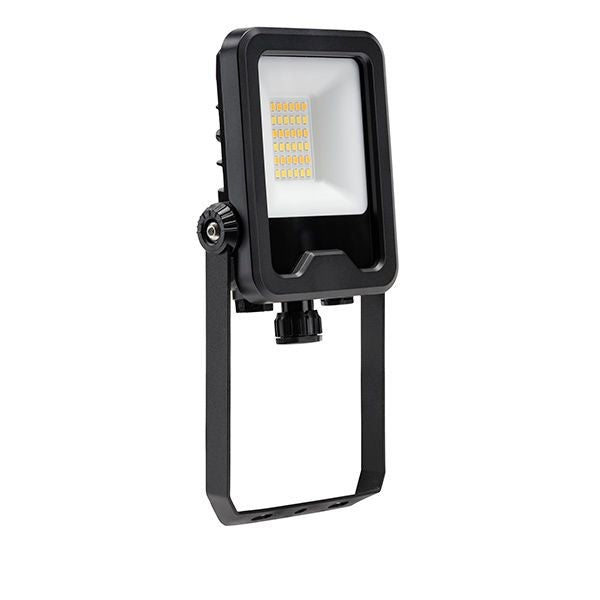

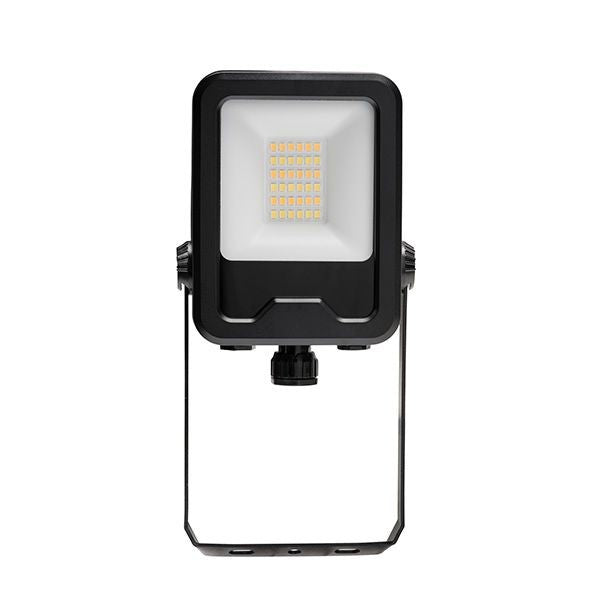

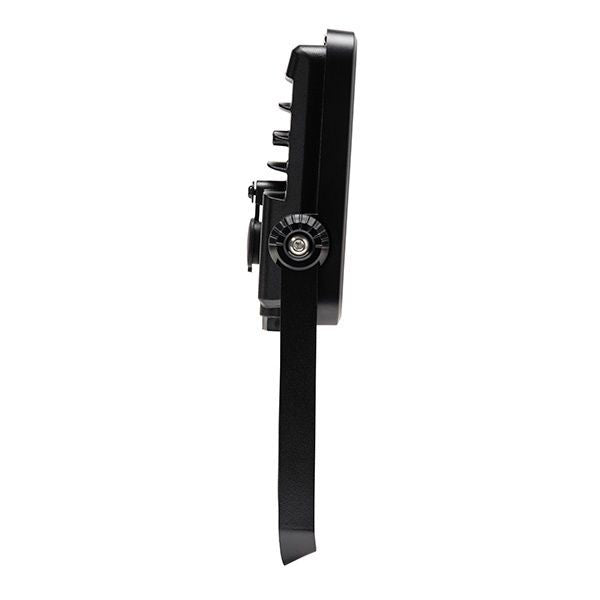

BELL 72031 20W Skyline Omni LED Floodlight – 3CCT IP65
The BELL 72031 Skyline Omni 20W LED Floodlight is a powerful, energy-efficient outdoor lighting solution designed to deliver bright, reliable illumination for residential, commercial and coastal environments. Featuring selectable colour temperatures, a compact design and durable marine-grade treated construction, this versatile LED floodlight combines excellent lighting performance with long-lasting durability.
Equipped with 3CCT selectable technology, the Skyline Omni allows users to switch between 3000K warm white, 4000K cool white and 5000K daylight to suit different lighting applications. Producing up to 2469 lumens with a power consumption of just 20W, it provides efficient illumination for driveways, gardens, building exteriors, pathways and commercial outdoor spaces.
Designed to withstand demanding environmental conditions, the BELL Skyline Omni features a C3-M marine-grade treated finish, an IP65 weatherproof rating and IK07 impact resistance. Its tempered glass cover improves optical and thermal performance, while the adjustable angled mounting bracket enables flexible installation and precise light positioning.
With integrated 2kV surge protection, a rated lifespan of 50,000 hours and bat-friendly operation at 3000K, the BELL 72031 offers a dependable outdoor lighting solution for a wide range of applications.
Key Features
-
20W LED Floodlight: Energy-efficient outdoor lighting delivering up to 2469 lumens.
-
3CCT Selectable: Choose between 3000K warm white, 4000K cool white and 5000K daylight.
-
High Luminous Efficacy: Delivers 109–123 lumens per watt for efficient lighting performance.
-
C3-M Marine-Grade Treatment: Suitable for coastal locations and harsh outdoor environments.
-
IP65 Weatherproof Rating: Provides protection against dust ingress and water jets.
-
IK07 Impact Resistance: Durable construction offering protection against mechanical impacts.
-
Tempered Glass Cover: Enhances optical efficiency, heat management and product durability.
-

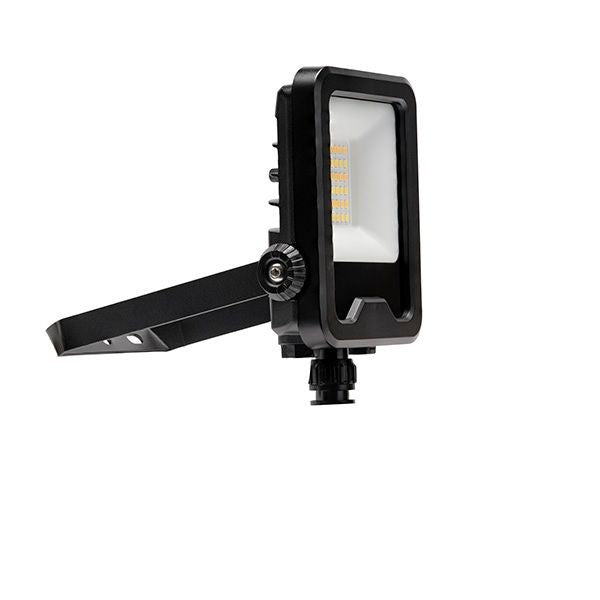

Adjustable Mounting Bracket: Angled and adjustable bracket for flexible installation and accurate light positioning.
-
Built-In Surge Protection: Integrated 2kV surge protection for additional electrical protection.
-
Bat-Friendly Lighting: Designed for bat-sensitive lighting applications when operated at 3000K, subject to site requirements.
-
Long Service Life: Rated for 50,000 operating hours and 25,000 switching cycles.
-
Compact Construction: Space-saving design suitable for residential and commercial outdoor installations.
Technical Specifications
-
Brand: BELL Lighting
-
Product Range: Skyline Omni
-
Manufacturer Part Number: 72031
-
Product Type: LED Floodlight
-
Wattage: 20W
-
Rated Voltage: 220–240V AC
-
Colour Temperature: 3000K / 4000K / 5000K
-
Lumen Output at 3000K: 2185lm
-
Lumen Output at 4000K: 2469lm
-
Lumen Output at 5000K: 2357lm
-
Luminous Efficacy: 109–123lm/W
-
Colour Rendering Index (CRI): Ra 80
-
Frequency: 50/60Hz
-
LED Drive Current: 130mA at 230V
-
Energy Consumption: 20kWh/1000h
-
Rated Lifetime: 50,000 hours
-
Switching Cycles: 25,000
-
IP Rating: IP65
-
IK Rating: IK07
-
Surge Protection: 2kV
-
Lumen Maintenance: L80 B10
-
Operating Temperature: -20°C to +35°C
-
Height: 220mm
-
Width: 100mm
-
Depth: 38mm
-
Product Weight: 0.385kg
Suitable Applications
- Residential gardens, patios and driveways
- Building facades and exterior walls
- Pathways, entrances and access areas
- Commercial premises and outdoor spaces
- Coastal properties and exposed environments
- General outdoor security and area lighting
- Car parks, courtyards and building perimeters
