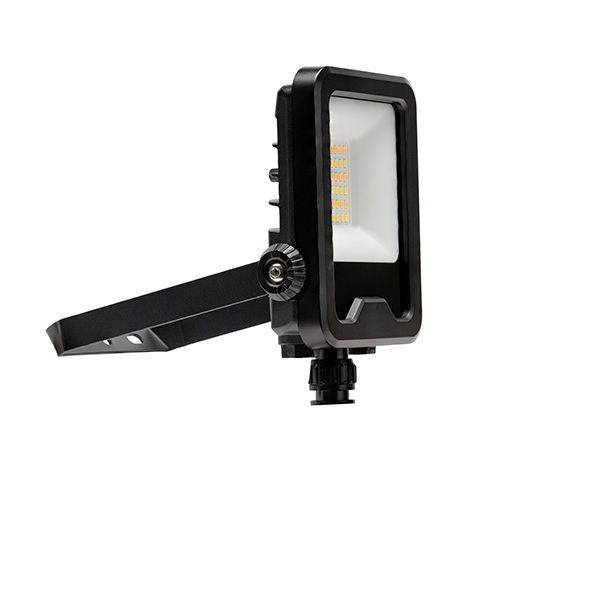

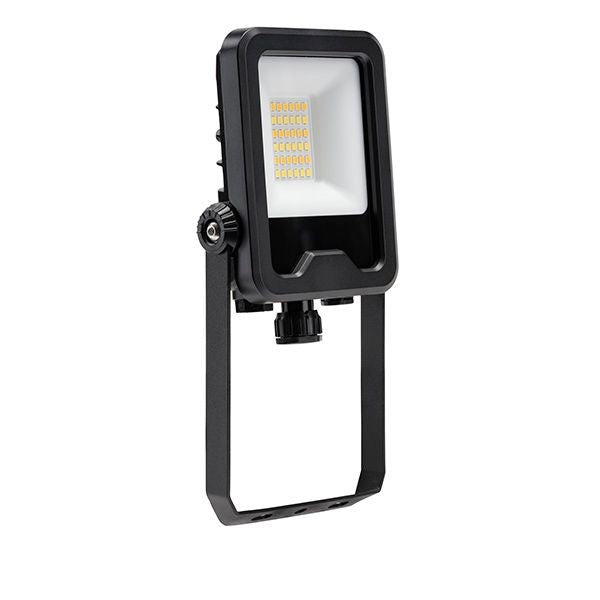

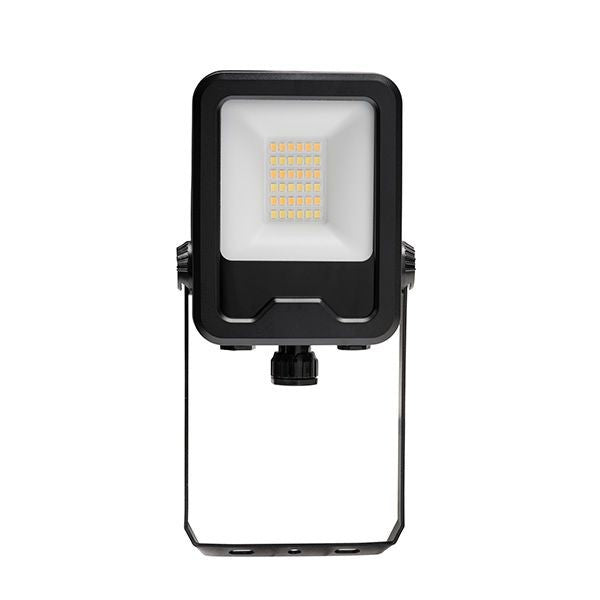

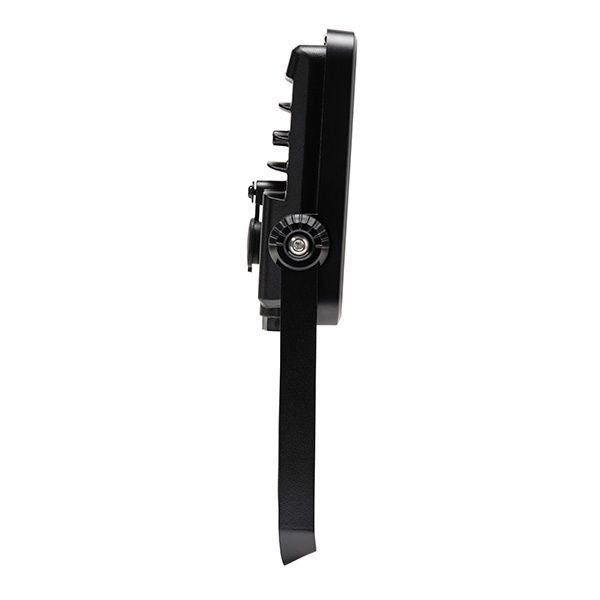

BELL 72030 10W Skyline Omni LED Floodlight – 3CCT IP65
The BELL 72030 Skyline Omni 10W LED Floodlight is a compact, energy-efficient outdoor lighting solution designed to provide reliable illumination for residential, commercial and coastal environments. Featuring selectable colour temperatures, durable marine-grade treated construction and an adjustable mounting bracket, this versatile LED floodlight delivers excellent performance in demanding outdoor conditions.
With 3CCT selectable technology, the Skyline Omni allows users to choose between 3000K warm white, 4000K cool white and 5000K daylight to suit different lighting requirements. Delivering up to 1205 lumens, the 10W LED floodlight provides efficient illumination while maintaining low energy consumption.
Manufactured with a C3-M marine-grade treated finish, an impact-resistant tempered glass cover and an IP65 weatherproof rating, the BELL Skyline Omni is suitable for gardens, driveways, building exteriors, pathways and coastal locations. Its adjustable angled bracket enables flexible positioning for effective light distribution.
Key Features
-
10W LED Floodlight: Energy-efficient outdoor lighting with a maximum output of 1205 lumens.
-
3CCT Selectable: Choose between 3000K warm white, 4000K cool white and 5000K daylight.
-
C3-M Marine-Grade Treatment: Designed for coastal areas and challenging outdoor environments.
-
IP65 Weatherproof Protection: Resistant to dust and water jets for dependable outdoor operation.
-
IK07 Impact Resistance: Durable construction for improved protection against mechanical impacts.
-
Tempered Glass Cover: Enhances optical performance, thermal management and durability.
-
Adjustable Mounting Bracket: Versatile angled bracket for convenient installation and precise positioning.
-
Built-In Surge Protection: Integrated 2kV surge protection for additional electrical protection.
-
Bat-Friendly Lighting: Suitable for bat-sensitive applications when operated at 3000K, subject to project requirements.
-
Long Service Life: Rated for 50,000 operating hours and 25,000 switching cycles.
-
Compact Design: Space-saving construction suitable for a wide range of outdoor installations.
Technical Specifications
-
Brand: BELL Lighting
-
Product Range: Skyline Omni
-
Manufacturer Part Number: 72030
-
Product Type: LED Floodlight
-
Wattage: 10W
-
Rated Voltage: 220–240V AC
-
Colour Temperature: 3000K / 4000K / 5000K
-
Lumen Output at 3000K: 1059lm
-
Lumen Output at 4000K: 1205lm
-
Lumen Output at 5000K: 1142lm
-
Luminous Efficacy: 105–121lm/W
-
Colour Rendering Index (CRI): Ra 80
-
Frequency: 50/60Hz
-
LED Drive Current: 67mA at 230V
-
Energy Consumption: 10kWh/1000h
-
Rated Lifetime: 50,000 hours
-
Switching Cycles: 25,000
-
IP Rating: IP65
-
IK Rating: IK07
-
Surge Protection: 2kV
-
Lumen Maintenance: L80 B10
-
Operating Temperature: -20°C to +35°C
-
Height: 220mm
-
Width: 100mm
-
Depth: 38mm
-
Product Weight: 0.385kg
Suitable Applications
- Residential gardens, patios and driveways
- Building facades and exterior walls
- Pathways, entrances and access areas
- Commercial premises and outdoor spaces
- Coastal properties and exposed environments
- General outdoor security and area lighting
