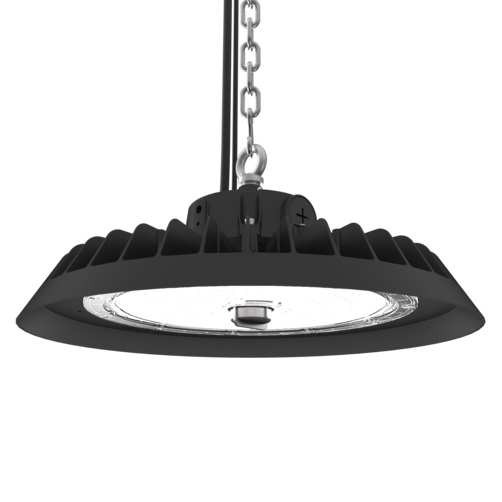

Ansell AZLP2/2 Z LED Performance 2 IP65 High Bay Light 150W/175W/200W CCT Selectable 1-10V Dimmable - Black

The Ansell AZLP2/2 Z LED Performance 2 High Bay is a powerful, energy-efficient industrial LED luminaire designed to deliver outstanding illumination in warehouses, factories, distribution centres, workshops and large commercial premises. Featuring selectable 150W, 175W and 200W power settings, adjustable 4000K/5000K/6500K colour temperatures and 1-10V dimming, this versatile IP65 high bay light provides exceptional flexibility for demanding lighting installations.

Engineered for high-performance industrial lighting, the Z LED Performance 2 delivers an impressive 180lm/W luminous efficacy, producing up to 36,000 lumens at 4000K. Its wide 120° symmetrical beam angle ensures broad, even light distribution, making it suitable for illuminating large floor areas, high-ceiling warehouses, production facilities and commercial environments.

Built to withstand challenging conditions, this IP65 LED high bay luminaire features a robust die-cast, powder-coated aluminium housing with polycarbonate components and an integrated heatsink for effective thermal management. The IK10 impact rating provides excellent mechanical durability, while the IP65 protection rating makes the fitting suitable for demanding indoor and appropriate outdoor applications.

The integrated Zhaga Book 18 sensor mounting interface supports compatible plug-and-play microwave and PIR sensors, allowing intelligent occupancy-based lighting control. An optional emergency conversion pack provides a convenient way to upgrade the standard fitting to an emergency high bay, while an optional 55° narrow beam lens is available for focused illumination in warehouse racking aisles.

Supplied with a pre-wired 1m cable and AFIX connector, the Ansell AZLP2/2 offers convenient installation with flexible suspension and surface mounting options. Its combination of high lumen output, selectable power, adjustable colour temperature and advanced lighting control makes it an excellent solution for professional industrial and commercial lighting projects.

Key Features

• Multi-wattage LED high bay: Select between 150W, 175W and 200W to suit different ceiling heights and lighting requirements.
• CCT selectable: Choose between 4000K cool white, 5000K daylight white and 6500K daylight colour temperatures.
• Exceptional energy efficiency: Delivers 180lm/W for high-output, energy-efficient industrial lighting.
• Powerful lumen output: Provides 27,000lm at 150W, 31,500lm at 175W and 36,000lm at 200W (4000K).
• 1-10V dimmable: Compatible with suitable 1-10V lighting control systems for adjustable brightness.
• IP65 ingress protection: Dust-tight construction with protection against water jets for demanding environments.
• IK10 impact resistance: Robust housing designed to withstand mechanical impacts.
• Wide 120° beam angle: Symmetrical light distribution provides broad, consistent illumination across large areas.

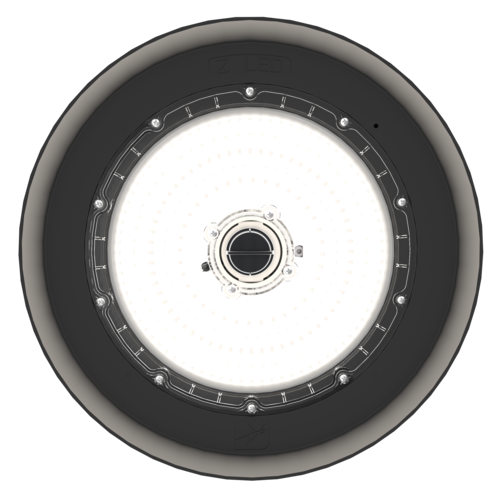

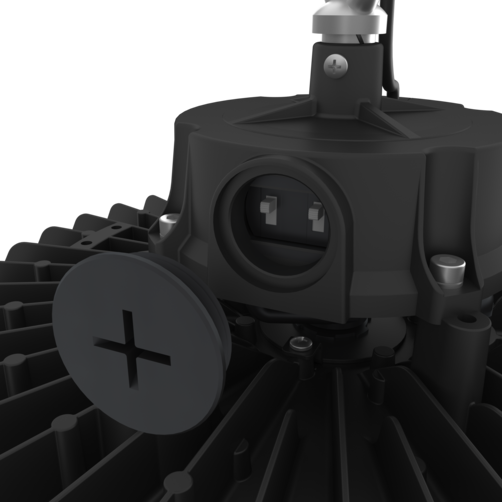

• Zhaga Book 18 interface: Supports compatible plug-and-play microwave and PIR sensors for automated lighting control.

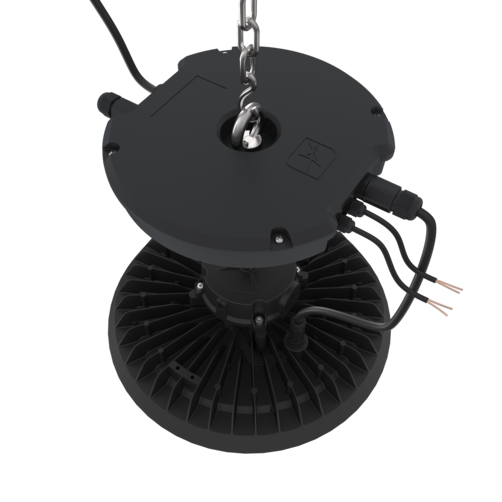

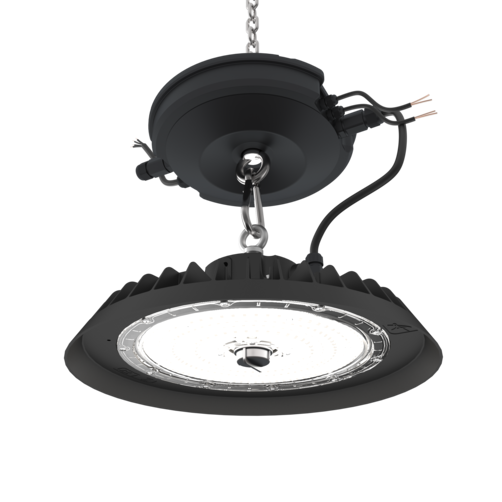

• Optional emergency conversion: Compatible plug-and-play emergency pack available separately for conversion to an emergency high bay.
• Durable aluminium construction: Die-cast, powder-coated housing with polycarbonate components and an integrated heatsink.
• Optional 55° narrow beam lens: Provides focused illumination for warehouse racking aisles and specialist applications.

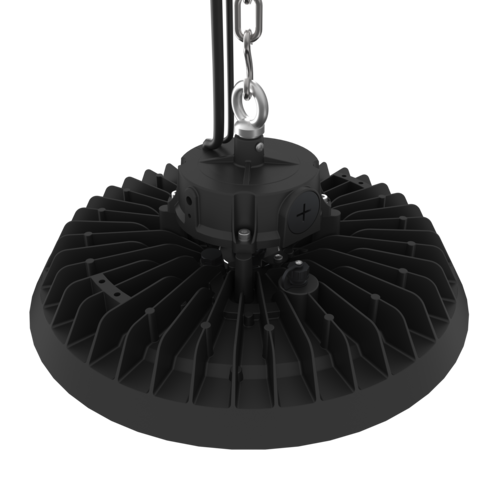

• Flexible installation: Supports suspended mounting using jack chain or catenary wire, with optional brackets for ceiling or wall mounting.
• Pre-wired connection: Supplied with a 1m cable and AFIX connector for convenient installation.
• Wide application range: Ideal for warehouses, factories, distribution centres, manufacturing facilities, workshops and commercial buildings.

Technical Specifications

• Manufacturer: Ansell Lighting
• Product Range: Z LED Performance 2
• Product Code: AZLP2/2
• Product Type: LED Low Bay / High Bay Luminaire
• Colour / Finish: Black
• Housing Material: Aluminium / Polycarbonate
• Selectable Wattage: 150W / 175W / 200W
• Colour Temperature: 4000K / 5000K / 6500K selectable
• Delivered Lumens at 150W: 27,000lm (4000K)
• Delivered Lumens at 175W: 31,500lm (4000K)
• Delivered Lumens at 200W: 36,000lm (4000K)
• Luminous Efficacy: 180lm/W
• Dimmable: Yes
• Dimming Type: 1-10V
• Beam Angle: 120°
• Light Distribution: Symmetrical
• Colour Rendering Index: CRI 80
• IP Rating: IP65
• Impact Rating: IK10
• Electrical Class: Class I
• Emergency Function: No (optional emergency conversion pack available separately)
• Sensor Compatibility: Zhaga Book 18 compatible microwave and PIR sensors
• Input Voltage: 220-240V AC
• Frequency: 50/60Hz
• Operating Temperature: -30°C to +40°C
• Mounting Options: Suspended / Surface (appropriate mounting accessories required)
• Application: Indoor / Outdoor
• Pre-Wired Cable: 1m with AFIX connector

Dimensions

• Diameter: 355mm
• Height: 168mm

Optional Accessories

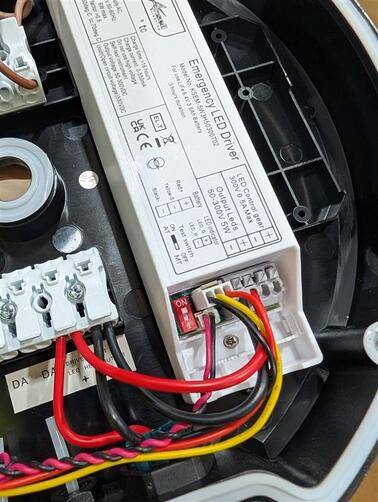

• Emergency Conversion Pack: Plug-and-play emergency lighting conversion accessory.
• Microwave Sensor: Compatible Zhaga Book 18 plug-and-play microwave occupancy sensor.
• PIR Sensor: Compatible Zhaga Book 18 plug-and-play PIR occupancy sensor.
• 55° Narrow Beam Lens: Optional lens for focused illumination in warehouse racking aisles.

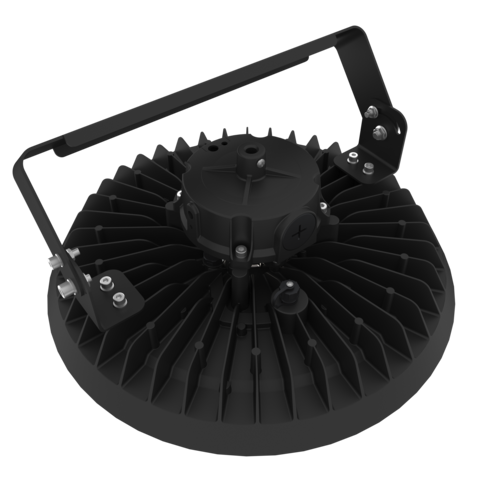

• Mounting Brackets: Optional accessories for ceiling or wall installation.
• Suspension Accessories: Alternative installation using jack chain or catenary wire.

Data Sheet:

Download Data Sheet
