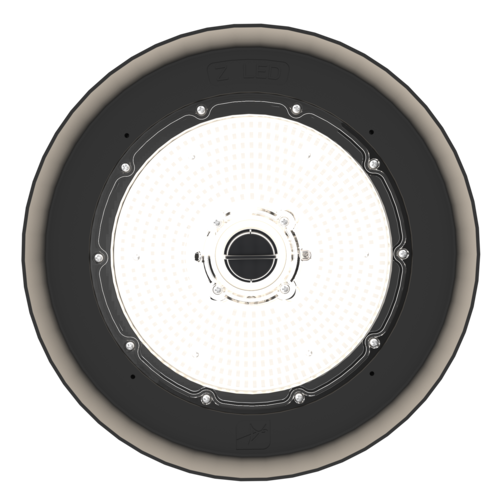

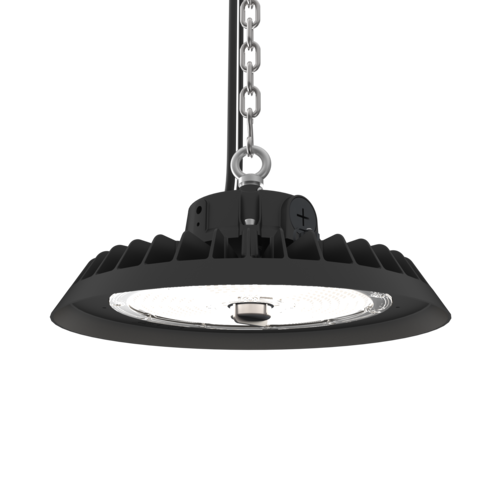

Ansell AZLP1/2 Z LED Performance 1 IP65 High Bay Light 75W/100W/125W CCT Selectable 1-10V Dimmable - Black

The Ansell AZLP1/2 Z LED Performance 1 High Bay is a powerful, energy-efficient LED lighting solution designed for industrial, commercial and retail environments. Featuring selectable 75W, 100W and 125W power settings, three adjustable colour temperatures and 1-10V dimming, this versatile IP65 high bay light delivers exceptional illumination for warehouses, factories, workshops, distribution centres and other large open spaces.

Engineered for outstanding performance, the Z LED Performance 1 achieves an impressive 180lm/W luminous efficacy, delivering up to 22,500 lumens at 4000K. Its selectable 4000K, 5000K and 6500K colour temperatures allow the lighting to be adapted to different working environments, while the standard 120° symmetrical beam provides wide, even illumination across industrial and commercial areas.

Built for demanding conditions, this IP65 LED high bay luminaire features a robust die-cast, powder-coated aluminium construction with an integrated heatsink for effective thermal management. Its IK10 impact resistance provides additional durability, making it suitable for challenging indoor and appropriate outdoor installations.

The luminaire incorporates a Zhaga Book 18 sensor mounting interface, allowing compatible plug-and-play microwave and PIR sensors to be installed for intelligent lighting control. An optional emergency conversion pack provides a convenient upgrade to emergency lighting, while alternative mounting accessories and a narrow 55° lens offer greater installation flexibility.

Supplied pre-wired with a 1m cable and AFIX connector, the Ansell AZLP1/2 combines high light output, efficient operation and practical installation features for professional lighting projects.

Key Features

• Multi-wattage LED high bay: Select between 75W, 100W and 125W to suit different installation heights and lighting requirements.
• CCT selectable: Choose from 4000K cool white, 5000K daylight white or 6500K daylight colour temperatures.
• Exceptional energy efficiency: Delivers up to 180lm/W for high-output, energy-efficient industrial lighting.
• High lumen output: Provides 13,500lm at 75W, 18,000lm at 100W and 22,500lm at 125W (4000K).
• 1-10V dimmable: Compatible with suitable 1-10V lighting control systems for adjustable brightness.
• IP65 weather-resistant protection: Protected against dust ingress and water jets for demanding environments.
• IK10 impact resistance: Robust construction designed to withstand mechanical impacts.
• Wide 120° beam angle: Symmetrical light distribution provides broad, consistent illumination.
• Zhaga Book 18 interface: Supports compatible plug-and-play microwave and PIR sensors for automated lighting control.

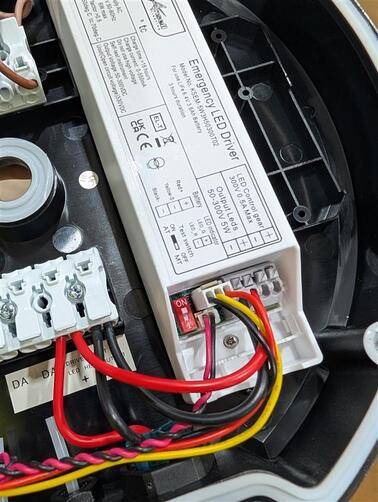

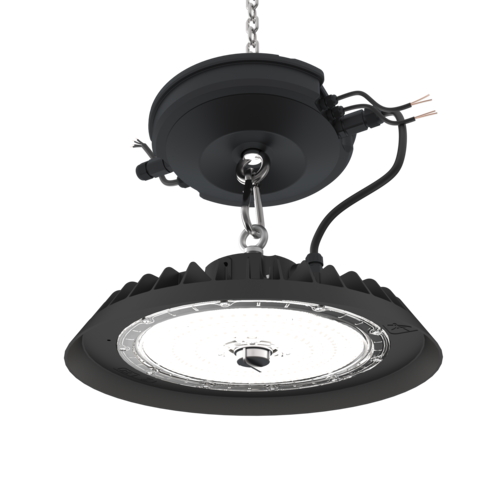

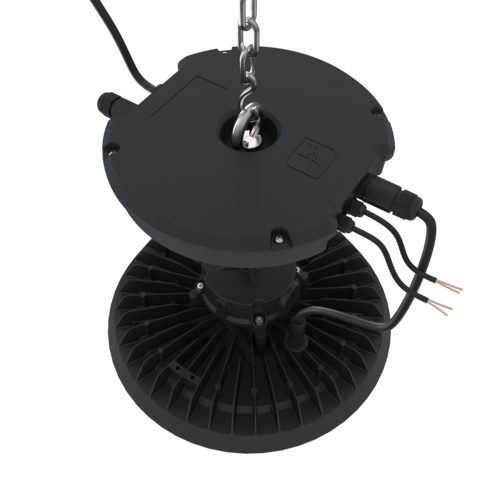

• Emergency conversion option: Compatible plug-and-play emergency pack available separately for conversion to an emergency high bay.

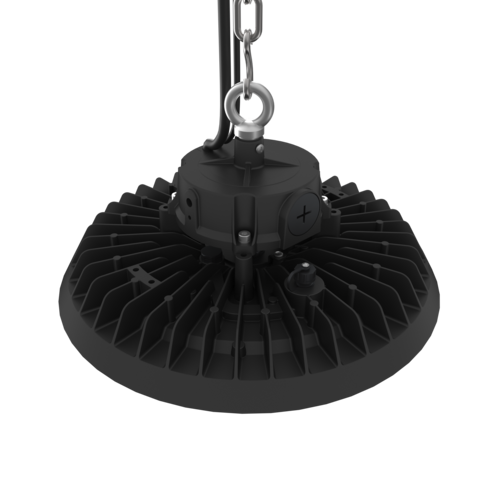

• Durable construction: Die-cast, powder-coated aluminium housing with polycarbonate components and an integrated heatsink.
• Optional narrow beam lens: 55° lens accessory available for warehouse racking aisles and focused lighting applications.
• Flexible installation: Suitable for suspended mounting using jack chain or catenary wire, with optional brackets for ceiling or wall mounting.

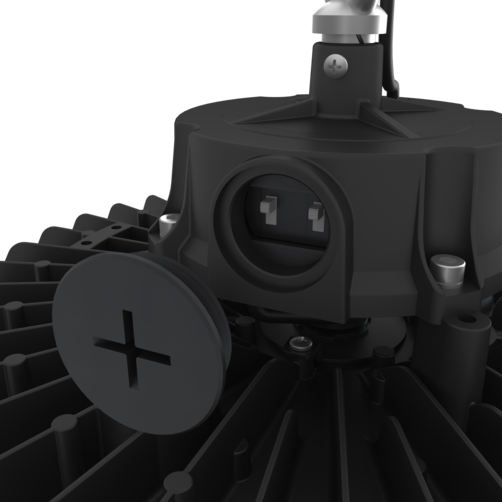

• Pre-wired connection: Supplied with a 1m cable and AFIX connector for convenient installation.

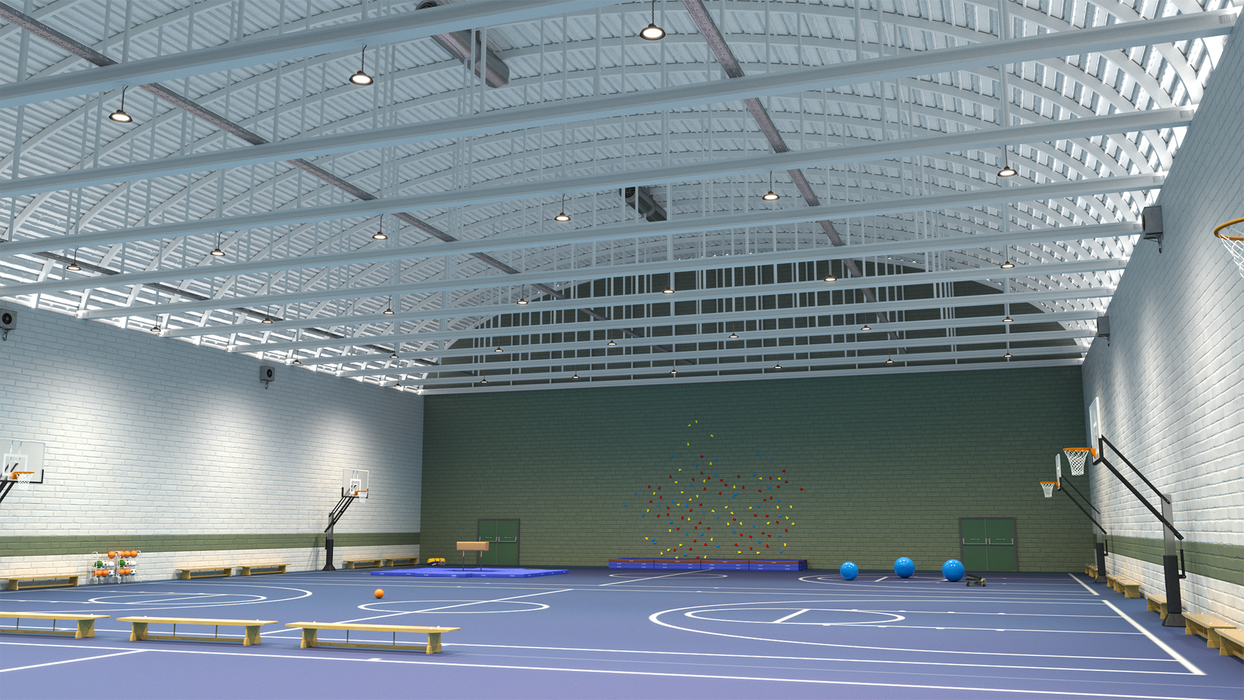

• Versatile applications: Ideal for warehouses, factories, workshops, distribution centres, retail premises and industrial facilities.

Technical Specifications

• Manufacturer: Ansell Lighting
• Product Range: Z LED Performance 1
• Product Code: AZLP1/2
• Product Type: LED Low Bay / High Bay Luminaire
• Colour / Finish: Black
• Housing Material: Aluminium / Polycarbonate
• Selectable Wattage: 75W / 100W / 125W
• Colour Temperature: 4000K / 5000K / 6500K selectable
• Delivered Lumens at 75W: 13,500lm (4000K)
• Delivered Lumens at 100W: 18,000lm (4000K)
• Delivered Lumens at 125W: 22,500lm (4000K)
• Luminous Efficacy: 180lm/W
• Dimmable: Yes
• Dimming Type: 1-10V
• Beam Angle: 120°
• Light Distribution: Symmetrical
• Colour Rendering Index: CRI 80
• IP Rating: IP65
• Impact Rating: IK10
• Electrical Class: Class I
• Emergency Function: No (optional emergency conversion pack available separately)
• Sensor Compatibility: Zhaga Book 18 compatible microwave and PIR sensors
• Input Voltage: 220-240V AC
• Frequency: 50/60Hz
• Operating Temperature: -30°C to +40°C
• Mounting Options: Suspended / Surface (appropriate mounting accessories required)
• Application: Indoor / Outdoor
• Pre-Wired Cable: 1m with AFIX connector

Dimensions

• Diameter: 310mm
• Height: 163mm

Optional Accessories

• Emergency Conversion Pack: Plug-and-play emergency lighting conversion accessory.
• Microwave Sensor: Compatible Zhaga Book 18 plug-and-play microwave occupancy sensor.
• PIR Sensor: Compatible Zhaga Book 18 plug-and-play PIR occupancy sensor.
• 55° Narrow Beam Lens: Optional lens for focused illumination in warehouse racking aisles.
• Mounting Brackets: Optional accessories for ceiling or wall installation.
• Suspension Accessories: Alternative installation using jack chain or catenary wire.
