Ansell AZLE2/2 Z LED ECO High Bay IP66 150W/175W/200W CCT Selectable LED High Bay - Black

The Ansell AZLE2/2 Z LED ECO High Bay is a robust, high-performance LED luminaire engineered for warehouses, factories, distribution centres and other demanding industrial environments. Featuring selectable power outputs of 150W, 175W or 200W and selectable colour temperatures of 4000K, 5000K and 6500K, this versatile fitting allows installers to tailor both light output and colour temperature to suit the application while delivering up to 26,000 lumens with an efficacy of up to 130 lumens per watt.

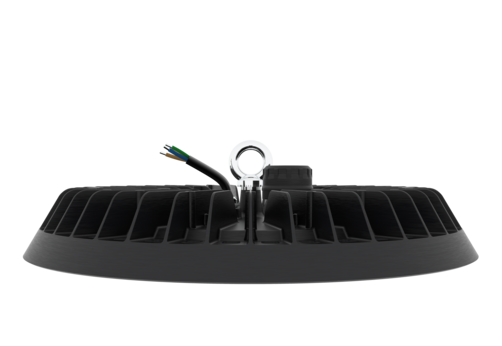

Constructed from durable die-cast aluminium with a powder-coated finish and an integrated heatsink, the Z LED ECO High Bay ensures excellent thermal management for reliable long-term performance. Its lensed diffuser provides controlled beam distribution for improved light uniformity, while the slim, lightweight design with an integral LED driver simplifies installation. Rated IP66 for protection against dust and water ingress and IK09 for impact resistance, it is ideal for harsh commercial and industrial environments.

Key Features

• Power selectable: 150W, 175W or 200W
• CCT selectable: 4000K, 5000K or 6500K
• Delivers up to 26,000 lumens
• High efficacy of up to 130 lumens per watt
• Robust die-cast aluminium construction with powder-coated finish

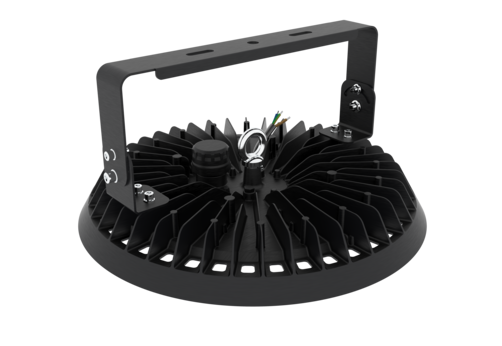

• Integrated heatsink for optimum thermal performance

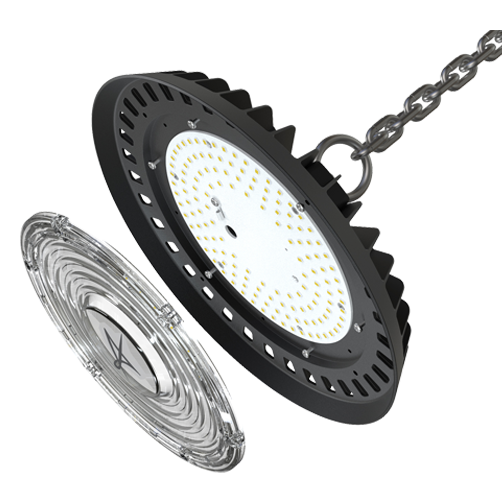

• Lensed diffuser for controlled beam distribution and improved light uniformity
• Integral LED driver for a slim, lightweight design
• IP66 rated for dust and water resistance
• IK09 impact-resistant construction
• Supplied pre-wired with a 1 metre cable and AFIX connector
• Installation eye bolt supplied as standard

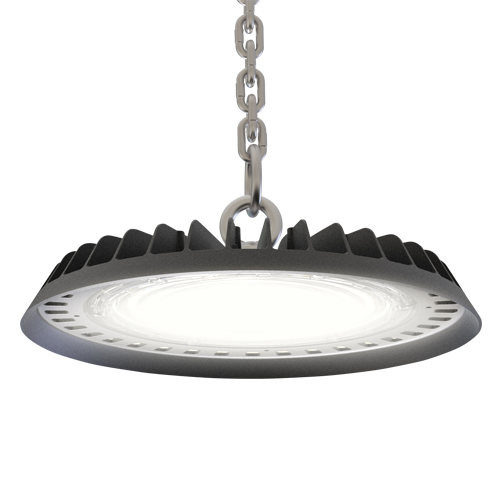

• Suitable for installation using drop rods, jack chain or catenary wire

Technical Specifications

• Power: 150W / 175W / 200W (Selectable)
• Lumens: 19,500 / 22,750 / 26,000 lm (4000K)
• Efficiency: Up to 130 lm/W
• Colour Temperature: 4000K / 5000K / 6500K (Selectable)
• Colour Rendering Index (CRI): Ra 80
• Voltage: 220–240V AC
• Operating Temperature: -45°C to +45°C
• IP Rating: IP66
• Impact Rating: IK09
• Finish: Black
• Diameter: 354mm
• Height: 89mm

Ideal Applications

• Warehouses and logistics centres
• Factories and manufacturing facilities
• Industrial workshops
• Distribution centres
• Retail warehouses
• Commercial storage areas
• Ancillary industrial spaces

Data Sheet:

Download the Ansell AZLE2/2 Data Sheet

Instruction Manual:

Download the Ansell AZLE2/2 Instruction Manual
