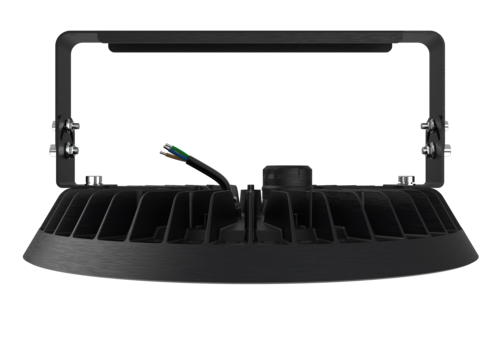

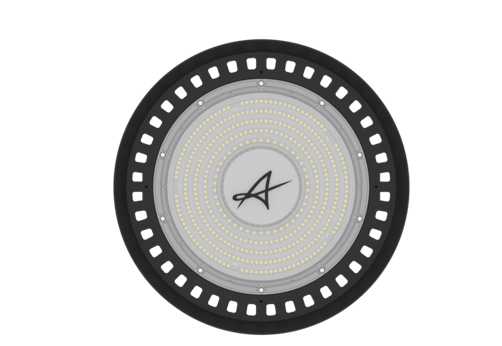

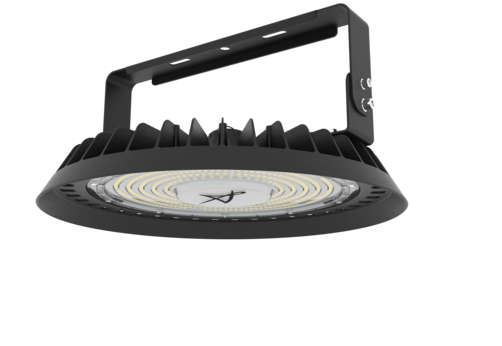

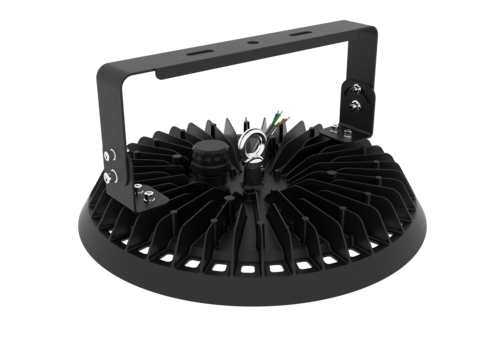

Ansell AZLE1/2 Z LED ECO High Bay IP66 75W/100W/125W CCT Selectable LED High Bay - Black

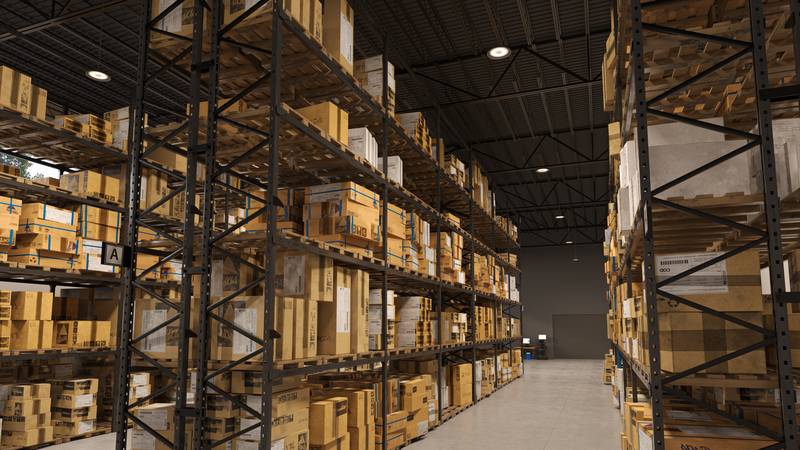

The Ansell AZLE1/2 Z LED ECO High Bay is a high-performance, energy-efficient LED luminaire designed for warehouses, factories, workshops, retail units and other industrial environments. Featuring selectable power outputs of 75W, 100W or 125W and selectable colour temperatures of 4000K, 5000K and 6500K, it provides exceptional installation flexibility while delivering up to 16,250 lumens with an efficacy of up to 130lm/W.

Manufactured from robust die-cast aluminium with a durable powder-coated finish, the Z LED ECO High Bay offers excellent thermal management for long-lasting performance. The integrated lensed diffuser delivers a controlled beam angle for improved light distribution, while the slim, lightweight design with an integral LED driver simplifies installation. Rated IP66 for dust and water protection and IK09 for impact resistance, it is built to withstand demanding commercial and industrial applications.

Key Features

• Power selectable: 75W, 100W or 125W
• CCT selectable: 4000K, 5000K or 6500K
• Delivers up to 16,250 lumens
• High efficacy of up to 130 lumens per watt
• Robust die-cast aluminium body with powder-coated finish

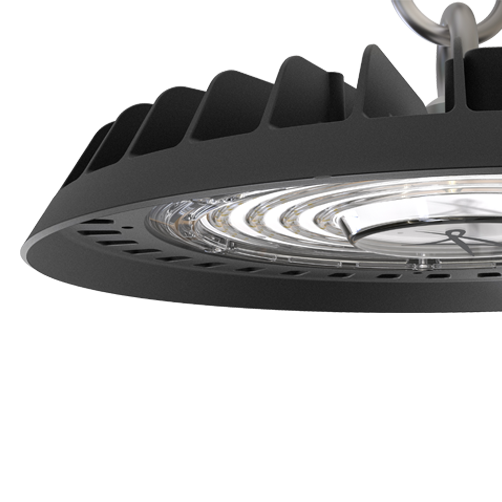

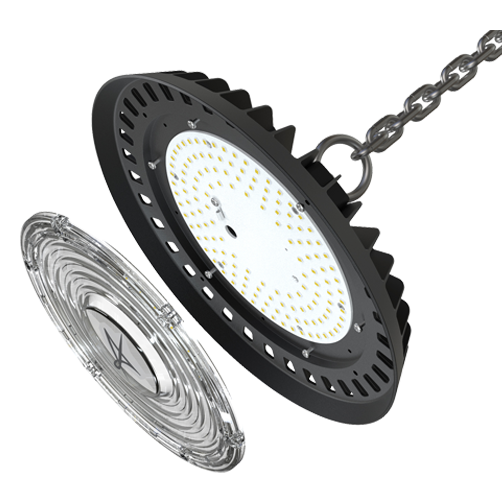

• Lensed diffuser provides controlled beam distribution and improved efficiency
• Integral LED driver for a compact, lightweight design
• IP66 rated for protection against dust and water ingress
• IK09 impact-resistant construction
• Supplied pre-wired with a 1 metre cable and AFIX connector

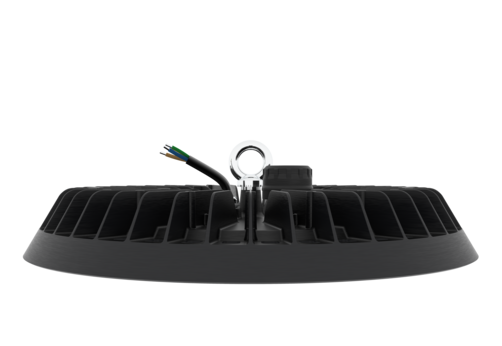

• Installation eye bolt included as standard

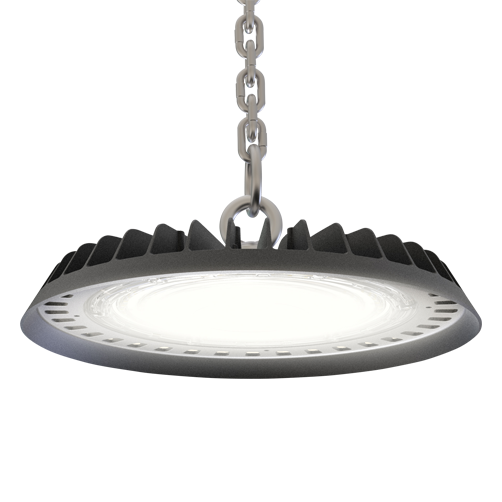

• Suitable for suspension using drop rods, jack chain or catenary wire

Technical Specifications

• Power: 75W / 100W / 125W (Selectable)
• Lumens: 9,750 / 13,000 / 16,250 lm (4000K)
• Efficiency: Up to 130 lm/W
• Colour Temperature: 4000K / 5000K / 6500K (Selectable)
• CRI: Ra 80
• Voltage: 220–240V AC
• Operating Temperature: -45°C to +45°C
• IP Rating: IP66
• Impact Rating: IK09
• Finish: Black
• Diameter: 308mm
• Height: 86mm

Ideal Applications

• Warehouses
• Factories and manufacturing facilities
• Distribution centres
• Workshops
• Industrial units
• Retail warehouses
• Ancillary commercial areas

Data Sheet:

Download the Ansell AZLE1/2 Data Sheet

Instruction Manual:

Download the Ansell AZLE1/2 Instruction Manual
