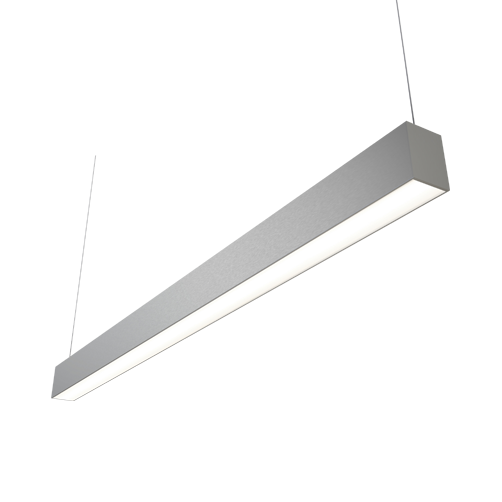

Ansell AVAS5/1/S/DD3 Vasco EVO 5ft CCT Multi-Wattage Bi-Directional DALI Dimmable LED Linear Light - Silver

The Ansell AVAS5/1/S/DD3 Vasco EVO is a versatile 5ft (1500mm) bi-directional LED linear luminaire designed for efficient, contemporary commercial lighting. Featuring a stylish silver aluminium housing, selectable 3000K/4000K colour temperatures, adjustable 25W-40W power settings and DALI dimming, this fitting provides flexible illumination for offices, educational facilities, retail environments and other indoor spaces.

Engineered to deliver a balanced combination of direct and indirect lighting, the Vasco EVO distributes 30% of its light upwards and 70% downwards as standard. This helps illuminate ceilings and working areas simultaneously, creating a comfortable and well-lit environment. A downward-only operating option is also available, although selecting this mode changes the luminaire's light output.

The supplied opal diffuser produces smooth, uniform illumination with a luminous efficacy of approximately 105lm/W. For installations requiring enhanced efficiency and glare control, the optional AVAS5/1/UGR diffuser can increase luminous efficacy to 150lm/W, with a specified light output of up to 6400 lumens at 4000K.

Designed for convenient installation, this silver suspended LED linear light comes complete with adjustable suspension points, a suspension kit and a pre-wired 1.5m cable. Optional surface and track mounting accessories offer additional flexibility, making it suitable for new lighting projects and commercial refurbishment installations.

Key Features

• Bi-directional illumination: Delivers 30% upward and 70% downward light output for balanced direct and indirect lighting.
• Selectable CCT: Choose between 3000K warm white and 4000K cool white to match different lighting environments.
• Multi-wattage functionality: Adjustable power settings from 25W to 40W provide flexible lighting performance.
• DALI dimmable: Designed for integration with compatible DALI lighting control systems.
• Energy-efficient LED technology: Provides approximately 105lm/W with the standard diffuser and up to 150lm/W with the optional UGR diffuser.
• High light output: Delivers 2500-4500 lumens at 4000K with the standard diffuser, or 3300-6400 lumens with the optional UGR diffuser.

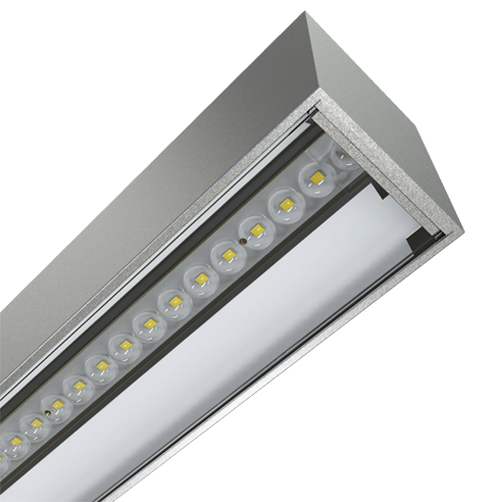

• Uniform light distribution: Supplied with an opal diffuser for smooth and consistent illumination.
• Downward-only option: Alternative lighting distribution available where required, with a corresponding change in light output.
• Premium silver finish: Durable aluminium construction complements contemporary commercial interiors.

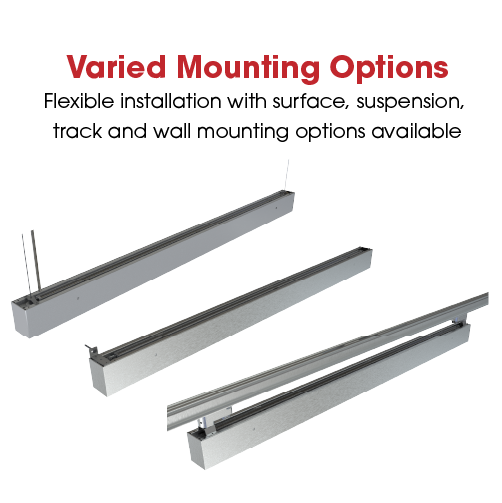

• Flexible mounting: Suitable for suspended installation, with optional accessories for surface and track mounting.

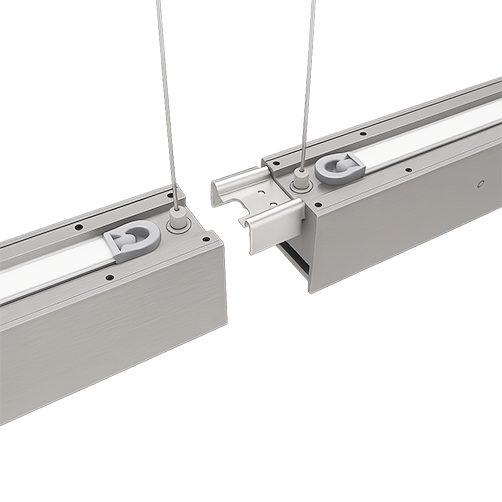

• Convenient installation: Supplied with adjustable suspension points, suspension kit and 1.5m pre-wired cable.

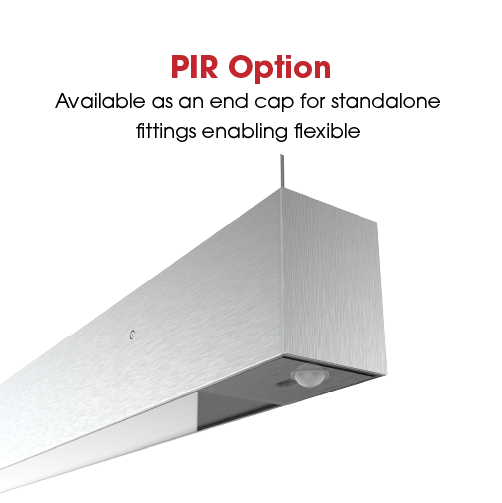

• Optional PIR control: Compatible PIR end cap accessory available for occupancy-based lighting applications.
• Indoor protection: IP40 ingress protection and IK06 impact resistance.

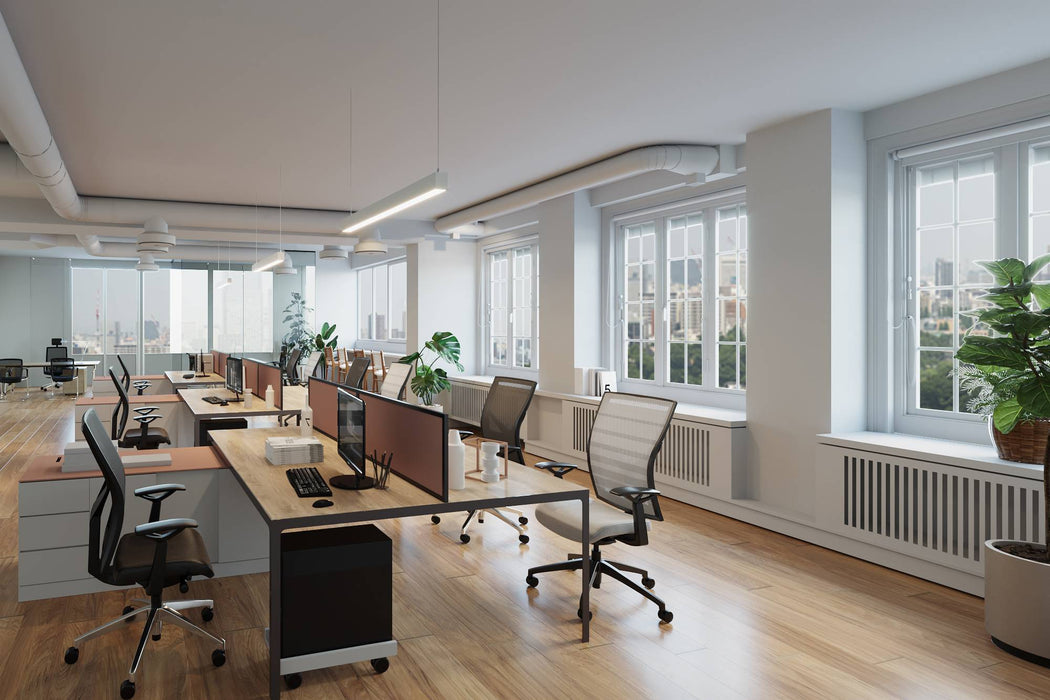

• Commercial applications: Ideal for offices, classrooms, meeting rooms, educational buildings, retail premises and professional workspaces.

Technical Specifications

• Manufacturer: Ansell Lighting
• Product Range: Vasco EVO
• Product Code: AVAS5/1/S/DD3
• Product Type: Bi-Directional LED Linear Luminaire
• Nominal Length: 5ft / 1500mm
• Colour / Finish: Silver
• Housing Material: Aluminium
• Wattage: 25W - 40W selectable
• Colour Temperature: 3000K / 4000K selectable
• Delivered Lumens: 2500 - 4500lm (4000K, standard diffuser)
• Delivered Lumens with UGR Diffuser: 3300 - 6400lm (4000K)
• Luminous Efficacy: 105lm/W (up to 150lm/W with optional UGR diffuser)
• Dimming: DALI dimmable
• Beam Angle: 110°
• Light Distribution: 30% Upward / 70% Downward
• Distribution Type: Asymmetrical
• Colour Rendering Index: CRI 80
• IP Rating: IP40
• Impact Rating: IK06
• Electrical Class: Class I
• Input Voltage: 220-240V AC
• Frequency: 50/60Hz
• Operating Temperature: -20°C to +45°C
• Mounting Options: Suspended / Surface (optional accessory required for surface mounting)
• Application: Indoor Use

Dimensions

• Length: 1504mm
• Width: 56mm
• Height: 75mm

Compatible Accessories

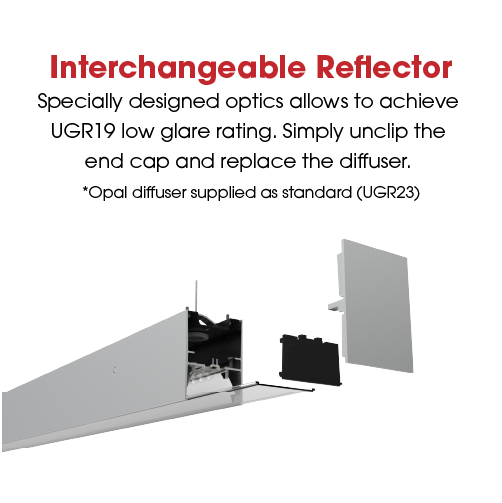

• AVAS5/1/UGR: Optional UGR diffuser for enhanced luminous efficacy and glare control.
• AVAS/WM/1: Surface mounting accessory.
• AVAS/P3/1/*: Track mounting accessories.
• PIR End Cap: Optional occupancy sensing accessory.

Data Sheet:

Download Data Sheet
