Ansell AVAS5/1/B/DD3 Vasco EVO 5ft CCT Multi-Wattage Bi-Directional DALI Dimmable LED Linear Light - Black

The Ansell AVAS5/1/B/DD3 Vasco EVO is a high-performance 5ft (1500mm) bi-directional LED linear luminaire designed to provide efficient, adaptable illumination in modern commercial interiors. Featuring a sleek black aluminium housing, selectable wattage, adjustable colour temperature and DALI dimming, this versatile fitting is ideal for offices, educational buildings, retail premises and professional workspaces.

Designed to combine direct and indirect illumination, the Vasco EVO delivers a 30% upward and 70% downward light distribution as standard. This balanced lighting arrangement illuminates working surfaces while directing additional light towards the ceiling, helping create a bright and comfortable indoor environment. A downward-only lighting option is also available, although selecting this mode changes the overall light output.

The integrated CCT selectable technology allows users to choose between 3000K warm white and 4000K cool white, while multi-wattage functionality provides adjustable power settings from 25W to 40W. The supplied opal diffuser ensures smooth, uniform illumination, delivering approximately 105lm/W. When fitted with the optional AVAS5/1/UGR diffuser, luminous efficacy can reach up to 150lm/W, providing enhanced energy efficiency and glare control.

Engineered for installation flexibility, this black suspended LED linear light includes adjustable suspension points, a suspension kit and a pre-wired 1.5m cable. Optional accessories support surface and track mounting, making the Vasco EVO suitable for both new commercial lighting installations and refurbishment projects.

Key Features

• Bi-directional LED lighting: Provides 30% upward and 70% downward illumination for balanced direct and indirect lighting.
• CCT selectable: Choose between 3000K warm white and 4000K cool white to suit different lighting requirements.
• Multi-wattage operation: Adjustable power settings between 25W and 40W offer flexible light output and energy consumption.
• DALI dimmable: Designed for use with compatible DALI lighting control systems for adjustable brightness.
• High luminous efficiency: Approximately 105lm/W with the standard diffuser, increasing to 150lm/W with the optional UGR diffuser.

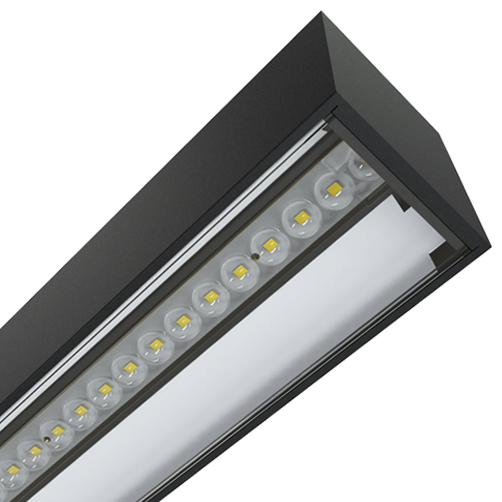

• Uniform light output: Supplied with an opal diffuser to provide smooth, consistent illumination.
• Downward-only lighting option: Alternative light distribution mode available where required, with a corresponding change in output.
• Premium black finish: Durable aluminium construction with a contemporary appearance for modern interiors.

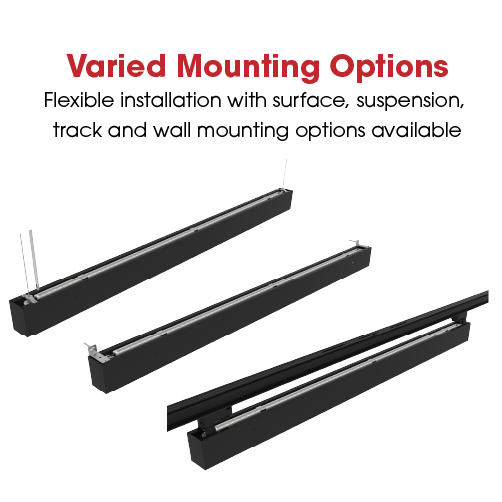

• Flexible mounting options: Suitable for suspended installation, with optional surface and track mounting accessories.
• Convenient installation: Supplied with a 1.5m pre-wired cable, adjustable suspension points and suspension kit.

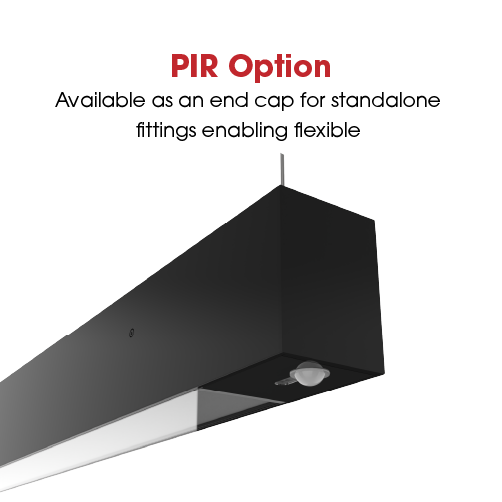

• Optional PIR accessory: Compatible PIR end cap available for occupancy-based lighting control.
• Durable protection: IP40 ingress protection and IK06 impact resistance for indoor commercial applications.
• Versatile applications: Suitable for offices, classrooms, meeting rooms, retail areas, educational facilities and commercial interiors.

Technical Specifications

• Manufacturer: Ansell Lighting
• Product Range: Vasco EVO
• Product Code: AVAS5/1/B/DD3
• Product Type: Bi-Directional LED Linear Luminaire
• Nominal Length: 5ft / 1500mm
• Colour / Finish: Black
• Housing Material: Aluminium
• Wattage: 25W - 40W selectable
• Colour Temperature: 3000K / 4000K selectable
• Delivered Lumens: 2500 - 4500lm (4000K, standard diffuser)
• Delivered Lumens with UGR Diffuser: 3300 - 6400lm (4000K)
• Luminous Efficacy: 105lm/W (up to 150lm/W with optional UGR diffuser)
• Dimming: DALI dimmable
• Beam Angle: 110°
• Light Distribution: 30% Upward / 70% Downward
• Distribution Type: Asymmetrical
• Colour Rendering Index: CRI 80
• IP Rating: IP40
• Impact Rating: IK06
• Electrical Class: Class I
• Input Voltage: 220-240V AC
• Frequency: 50/60Hz
• Operating Temperature: -20°C to +45°C
• Mounting Options: Suspended / Surface (optional accessory required for surface mounting)
• Application: Indoor Use

Dimensions

• Length: 1504mm
• Width: 56mm
• Height: 75mm

Compatible Accessories

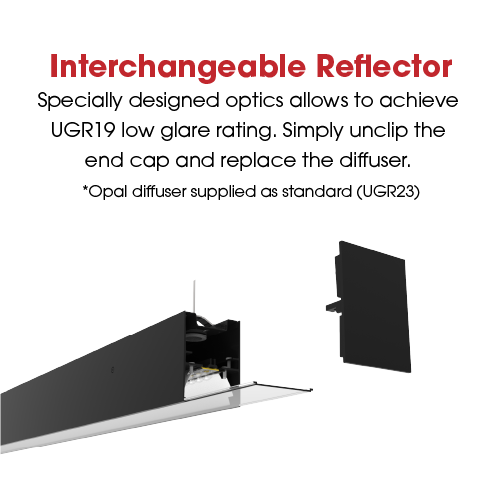

• AVAS5/1/UGR: Optional UGR diffuser for enhanced luminous efficacy and glare control.
• AVAS/WM/1: Surface mounting accessory.
• AVAS/P3/1/*: Track mounting accessories.
• PIR End Cap: Optional occupancy sensing accessory.

Data Sheet:

Download Data Sheet
