Ansell AVAS4/1/W/DD3 Vasco EVO 4ft CCT Multi-Wattage Bi-Directional DALI Dimmable LED Linear Light - White

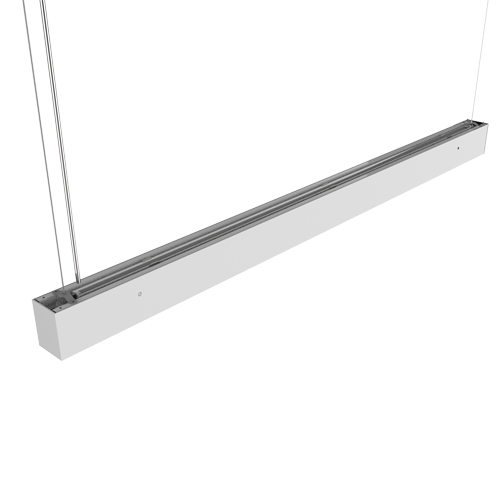

The Ansell AVAS4/1/W/DD3 Vasco EVO is a modern, energy-efficient 4ft (1200mm) bi-directional LED linear luminaire designed for professional indoor lighting installations. Featuring a sleek white aluminium housing, selectable wattage, adjustable colour temperature and DALI dimming, this versatile fitting is ideal for offices, educational facilities, retail premises and other commercial environments.

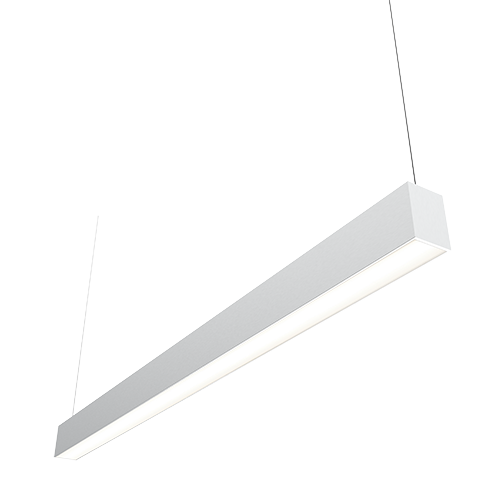

Engineered to provide comfortable, evenly distributed illumination, the Vasco EVO features a 30% upward and 70% downward light output ratio. This combination of direct and indirect lighting helps illuminate work surfaces while enhancing ambient ceiling brightness. The supplied opal diffuser delivers smooth, uniform light distribution, making it particularly suitable for contemporary workplaces, classrooms and meeting areas.

With selectable 3000K warm white and 4000K cool white colour temperatures and adjustable power settings from 14W to 32W, the luminaire can be configured to meet different lighting requirements. It delivers approximately 105lm/W with the standard diffuser, while the optional AVAS4/1/UGR diffuser can increase luminous efficacy to an impressive 150lm/W.

Designed for convenient installation, the fitting includes adjustable suspension points, a suspension kit and a pre-wired 1.5m cable. Optional surface and track mounting accessories provide additional installation flexibility, while a compatible PIR end cap accessory is available for occupancy-based lighting control.

Key Features

• Bi-directional LED lighting: Provides 30% upward and 70% downward illumination for balanced direct and indirect lighting.
• CCT selectable: Choose between 3000K warm white and 4000K cool white to suit different applications.
• Multi-wattage design: Adjustable power settings between 14W and 32W offer flexible light output and energy consumption.
• DALI dimmable: Suitable for use with compatible DALI lighting control systems.
• Energy-efficient performance: Delivers approximately 105lm/W with the standard diffuser and up to 150lm/W with the optional UGR diffuser.

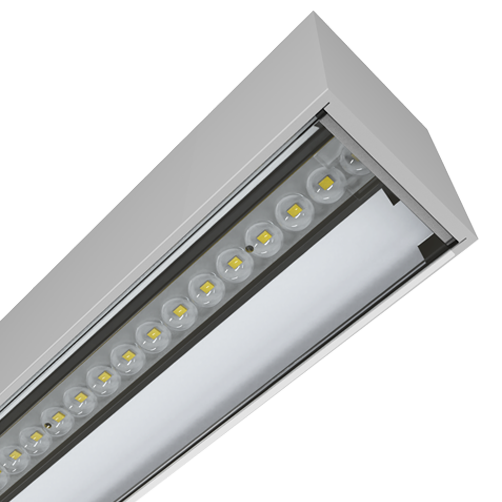

• Uniform illumination: Supplied with an opal diffuser to provide smooth, consistent light distribution.
• Downward-only option: Alternative downward lighting mode available where required, with a corresponding change in light output.
• Contemporary white finish: Durable aluminium construction complements modern commercial interiors.
• Flexible installation: Suitable for suspended mounting, with optional surface and track mounting accessories.
• Installation-ready: Supplied with a 1.5m pre-wired cable, adjustable suspension points and suspension kit.

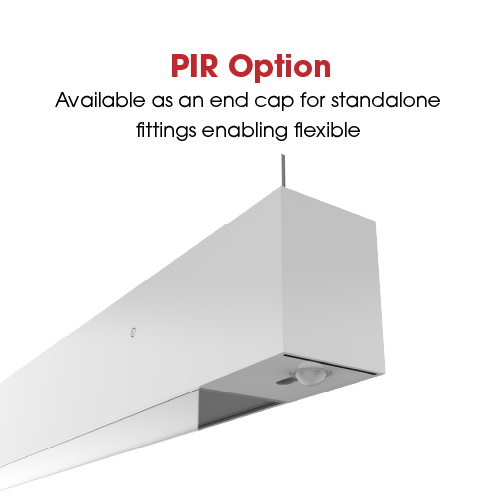

• Optional PIR accessory: Compatible PIR end cap available for occupancy sensing applications.
• Reliable protection: IP40 ingress protection and IK06 impact resistance for indoor installations.

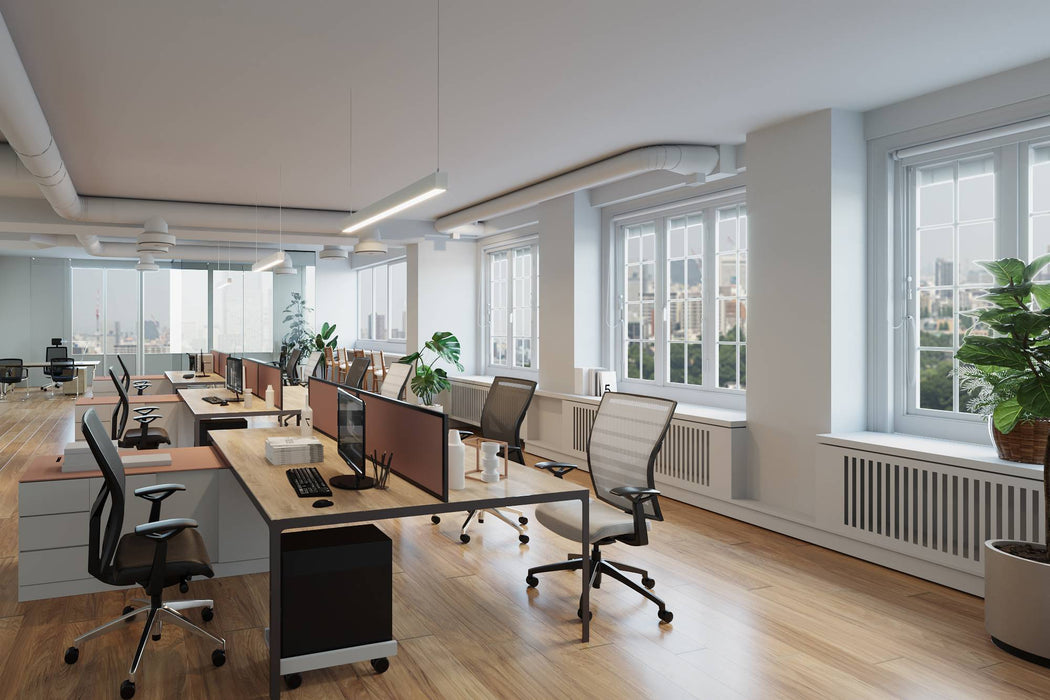

• Wide application range: Ideal for offices, schools, classrooms, meeting rooms, retail areas and commercial interiors.

Technical Specifications

• Manufacturer: Ansell Lighting
• Product Range: Vasco EVO
• Product Code: AVAS4/1/W/DD3
• Product Type: Bi-Directional LED Linear Luminaire
• Nominal Length: 4ft / 1200mm
• Colour / Finish: White
• Housing Material: Aluminium
• Wattage: 14W - 32W selectable
• Colour Temperature: 3000K / 4000K selectable
• Delivered Lumens: 1500 - 3400lm (4000K, standard diffuser)
• Delivered Lumens with UGR Diffuser: 2000 - 4600lm (4000K)
• Luminous Efficacy: 105lm/W (up to 150lm/W with optional UGR diffuser)
• Dimming: DALI dimmable
• Beam Angle: 110°
• Light Distribution: 30% Upward / 70% Downward
• Distribution Type: Asymmetrical
• Colour Rendering Index: CRI 80
• IP Rating: IP40
• Impact Rating: IK06
• Electrical Class: Class I
• Input Voltage: 220-240V AC
• Frequency: 50/60Hz
• Operating Temperature: -20°C to +45°C
• Mounting Options: Suspended / Surface (optional accessory required for surface mounting)
• Application: Indoor Use

Dimensions

• Length: 1204mm
• Width: 56mm
• Height: 75mm

Compatible Accessories

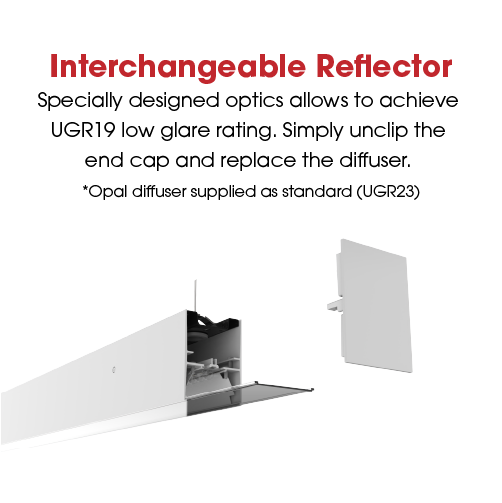

• AVAS4/1/UGR: Optional UGR diffuser for improved luminous efficacy and glare control.
• AVAS/WM/1: Surface mounting accessory.
• AVAS/P3/1/*: Track mounting accessories.
• PIR End Cap: Optional occupancy sensing accessory.

Data Sheet:

Download Data Sheet
