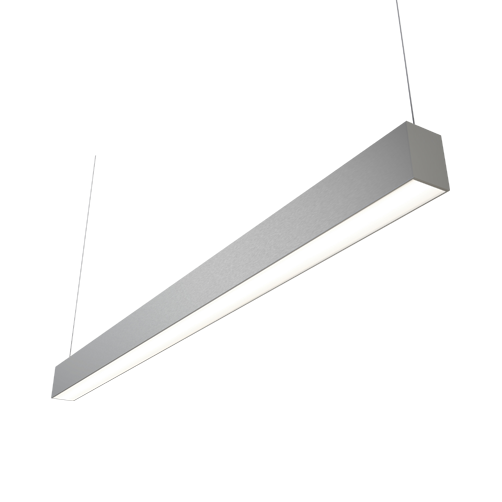

Ansell AVAS4/1/S/DD3 Vasco EVO 4ft CCT Multi-Wattage Bi-Directional DALI Dimmable LED Linear Light - Silver

The Ansell AVAS4/1/S/DD3 Vasco EVO is a high-performance 4ft (1200mm) bi-directional LED linear luminaire featuring a contemporary silver aluminium finish. Designed for commercial, educational and retail environments, this versatile lighting solution combines selectable wattage, adjustable colour temperature and DALI dimming to provide efficient, adaptable illumination for modern indoor spaces.

Featuring an innovative 30% upward and 70% downward light distribution, the Vasco EVO creates a balanced lighting environment by illuminating both the working area and surrounding ceiling. The supplied opal diffuser provides smooth, uniform light output, helping to enhance visual comfort in offices, classrooms, meeting rooms and retail premises. A downward-only lighting option is also available, although this changes the overall light output.

With selectable 3000K warm white or 4000K cool white colour temperatures and adjustable power settings between 14W and 32W, this LED linear fitting offers excellent flexibility for different lighting requirements. Delivering approximately 105lm/W with the standard diffuser, efficiency can increase to 150lm/W when fitted with the optional AVAS4/1/UGR diffuser.

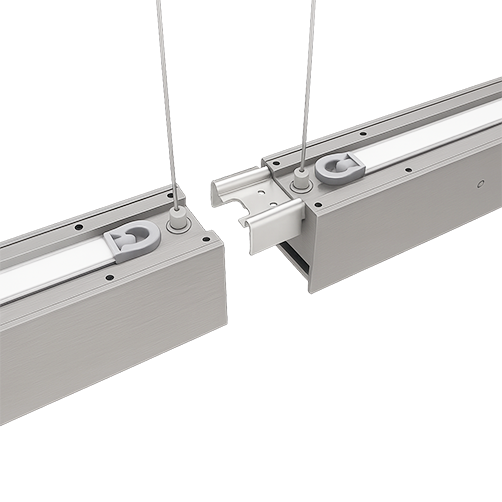

The luminaire is supplied with a 1.5m pre-wired cable, adjustable suspension points and a suspension kit for convenient installation. Optional accessories allow surface or track mounting, making the Ansell Vasco EVO a practical lighting choice for new installations and refurbishment projects.

Key Features

• Bi-directional LED illumination: Standard 30% upward and 70% downward light distribution for balanced ambient and task lighting.
• Selectable colour temperature: Switch between 3000K warm white and 4000K cool white to suit different environments.
• Multi-wattage functionality: Adjustable power settings from 14W to 32W provide flexibility in light output and energy consumption.
• DALI dimmable: Designed for integration with compatible DALI lighting control systems.
• Energy-efficient performance: Approximately 105lm/W with the standard diffuser, increasing to 150lm/W with the optional UGR diffuser.

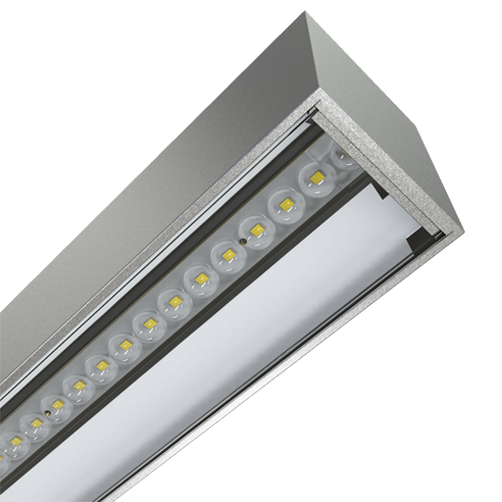

• Uniform light distribution: Supplied with an opal diffuser for smooth, consistent illumination.
• Alternative lighting mode: Downward-only illumination can be selected where required, with a corresponding change in light output.
• Premium aluminium construction: Durable silver housing with a modern, professional appearance.

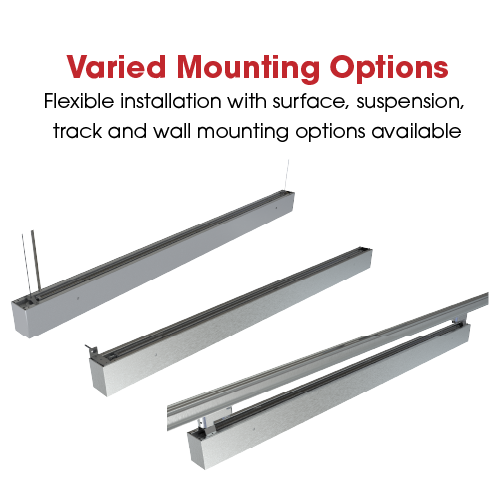

• Flexible mounting: Suitable for suspended installation, with optional surface and track mounting accessories.
• Easy installation: Includes a 1.5m pre-wired cable, adjustable suspension points and suspension kit.

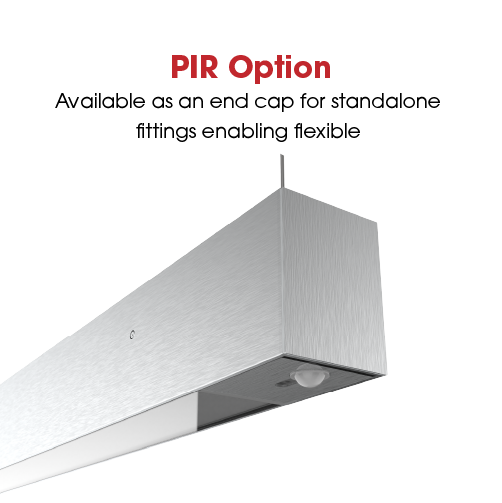

• Optional PIR accessory: Compatible PIR end cap available for occupancy-based lighting control.

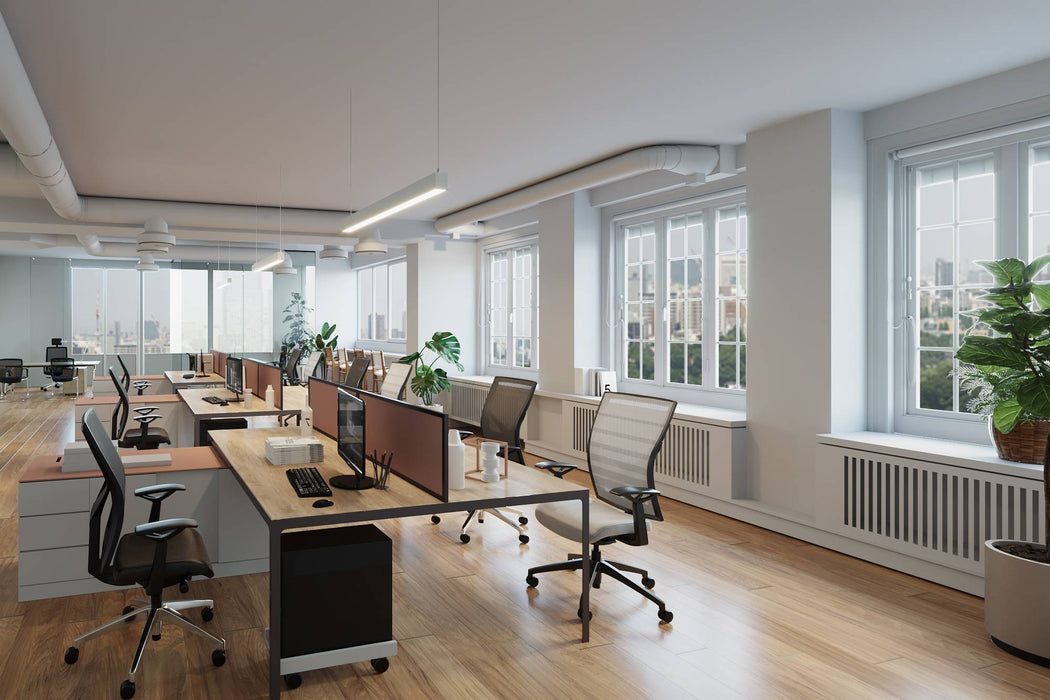

• Commercial applications: Ideal for offices, schools, classrooms, meeting rooms, retail spaces and other indoor environments.

Technical Specifications

• Manufacturer: Ansell Lighting
• Product Range: Vasco EVO
• Product Code: AVAS4/1/S/DD3
• Product Type: Bi-Directional LED Linear Luminaire
• Nominal Length: 4ft / 1200mm
• Colour / Finish: Silver
• Housing Material: Aluminium
• Wattage: 14W - 32W selectable
• Colour Temperature: 3000K / 4000K selectable
• Delivered Lumens: 1500 - 3400lm (4000K, standard diffuser)
• Delivered Lumens with UGR Diffuser: 2000 - 4600lm (4000K)
• Luminous Efficacy: 105lm/W (up to 150lm/W with optional UGR diffuser)
• Dimming: DALI dimmable
• Beam Angle: 110°
• Light Distribution: 30% Upward / 70% Downward
• Distribution Type: Asymmetrical
• Colour Rendering Index: CRI 80
• IP Rating: IP40
• Impact Rating: IK06
• Electrical Class: Class I
• Input Voltage: 220-240V AC
• Frequency: 50/60Hz
• Operating Temperature: -20°C to +45°C
• Mounting Options: Suspended / Surface (optional accessory required for surface mounting)
• Application: Indoor Use

Dimensions

• Length: 1204mm
• Width: 56mm
• Height: 75mm

Compatible Accessories

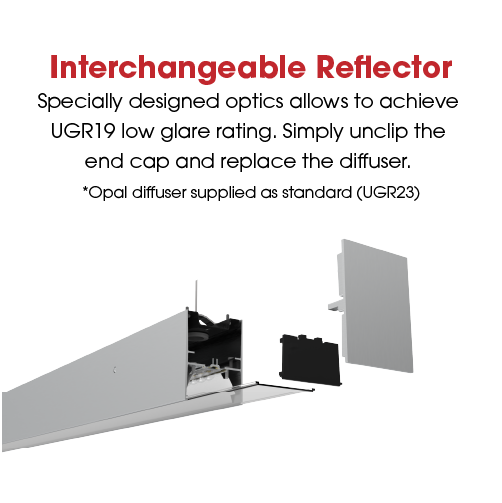

• AVAS4/1/UGR: Optional UGR diffuser for enhanced efficiency and glare control.
• AVAS/WM/1: Surface mounting accessory.
• AVAS/P3/1/*: Track mounting accessories.
• PIR End Cap: Optional occupancy sensing accessory.

Data Sheet:

Download Data Sheet
