Ansell APRIPGXM/1 Prism Pro XM Fire Rated LED Gimbal Downlight
The Ansell APRIPGXM/1 Prism Pro XM Gimbal Downlight combines exceptional flexibility, energy efficiency and fire-rated protection in a premium architectural lighting solution. Featuring a fully adjustable 30° tilt mechanism, selectable wattage and four colour temperature options, this versatile downlight is ideal for residential, hospitality and commercial applications where directional lighting is required.
Designed with Ansell's patent-approved modular construction, the Prism Pro XM features replaceable LED engine and driver components to extend product life and reduce waste. The innovative detachable connector system and fast-fit terminals make installation quick and straightforward, while IP65 protection and fire-rated certification ensure reliable performance in a wide range of environments.
Key Features & Benefits
- IP65-rated fire-rated LED gimbal downlight
- Selectable power settings: 5W or 7W
- Selectable colour temperatures: 2700K, 3000K, 4000K and 6000K
- Dimmable for customised lighting control
- 30° adjustable tilt angle for directional illumination
- Patent-approved modular design with replaceable light engine and driver
- TM66 2.5 assessed for improved product circularity and sustainability
- Innovative detachable connector simplifies first-fix installation

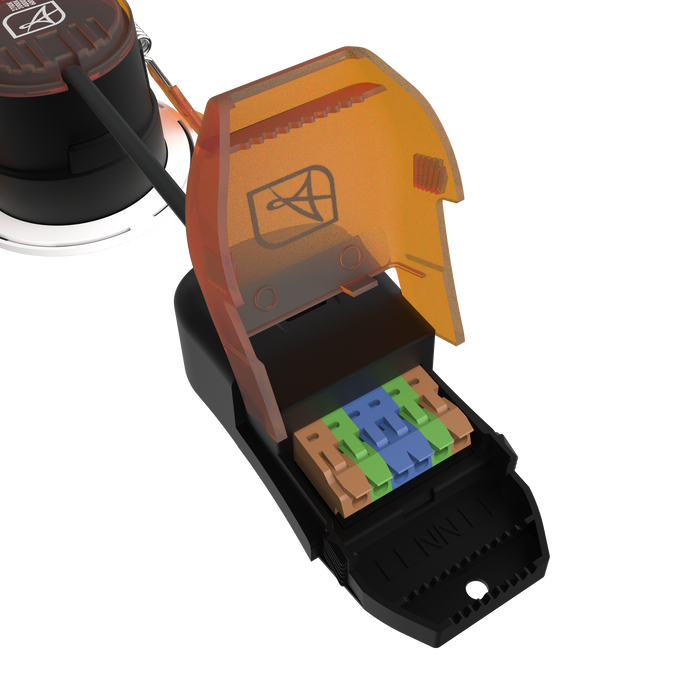

- Fast-fit plug with lever terminals for quick wiring
- Low-profile design suitable for shallow ceiling voids
- Wide 70° beam angle for excellent light coverage
- Suitable for residential and hospitality applications
- Fully tested to Building Regulations Parts B, E and L
- Certified for 30, 60 and 90-minute fire-rated ceiling constructions
Technical Specifications
-
Product Code: APRIPGXM/1
-
Product Range: Prism Pro XM
-
Power Consumption: 5W / 7W Selectable
-
Delivered Lumens: 580lm - 745lm (4000K)
-
Efficacy: Up to 120lm/W
-
Colour Temperatures: 2700K / 3000K / 4000K / 6000K
-
CRI: Ra80
-
Beam Angle: 70°
-
Tilt Adjustment: 30°
-
Input Voltage: 220-240V AC
-
Dimmable: Yes
-
IP Rating: IP65
-
Operating Temperature: -10°C to +35°C
Dimensions
-
Diameter: 88mm
-
Height: 73mm
-
Depth: 69mm
-
Cut-Out Diameter: 72mm
Compliance & Certification
- Fire rated for 30, 60 and 90-minute ceiling constructions
- Complies with Part B Building Regulations
- Tested to Part E (Acoustic Performance)
- Tested to Part L (Energy Efficiency)
- TM66 2.5 Circularity Assessed
Ideal Applications
- Residential properties
- Hotels and hospitality venues
- Bathrooms and shower rooms
- Feature and accent lighting
- Living rooms and kitchens
- Retail display areas
- Reception spaces and lounges
- Architectural lighting schemes
Flexible and Sustainable Lighting Solution
The Ansell APRIPGXM/1 Prism Pro XM Gimbal Downlight delivers exceptional installation flexibility, directional lighting control and sustainable product design. With selectable power and colour temperatures, fire-rated protection and a modular replaceable component system, it is an ideal choice for modern lighting projects that demand both performance and longevity.
